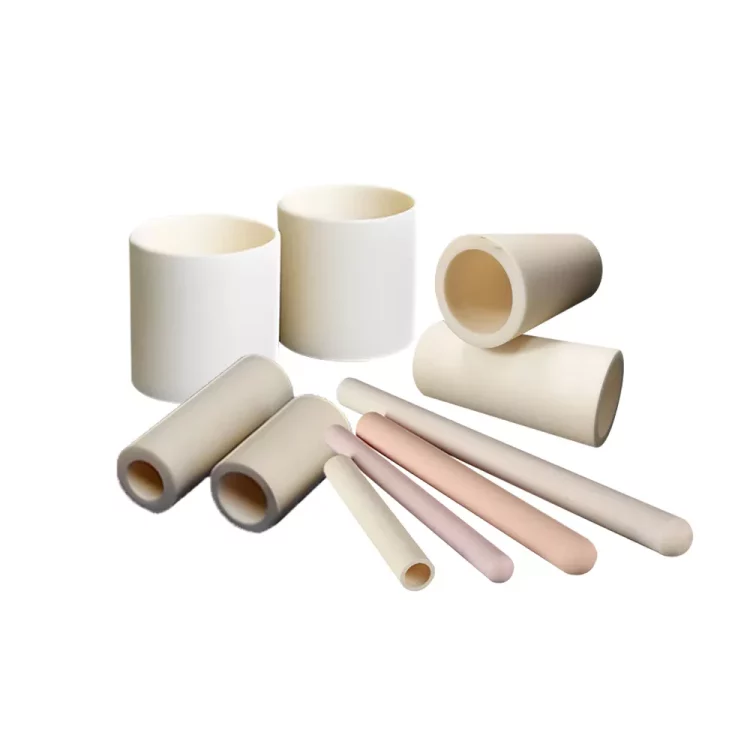

Alumina Tube, Aluminum Oxide Tube,Alumina pipes
|
Product number |
GGS-0-A3 |
|
Size |
Diameter 1-100mm（custom made） |
|
Material |
Alumina、Al2O3 |
|
Density |
3.8~3.9 g/cm3 |
|
Purity |
99.9、99、95… |
∗Specifications and sizes are not uniform, other specifications and sizes can be customized according to needs.
Alumina ceramic tubes are tubular structures made from high-purity alumina through various processing procedures.Alumina tube has excellent mechanical properties such as high hardness and good wear resistance. As for heat resistance, it can withstand high temperatures of 1600°C and maintain stable performance. As a component, it can greatly extend the service life of the equipment.
Our alumina ceramic tube series include non-porous alumina ceramic tubes, single-hole alumina tubes and alumina thermocouple protection tubes. These products are the ideal choice for various industries with their excellent performance and wide range of applications.
Nonporous Alumina Ceramic Tubes：Non-porous alumina ceramic tubes have almost no pores and a density of more than 3.9g/cm³. They have very excellent mechanical strength and can maintain stable performance in the most severe high-temperature environments. Non-porous ceramic tubes are chemically resistant and suitable for extreme chemical environments, and at high temperatures, usually up to 1600°C, and have excellent electrical insulation properties. These characteristics make them ideal for industrial equipment, electronic components and other equipment.
Alumina Single Bore Tubes：Our single hole alumina tubes are simple in design. This type of ceramic tube has only one through hole inside. It has excellent properties such as high temperature resistance and corrosion resistance, and is suitable for a variety of uses, such as laboratory equipment, thermocouple protection, heating elements and mechanical parts. Ceramic tubes come in a variety of sizes, ranging from 1mm to 100mm in diameter, and can be customized in size and purity according to your needs.
Alumina Thermocouple Protection Tubes：Thermocouple protection tube is an alumina ceramic tube designed specifically for protecting thermocouples. It can operate stably for a long time in extreme high temperature environments. It also has high temperature stability, wear resistance and oxidation resistance, which can effectively protect thermocouples and increase their service life.The protective tubes we produce usually have a purity of 99.8%, and the products contain only a very small amount of flux (silica concentration is extremely low, less than 100 ppm). While protecting the precious metal platinum thermocouples from being contaminated by silica, the alumina Superior thermal conductivity also ensures accurate temperature measurement.
Ceramic tubes for furnaces: This kind of ceramic tubes are widely used in various high-temperature furnace equipment and heat treatment applications to help with sintering, synthesis and other processes. Common application equipment include heat treatment furnaces, high-temperature experimental furnaces, atmosphere furnaces, vacuum furnaces, melting furnaces, etc. This kind of Ceramic tubes need to withstand extreme high temperatures. Our ceramic tubes for furnaces can withstand temperatures of 1600-1800 degrees Celsius, which can very effectively improve the efficiency and service life of the furnace. At the same time, the price is advantageous, which can effectively help you reduce costs.
The alumina ceramic tubes produced by Gorgeous strictly follow reasonable dimensional tolerances and quality assurance, and present you with the most competitive prices. Typical alumina ceramic tube diameters are between 1mm and 100mm. In addition, you can also send us drawings to customize the alumina ceramic tubes of the size or special shape you require.
Alumina Ceramic Tube Specifications
|
Characteristic |
Unit |
Value |
||
|
Purity |
– |
99.8 |
99 |
95 |
|
Density |
g/cm3 |
3.92 |
3.89 |
＞3.6 |
|
Bending Strength |
Kpsi |
60 |
55 |
52 |
|
Compressive Strength |
Kpsi |
370 |
370 |
300 |
|
Operating Temperature |
℃ |
1750 |
1500 |
1250 |
|
Dielectric Constant |
– |
9.8 |
9.7 |
9 |
*The table above only shows typical properties of common alumina materials. The properties of custom alumina parts will vary depending on the purity and process selected. We can provide custom alumina tube services based on your specifications.
Alumina tube uses
- Semiconductor manufacturing:Alumina tube CVD and PVD equipment.
- Optical Instruments:Aluminum oxide tubes for precision components and optical paths.
- Electrical Insulation Tube：Excellent electrical insulation properties allow alumina tubes to be used as insulating protective tubes for electrical equipment and electronic components.
- Thermal Management Components:Used in electronic equipment with heat dissipation and insulation requirements, as a thermal management component to help components dissipate heat and provide protection.
- Reactor and Reaction Tube:Alumina tubes can be used as reaction tubes for reactions, and their corrosion resistance can maintain stability.
- Bushings and Bearings:Aluminum oxide tubes serve as bushings and bearings, providing wear and heat resistance protection.
- Mechanical Structural Parts:Alumina tubes can be used as structural parts of mechanical equipment in industry.
Why choose us?
We have a professional high-end ceramic production factory with 15 years of production experience, and can help you solve various common problems. We only produce high-quality advanced ceramics, using the best raw materials and equipment, and the products produced are certified by the 2011/65/EU RoHS international standard;
In the production process of our alumina tubes, we strictly treat every process to ensure product quality at all times. After the product is made, we will conduct multiple process quality inspections, and we will use SEM and XRD to conduct detailed inspections of the microstructure and crystal structure of the product.
In terms of dimensional accuracy, we will use equipment such as 3D measuring instruments to detect whether the dimensional accuracy of ceramic tubes meets the standards. For high-precision ceramic parts, we achieve the smallest and most reasonable tolerance to ensure that your needs are met;
A group of R&D teams with rich professional knowledge are at your service at any time, enjoying a good reputation at home and abroad, and are appreciated by many partners;
Some products do not have a minimum order quantity. You are welcome to call us for inquiries. If you need free alumina tube samples, please contact us.
Package
We carefully package each product to prevent the goods from being damaged during transportation. We ensure that the Alumina pipes delivered to you are of high quality and complete.
Partial product display
Disclaimer: Based on our own production experience, we show you some basic parameters of typical alumina tubes measured under specific conditions. These values are for purchase reference only. Depending on customized conditions, the parameters and specifications of alumina tubes will be slightly different.
|
product name |
Image |
|
Custom 99% Al2o3 Alumina Ceramic Plunger Tube Material purity: 99% alumina Inner diameter: 5 mm - 50 mm Outer diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 9 Mohs hardness Density: 3.8 - 3.9 g/cm³ Compressive strength: ≥ 2500 MPa Thermal conductivity: 25 - 30 W/m·K Maximum operating temperature: 1700°C |
|
|
Custom High 95% Al2o3 Alumina Ceramic Insulator Tube Nozzle Material purity: 95% alumina Inner diameter: 5 mm - 50 mm Outer diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
95% High Purity Insulation Alumina Ceramic Sleeve Tube Material purity: 95% alumina Inner diameter: 5 mm - 50 mm Outer diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
High Temperature 95-99.7% Alumina Al2o3 Ceramic Tube Pipe Material purity: 95% - 99.7% alumina Inner diameter: 5 mm - 50 mm Outer diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1500°C - 1750°C |
|
|
Wear Resistant Alumina Ceramic Product Sleeve Pipe Tube Material purity: 95% - 99% alumina Inner diameter: 5 mm - 50 mm Outer diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
|
Thermocouple Protection 96 Al2o3 Alumina Ceramic Tube Material purity: 96% alumina Inner diameter: 2 mm - 50 mm Outer diameter: 4 mm - 100 mm Length: 50 mm - 1000 mm Hardness: 8 Mohs hardness Density: 3.7 - 3.8 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
|
Heat Resistant Custom 95 99.7% Alumina Ceramic Tube Material purity: 95% - 99.7% alumina Inner diameter: 5 mm - 50 mm Outer diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C - 1750°C |
|
|
High Purity 99.7% Alumina Al2o3 Ceramic Insulation Tube Material purity: 99.7% alumina Inner diameter: 2 mm - 50 mm Outer diameter: 4 mm - 100 mm Length: 50 mm - 1000 mm Hardness: 9 Mohs hardness Density: 3.8 - 3.9 g/cm³ Compressive strength: ≥ 2500 MPa Thermal conductivity: 25 - 30 W/m·K Maximum operating temperature: 1750°C |
|
|
Electric Industry High Temperature Insulation 96% Al2o3 Alumina Ceramic Tube Material purity: 96% alumina Inner diameter: 2 mm - 50 mm Outer diameter: 4 mm - 100 mm Length: 50 mm - 1000 mm Hardness: 8 Mohs hardness Density: 3.7 - 3.8 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
|
High Temperature Electric Insulator 95% Alumina Ceramic Tube Pipe Material Purity: 95% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
High Strength Injection Molding 95% Alumina Ceramic Tube Material purity: 95% – 99.7% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1500°C - 1750°C |
|
|
High Temperature 95 99.7% Al2o3 Alumina Ceramic Tube Pipe Material Purity: 96% Aluminum Oxide Inner diameter: 2 mm - 50 mm Outside diameter: 4 mm - 100 mm Length: 50 mm - 1000 mm Hardness: 8 Mohs hardness Density: 3.7 - 3.8 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
|
Electric Thermocouple Protection Alumina Ceramic Insulator Tube Material Purity: 95% - 99.7% Alumina Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1500°C - 1750°C |
|
|
High Temperature Alumina Ceramic Burner Tube Pipe Nozzle Material Purity: 95% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
High 95 Alumina Ceramic Insulator Parts Tube Material Purity: 96% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.7 - 3.8 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
|
Heat Resistant Insulator Al2o3 Alumina Ceramic Bush Tube Material Purity: 95% - 99.7% Alumina Inner diameter: customized according to customer requirements Outer diameter: customized according to customer requirements Length: customized according to customer requirements Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1500°C - 1750°C |
|
|
Custom processed insulator Al2o3 alumina ceramic tube Material Purity: 95% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
95 Alumina Al2o3 Ceramic Cylinder Tube Material Purity: 99% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 9 Mohs hardness Density: 3.8 - 3.9 g/cm³ Compressive strength: ≥ 2500 MPa Thermal conductivity: 25 - 30 W/m·K Maximum operating temperature: 1700°C |
|
|
Custom 99% Al2o3 Alumina Ceramic Tube For Heat Element Material Purity: 95% - 99% Alumina Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
|
Wear Resistant Alumina Al2o3 Ceramic Tube Material Purity: 95% Aluminum Oxide Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
Industrial 95 Alumina Ceramic Tube Pipe Material Purity: 95% Aluminum Oxide Inner diameter: customized according to customer requirements Outer diameter: customized according to customer requirements Length: customized according to customer requirements Hardness: 8 Mohs hardness Density: 3.6 - 3.7 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 25 W/m·K Maximum operating temperature: 1500°C |
|
|
Customized 95% alumina ceramic parts sleeves Material Purity: 95% - 99.7% Alumina Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 1000 mm Hardness: 8 - 9 Mohs hardness Density: 3.6 - 3.9 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1500°C - 1750°C |
|
|
Pink 95% 96% Al2o3 Insulating Alumina Ceramic Pipe Tube Material Purity: 95% - 96% Alumina Inner diameter: 5 mm - 50 mm Outside diameter: 10 mm - 100 mm Length: 20 mm - 500 mm Hardness: 8 Mohs hardness Density: 3.6 - 3.8 g/cm³ Compressive strength: ≥ 2000 MPa Thermal conductivity: 20 - 30 W/m·K Maximum operating temperature: 1600°C |
|
