High strength, high wear resistance, electrical insulation, high temperature resistanceAlumina Substrate ， Alumina Ceramic Substrate
|
Product number |
GGS-0-A10 |
|
Size |
custom made |
|
Material |
Alumina、Al2O3 |
|
Density |
3.8~3.9 g/cm3 |
|
Purity |
99.5，96 |
Alumina substrate is a new type of precision ceramic made of aluminum oxide. It has a wide range of uses, such as hybrid integrated circuit interconnect substrates, optoelectronic device substrates, chip capacitors, sensors and other electronic industries. Alumina substrates that have undergone a polishing process can be suitable for multi-layer thin film technology.
GORGEOUS is a manufacturer specializing in the manufacture of precision ceramics, producing high-quality advanced ceramics. We provide a variety of substrate ceramics such as alumina substrates, aluminum nitride substrates, and beryllium oxide substrates.
Neat and smooth: Our products have neat smoothness and low porosity (warpage ≤ 0.003/mm). Higher surface flatness can increase the contact area between the chip and the alumina substrate, providing reliable support and heat transfer for precision circuit components.
Fine workmanship: We have fine workmanship and control the product tolerance to the minimum. The same model of ceramic substrates has almost no difference in outline and thickness.
Powerful heat dissipation: Our alumina substrate has good heat dissipation capacity, which can reduce the heating of circuit components to a certain extent.
Excellent insulation: Alumina substrate has good electrical insulation, high surface resistivity and volume resistivity, and small dielectric constant, which is very suitable for the electrical industry.
Thermal conductivity: Alumina substrate is often used in applications that require good thermal management. Our products have excellent thermal conductivity, which can reach 30-35W/(m·k). They can conduct heat well and help electronic devices maintain stable performance.
We provide customized alumina substrate services. The size, thickness, and purity (96-99.9) can all be customized according to your needs. The following are some common alumina substrate sizes for your reference (customized products do not have specific sizes)
|
Square-Size (inches) |
Size(mm) |
|
1×1 |
25.4×25.4 |
|
2×2 |
50.8×50.8 |
|
3×3 |
76.2×76.2 |
|
4×4 |
101.6×101.6 |
|
5×5 |
127×127 |
|
6×6 |
152.4×152.4 |
|
8×8 |
203.2 ×203.2 |
|
Round- Diameter (inches) |
Size(mm) |
|
1 |
25.4 |
|
2 |
50.8 |
|
3 |
76.2 |
|
4 |
101.6 |
|
6 |
152.4 |
|
8 |
203.2 |
*Customized product sizes are for reference only. The specific sizes are based on your needs.

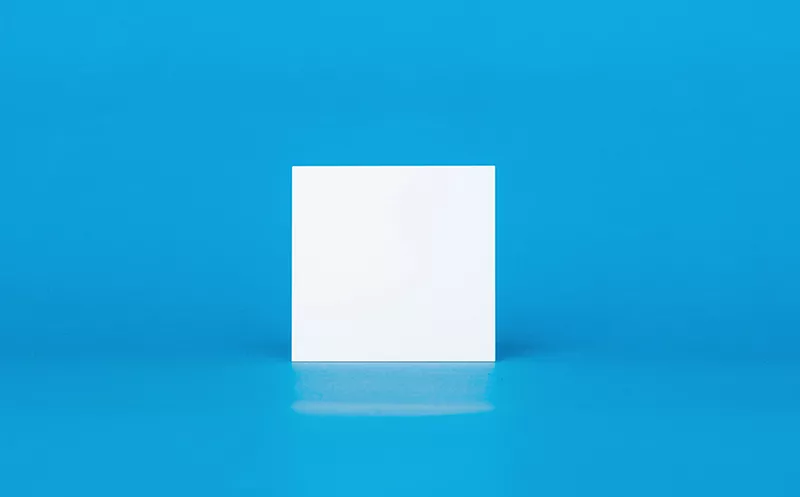

Alumina Square Substrate
Alumina round substrate
Superior performance of alumina substrate
|
Characteristic |
Alumina Substrate |
||
|
Purity |
96% |
99.9% |
|
|
Density |
3.7 |
3.9 |
|
|
Size |
custom made |
custom made |
|
|
Thickness tolerance |
±0.02mm (＜3 square inches) ±0.05mm (≥3 square inches) |
||
|
Warped |
≤0.003/mm |
||
|
Surface roughness |
＜Ra0.05 |
＜Ra0.01 |
|
|
Volume resistivity |
25℃ |
≥1×10-14 Ω.cm |
≥1×10-14 Ω.cm |
|
300℃ |
≥1×10-14 Ω.cm |
≥1×10-14 Ω.cm |
|
|
Breakdown strength |
D.C |
≥20KV/mm |
≥30KV/mm |
*The above data are measured under specific conditions, and the data under different conditions may be slightly different.
Why choose us?
We have more than 15 years of experience in advanced ceramic production. We have our own factory and can provide you with alumina substrate in a timely manner.
Our products undergo multiple inspection processes to ensure that the alumina substrate delivered to you is of high quality and superior performance.
We have complete after-sales service. If your product is damaged during transportation, we will give you corresponding compensation. If the product has serious quality problems, we will also actively communicate with you and make compensation.
Packaging
We will carefully package your products to ensure that the alumina substrate delivered to you is of high quality and in good condition. Contact us now!
