GORGEOUS can customize your own power Feedthrough, which is specially designed to overcome the power transmission in vacuum environment!

power feedthrough

Product Highlights:

  • Good vacuum tightness: using advanced sealing technology, ultra-high voltage (UHV) compatible, ensuring leak-free and interference-free power transmission in a vacuum environment.
  • Rich pairing specifications: designed for high-voltage applications, comprehensive voltage, current and conductor configurations. A variety of voltage levels are available, and single-core and multi-core solutions can be customized!
  • High-quality materials: ceramics with high insulation performance such as alumina can be selected, and brazed with metals or alloys such as stainless steel, nickel, and copper.
  • Flexible configuration: In addition to options such as voltage and conductor, we can also customize a variety of flange interfaces to make your vacuum equipment seamlessly connected.
  • Compact structural design: We can provide you with a more perfect design solution, and the connectors we produce can be seamlessly integrated with the vacuum chamber. The compact design not only ensures the integration of the equipment, but also effectively reduces the cost.




Power Feedthrough Product Showcase

It doesn’t matter if you don’t see the product you want. GORGEOUS provides you with exclusive power feedthrough solutions. Contact us now!

Power Feedthrough 5000 Volts, 1-180 Amps

Power feedthrough rated to 5000V (5kV) for up to 12 conductors. Available in weldable, CF and KF flange, subplate and NPT mount versions.

5000V - 180A - Weldable

Rated Current

180A

Conductor Material

Customized Products

Mounting Type

Weldable

Pin Count

1

Rated Voltage

5K

5kV Solderable Vacuum Power Feedthrough for Secure Electrical Connections

The power feedthroughs are rated to 5000V. The various conductors are insulated with alumina and rated up to 180A. They are designed to be welded into suitable through holes in flanges.



5000V - 180A  - NPT

Rated Current

180A

Conductor Material

Customized Products

Mounting Type

NPT

Rated Voltage

5K

5kV NPT Vacuum Power Feedthrough for High-Voltage Applications

The power feedthroughs are rated to 5000V. Various conductors are insulated with alumina and rated up to 180A. NPT male threads are designed for use in high vacuum environments when properly sealed with tape, grease or wax.



5000V - 180A - KF

Rated Current

180A

Conductor Material

Customized Products

Mounting Type

KF

Pin Count

3

Rated Voltage

5K

5kV KF Flange Vacuum Power Feedthrough for Reliable Energy Transfer

These power feedthroughs are rated for 5000 V. The various conductors are insulated with alumina and rated up to 180 A. The KF flange is sealed with a centering and O-ring combination (not supplied) making it compatible with high vacuum.



5000V - 180A - Baseplate

Rated Current

180A

Conductor Material

Customized Products

Mounting Type

Baseplate

Pin Count

1

Rated Voltage

5K

5kV Baseplate Mounted Power Feedthrough for Vacuum Systems

The power feedthroughs are rated to 5000V. The various conductors are insulated with alumina and rated up to 180A. They are designed to fit into a 1.0” backplane hole and operate in high vacuum conditions.



Power Feedthrough 12,000 Volts, 3.6-185 Amps

Rated at 12,000V (12kV) for power feedthrough of up to 12 conductors. Available in weldable, CF and KF flange and baseplate mount versions.

12000V - 185A  - CF

Rated Current

180A

Conductor Material

Customized Products

Mounting Type

CF

Pin Count

1

Rated Voltage

12K

12kV CF Flange Power Feedthrough for Ultra-High Vacuum Systems

The power feedthroughs are rated to 12000V. The various conductors are insulated with alumina and rated up to 185A. When using CF flanges, they are bakeable to 450°C and are UHV compatible.



12000V - 185A - KF

Rated Current

185A

Conductor Material

Customized Products

Mounting Type

KF

Pin Count

1

Rated Voltage

12K

12kV KF Flange Power Feedthrough for High-Voltage Vacuum Applications

The power feedthroughs are rated to 12000 V. The various conductors are insulated with alumina and rated up to 185 A. The KF flanges are sealed with a centering and O-ring combination (not supplied) making them compatible with high vacuum.



12000V - 185A - Weldable

Rated Current

185A

Conductor Material

Customized Products

Mounting Type

Weldable

Pin Count

1

Rated Voltage

12K

12kV Solderable Power Feedthrough for Vacuum and High-Voltage Applications

The power feedthroughs are rated to 12000V. The various conductors are insulated with alumina and rated up to 185A. They are designed to be welded into suitable through holes in flanges.



12000V - 150A - Baseplate

Rated Current

150A

Conductor Material

Customized Products

Mounting Type

Baseplate

Pin Count

1

Rated Voltage

12K

12kV Baseplate Mounted Power Feedthrough for High-Voltage Vacuum Systems

The power feedthroughs are rated to 12000V. The various conductors are insulated with alumina and rated up to 150A. They are designed to mount to a 1.0” backplane hole and operate in high vacuum conditions.



12000V - 180A - Weldable

Rated Current

180A

Conductor Material

.25”  Copper

Mounting Type

Weldable

Pin Count

1

Rated Voltage

12 KV

Power Feedthrough, 12,000 Volts, 180 Amps, 1 Pin, 0.25″ Copper Conductor, 0.684″ Diameter Stainless Steel Weld Adapter for High-Voltage Applications

This is a power feedthrough for high voltage applications, rated up to 12,000V and 180A, with a 0.25″ copper conductor and 0.684″ diameter stainless steel welding adapter, and an alumina ceramic insulation section, ideal for UHV rated environments, and can withstand 450°C bakeout.



12000V - 180A - CF

Rated Current

180A

Conductor Material

.25 Copper

Mounting Type

1.33” CF

Pin Count

1

Rated Voltage

12 KV

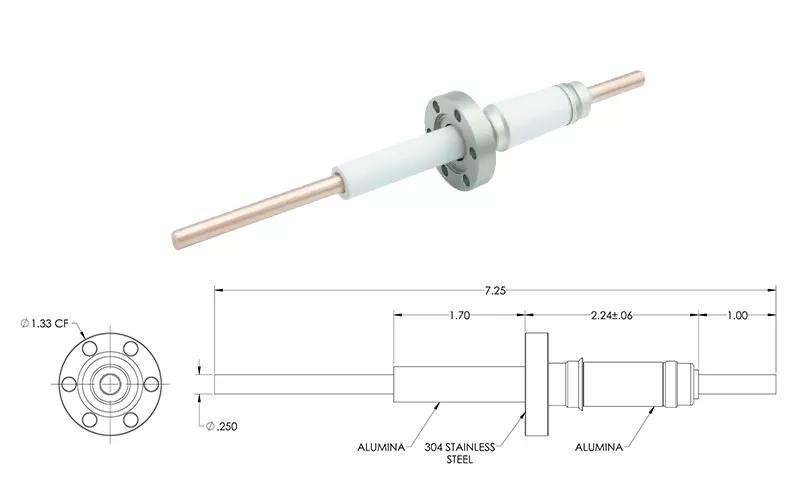

Power Feedthrough, 12,000 Volts, 180 Amps, 1 Pin, 0.25″ Copper Conductor with 1.33″ Conflat Flange for Vacuum and High-Voltage Applications

This is a power feedthrough for high voltage environments, rated at 12,000 volts and 180 amps, equipped with 0.25″ copper conductor and 1.33″ conflat flange, the insulation part uses alumina ceramic, which is designed for UHV level and supports 450°C high temperature baking to ensure stable vacuum sealing performance.



12000 V - 180 A - CF

Rated Current

180A

Conductor Material

.25 Copper

Mounting Type

2.75’’ CF

Pin Count

2

Rated Voltage

12 KV

Power Feedthrough, 12,000 Volts, 180 Amps, 2 Pins, 0.25″ Copper Conductor with 2.75″ Conflat Flange for High-Voltage and Vacuum Applications

This is a power feed-through for high power applications, supporting 12,000 volts and 180 amps, with two 0.25″ copper conductors, an integrated 2.75″ conflat flange, and alumina ceramic insulation. Its UHV-rated design can withstand high temperature baking to 450°C and has excellent vacuum sealing and power transmission performance.



12000 V - 180 A - CF

Rated Current

180A

Conductor Material

.25 Copper

Mounting Type

2.75’’ CF

Pin Count

3

Rated Voltage

12 KV

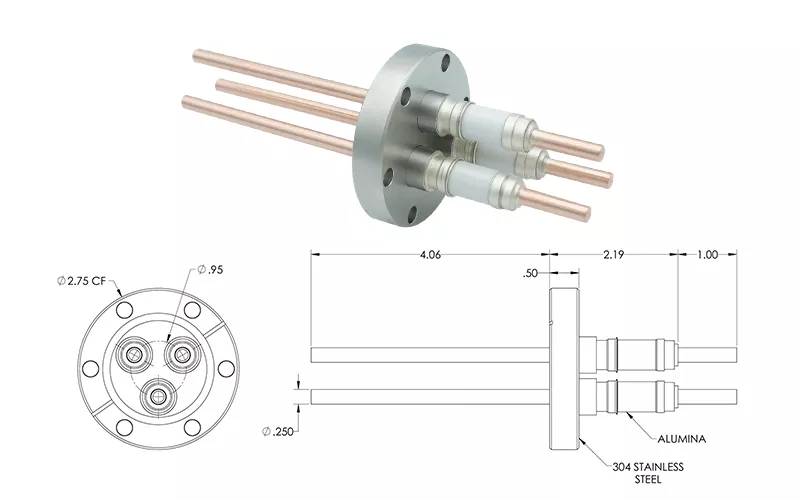

Power Feedthrough, 12,000 Volts, 180 Amps, 3 Pins, 0.25″ Copper Conductor with 2.75″ Conflat Flange for High-Voltage and Vacuum Applications

Designed for high power applications, this power feedthrough is rated for 12,000 volts and 180 amps and contains three 0.25″ copper conductors with a 2.75″ conflat flange and is insulated with high performance alumina ceramic. Its UHV-rated construction supports bakeout up to 450°C, ensuring excellent sealing and current conduction stability.



12000V - 180A - CF

Rated Current

180A

Conductor Material

.25 Copper

Mounting Type

2.75’’ CF

Pin Count

4

Rated Voltage

12 KV

Power Feedthrough, 12,000 Volts, 180 Amps, 4 Pins, 0.25″ Copper Conductors with 2.75″ Conflat Flange for High-Voltage and Vacuum Applications

This is a high power feedthrough that supports 12,000 volts and 180 amps with four 0.25″ copper conductors and a 2.75″ conflat flange with alumina ceramic insulation. It is designed to meet UHV grade requirements and withstand high temperature bake-out to 450°C, providing reliable vacuum sealing and stable power transmission capabilities.






Power Feedthrough Applications



  • Vacuum furnace heating element power supply
  • Plasma processing equipment
  • Cathode arc deposition system
  • Ion beam sputtering equipment
  • Electron beam evaporation source
  • High temperature material sintering system
  • Semiconductor manufacturing equipment
  • Particle accelerator
  • Ultra-high vacuum experimental device
  • Inductive heating system
