Are you hesitating between silicon carbide and aluminum oxide abrasives? Choosing the right abrasive material will directly affect the efficiency and quality of your project. This guide will fully introduce the differences between these two abrasive materials!
Quick Links
- Understanding Silicon Carbide
- Understanding Alumina
- Silicon Carbide Vs Aluminum Oxide
- How to Choose Between Silicon Carbide and Alumina?
If you don’t have a lot of time to read the article, we have prepared a quick FAQ for you, which contains most of the user’s questions. We hope it can help you quickly!

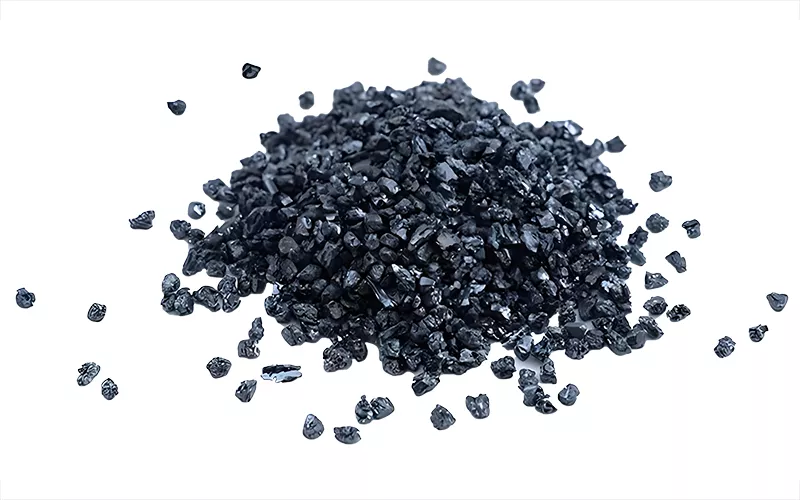

Understanding Silicon Carbide
First, let us understand silicon carbide. Silicon carbide is an advanced abrasive material with very superior physical and chemical properties. The following will give you a comprehensive introduction from the perspectives of hardness, high temperature resistance, conductivity and applicable scenarios!
Basic Characteristics
Hardness:
The most outstanding characteristic of silicon carbide is its high hardness. Its Mohs hardness is 9.5, which is second only to diamond. This high hardness combined with its naturally sharp crystal structure gives it a very superior cutting ability. If you have silicon carbide abrasives around you, you will find that it can quickly and efficiently remove waste from the surface of the product.
High temperature resistance:
Silicon carbide is also very good in heat resistance. Even in a high temperature environment of 1300℃, it can still maintain very stable performance. There is a protective silicon dioxide film on its surface, which can effectively prevent further oxidation. If you have an application that requires grinding at high temperature, you can consider it.
Conductivity:
Silicon carbide has unique conductive properties and is a wide bandgap semiconductor material. This property can not only be used in the field of grinding, but also plays an important role in the manufacture of some specific electronic components.
Advantageous Application Scenarios
Grinding hard and brittle materials - ceramics, glass
By understanding the characteristics of silicon carbide, you will find that silicon carbide is very suitable for grinding some hard and brittle materials, such as ceramics and glass. Its strong hardness and sharp crystal structure can help you obtain the ideal surface finish.
Grinding non-metallic materials - fiberglass, plastic
If you want to process non-metallic materials, such as fiberglass and plastic, silicon carbide can also help you. Its sharp cutting edge will not generate too much heat during the grinding process, and it can remove the surface waste of the material very efficiently.
High-precision surface treatment
If you need extremely precise surface treatment, then the uniform crystal structure and stable cutting performance of silicon carbide can help you solve the problem! Especially in the processing of some high-precision optical devices and precision mechanical parts, silicon carbide has excellent performance!
Limitations
However, silicon carbide also has some limitations. The first is its durability. Ceramic materials are generally brittle structures, and silicon carbide is also a relatively brittle crystal structure. It is easy to wear too quickly when processing some high-toughness materials, which will greatly increase your cost of use.
From a cost perspective, the manufacturing process of silicon carbide is relatively complicated, which will cause its price to be higher than traditional abrasives. You may need to reasonably consider this factor in the project budget.
In terms of environmental health, due to the high grinding efficiency of SiC, a large amount of dust particles may be generated during the grinding process. In addition to causing environmental problems, inhalation will be detrimental to human health. Therefore, you need to pay special attention to wearing protective masks.
In terms of usage restrictions, silicon carbide is not suitable for all occasions. If you want to process certain metal materials, especially high-toughness steel, silicon carbide is likely to wear too quickly, seriously affecting your processing efficiency and cost expenses. You need to carefully choose a reasonable abrasive according to the specific application!

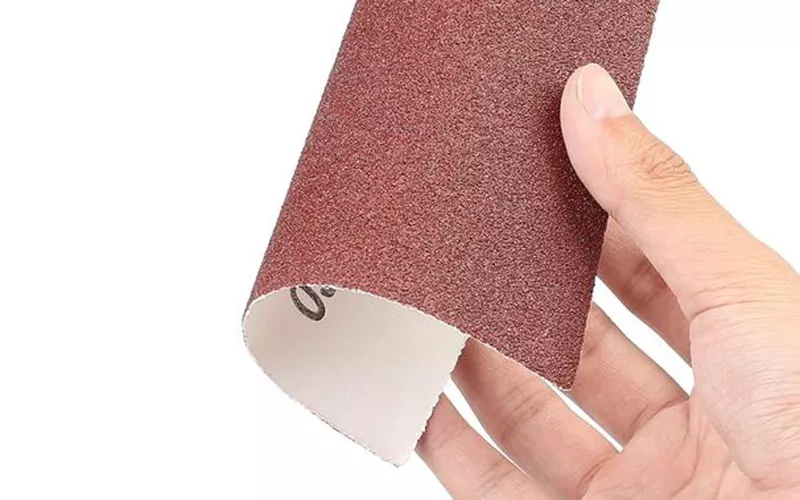

Understanding Alumina
After discussing silicon carbide, the next abrasive to be introduced to you is aluminum oxide, which is one of the most widely used abrasive materials in modern industry. The following will explain to you one by one the hardness, wear resistance, corrosion resistance, and the application of different colors of aluminum oxide abrasives.
Basic Properties
Hardness
The Mohs hardness of aluminum oxide is 9.0, which is slightly lower than that of silicon carbide, but it has better toughness. This toughness enables it to maintain long-term effective cutting ability during the grinding process. If you have aluminum oxide grinding around you, when the aluminum oxide particles wear, you will find that it generates new cutting changes instead of completely breaking.
Wear resistance
In terms of wear resistance, aluminum oxide shows excellent performance. Its particles show the characteristic of “self-sharpening” during use, and can continuously produce new cutting edges during continuous wear, thus extending the service life.
Corrosion resistance
Another major advantage of aluminum oxide is its stable chemical properties. It hardly reacts with any substance at room temperature and can maintain good stability even at high temperatures, which greatly increases its durability.

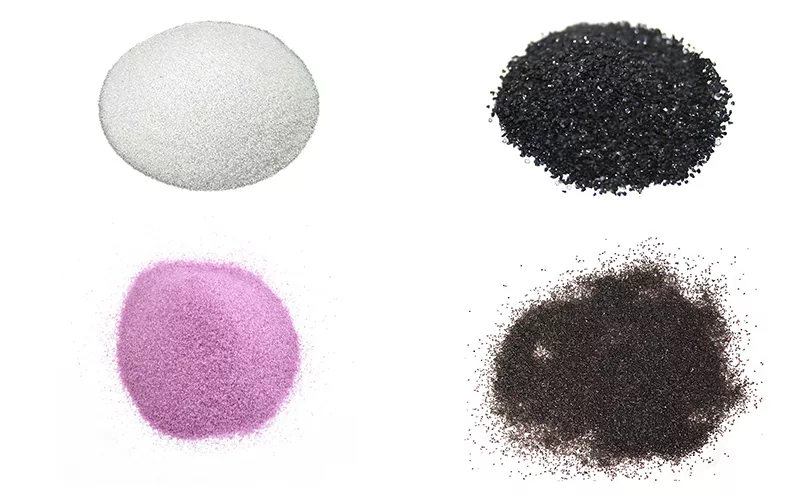

Different colors
Alumina abrasives come in a variety of colors, such as white, pink, brown, and blue, and each color has a slightly different purpose.
Brown corundum abrasive: Brown corundum is made from molten bauxite in industry. Compared with other colors of abrasives, it has better wear resistance and toughness. It is mainly used for coarse grinding (i.e. initial grinding of materials to remove waste).
White alumina abrasive: The purity of white corundum is above 99%. It has high hardness but lower toughness. Unlike brown corundum, white corundum is gentler and suitable for fine grinding and polishing.
Pink alumina abrasive: The pink color of chrome corundum is the result of a small amount of chromium added to white corundum. This abrasive is softer and suitable for polishing some softer woods.
Advantageous Application Scenarios
Grinding metal materials – steel
In the field of metal material processing, alumina performs better. Especially for processing various types of steel, alumina and its long-lasting cutting ability and stable wear characteristics can help you obtain more ideal processing results. Whether it is processing ordinary carbon steel or stainless steel, it can give a very good surface treatment effect.
Grinding wood
Wood surface treatment is another area where aluminum oxide excels. Its relatively gentle and long-lasting abrasive properties are very suitable for wood processing. If you use aluminum oxide sandpaper of different grits to gradually sand the wood from rough to fine polish, you can get a perfect wood surface.
Universal Abrasive Material
Alumina is a universal abrasive material. It can be found in hardware tools in daily life and professional industrial processing. Alumina has a very high cost performance. Its reasonable price and superior performance make many engineers choose it as the preferred abrasive material.
limitation
The cutting ability of alumina is lower than that of silicon carbide. Especially when processing some hard materials such as glass and ceramics, its efficiency will be significantly reduced. If you are pursuing efficiency, you should consider materials such as silicon carbide.
Surface accuracy is another factor you need to consider. Although alumina can provide you with a good surface finish, in some extremely high-precision surface treatments, alumina may not be able to meet the most stringent requirements.

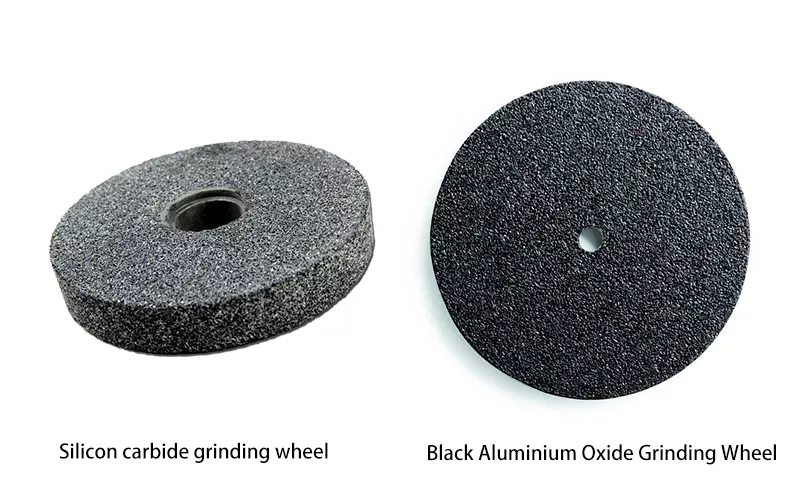

Silicon Carbide Vs Aluminum Oxide
In order to help you choose abrasive materials more accurately, we will deeply analyze the advantages and disadvantages of silicon carbide and aluminum oxide in different applications such as metal, wood, and special materials.
|
characteristic |
Aluminum oxide abrasive |
Silicon carbide abrasive |
|
hardness |
Mohs hardness 9 (close to diamond) |
Mohs hardness 9.5 (one of the hardest abrasives) |
|
Applicable Materials |
Medium to hard materials: wood, metal, plastic, ceramic |
High hardness materials: ceramics, carbide, glass, stone |
|
Color and Type |
Various colors (white, pink, brown, blue) |
Usually black or green |
|
Specific Type |
|
—
|
|
Wear resistance |
Better (especially brown alumina) |
Higher, but wears faster |
|
Environmental protection |
Generates relatively less dust |
There are environmental problems and more dust is generated |
|
How to use |
Typically used in dry and wet grinding processes |
Suitable for wet and dry grinding, but protective measures should be taken |
|
Use in combination |
Used in combination with silicon carbide, it can improve the grinding effect |
Used in combination with alumina, each brings out its own advantages |
|
Recommended use |
-Fine grinding and polishing -Smooth surface treatment |
-Heavy-duty, high-efficiency grinding -Non-metal material processing |
|
Economical |
Relatively economical, especially brown alumina |
Higher cost than alumina |
|
Application Examples |
-Wood furniture polishing -Metal deburring |
-Carbide cutting -Ceramic surface treatment |
Metalworking
High-strength metals
Aluminum oxide performs better when processing high-strength metals because it has higher toughness and the ability to cut continuously, especially when processing hardened steel and stainless steel. In contrast, although silicon carbide has a stronger initial cutting ability, its continuous cutting ability is weaker, and its faster wear will cause you to replace it frequently, increasing your cost.
Aluminum oxide generally performs better when processing high-strength metals. Its toughness allows it to maintain its cutting ability continuously, especially when processing hardened steel and stainless steel. In contrast, although silicon carbide has a stronger initial cutting force, it will wear faster, resulting in frequent replacement and increasing your operating costs.
Soft metals
For soft metals, such as aluminum and copper, both silicon carbide and aluminum oxide can do the job. Silicon carbide is sharper and more efficient, but it may damage the surface flatness of soft metals and leave deep scratches. Aluminum oxide is gentler and can make the surface more delicate, but it is less efficient.
Cost-Benefit Analysis
From a long-term use perspective, aluminum oxide can provide you with better cost-effectiveness in the field of metal processing. Silicon carbide has high efficiency in simple processing, but it may increase your costs as it wears out over time.
Wood Processing Field
Hardwood
In hardwood processing, the durability advantage of aluminum oxide is particularly obvious. It can maintain long-lasting and stable cutting ability without excessive loss of wood fibers. For hard woods such as oak and maple, aluminum oxide is your best choice.
Cork
In cork processing, the gentle cutting characteristics of aluminum oxide are more suitable. The sharpness of silicon carbide is likely to damage the wood fibers of cork. Therefore, when processing cork, using aluminum oxide can bring better surface quality to your wood.
Surface finish comparison
Although both materials can achieve a good surface finish, aluminum oxide is more advantageous in the wood sanding process, and you don’t have to worry about the wood surface loss due to excessive force.
Special Material Handling
Glass and ceramic processing
Silicon carbide shows obvious advantages in the processing of these hard and brittle materials. Its ultra-high hardness and sharpness can effectively cut glass and ceramic surfaces while providing a good surface finish.
Composite material processing
For composite materials such as carbon fiber, the selection needs to be based on the specific composition. Silicon carbide is suitable for processing composite materials containing hard particles, while aluminum oxide is more suitable for processing fiber-reinforced composite materials.
Precision parts processing
In precision parts processing, material selection needs to be particularly careful. Silicon carbide is suitable for cemented carbide parts that require high precision, while alumina is more suitable for finishing of ordinary metal parts.
With these detailed comparisons, you can choose the most suitable abrasive material for your specific processing needs. Remember, sometimes using a combination of two materials may give a better processing result.
How to Choose Between Silicon Carbide and Alumina?
To help you make the best choice, we provide you with professional advice from two dimensions: material properties and cost.
Material hardness considerations
When the hardness of your processing material exceeds HRC 60, we recommend that you choose silicon carbide, whose high hardness can ensure effective cutting.
If the material is HRC 45-60, then aluminum oxide is completely sufficient and is your economical first choice.
When processing soft materials, you should prefer aluminum oxide to avoid over-cutting of silicon carbide.
Surface requirement assessment
If your surface processing is fine and needs to achieve a mirror effect, then we recommend you to use fine-grained silicon carbide.
For general industrial surface treatment, then aluminum oxide can provide stable surface quality.
For materials that require natural textures such as wood, aluminum oxide’s gentle cutting is more advantageous.
Processing efficiency requirements
If you need extremely high efficiency and short-term efficient waste removal, you should choose silicon carbide.
If you need long-term stable processing, alumina is more suitable for you.
When mass production, you can give priority to the durability of alumina.
Cost-effective choice
Silicon carbide has a higher cost and is suitable for small batches of high-precision processing.
Aluminum oxide has a lower cost and is suitable for large-scale production processing.
Service life analysis
The service life of alumina abrasive is 2-3 times that of silicon carbide.
Silicon carbide wears out faster when dealing with certain materials and requires frequent replacement.
Of course, both materials can significantly extend their lifespan if you use them correctly.
Recommendations for selecting processing materials
Precision processing of glass and ceramics: Silicon carbide is preferred
Massive processing of metals: Alumina is preferred
Woodworking polishing: Alumina is recommended
High precision requirements: Use both materials together
Both materials have their own advantages, but combining them can achieve better grinding results.
Conclusion
Choosing the right abrasive material is the key to improving processing quality. Silicon carbide excels in precision machining due to its ultra-high hardness, while aluminum oxide is a reliable choice for industrial production due to its excellent durability. It is recommended that you weigh the material properties, processing requirements and cost-effectiveness according to the specific application scenario to make the best choice. Remember, the best solution is often not a single product, but the right material for the right scenario.
FAQs.
Q1: Is silicon carbide harder than aluminum oxide? What are the specific hardness differences?
Yes, silicon carbide is harder than aluminum oxide. The Mohs hardness of silicon carbide is 9.5, while aluminum oxide is 9.0. There is a difference of 25%. Obviously, silicon carbide is more suitable for you to grind extremely hard materials quickly, although it is easy to wear.
Q2: Which abrasive is better for metal grinding: silicon carbide or aluminum oxide?
Aluminum oxide is more suitable for grinding metals, especially steel and other ferrous metals. It can provide you with longer-lasting cutting performance. Although silicon carbide is harder, it wears too quickly and lacks cost-effectiveness.
Q3: What type of sandpaper should I use for aluminum surfaces?
Aluminum is a soft metal and we recommend that you use aluminum oxide sandpaper, starting with 80-grit and working your way up to finer grit papers. For precision work, we recommend that you consider using silicon carbide sandpaper in the final stages. Aluminum oxide and silicon carbide work together to give you the best surface finish.
Q4: How do you choose the right grit sandpaper for wood finishing?
We recommend starting with 80-grit sandpaper for rough surfaces, then 120-grit sandpaper for general surfaces, and then 180-grit sandpaper for finer sanding. For final finishing, you can use 220-grit or higher-grit sandpaper. You should always sand with the grain and avoid skipping multiple grits of sandpaper between steps.
Q5: Can silicon carbide and aluminum oxide be used together in the same project?
Absolutely, you will get the best grinding results if you use these two materials in sequence. You can choose to use aluminum oxide to remove large scraps first, and then use silicon carbide for finishing. The combination of these two materials can achieve even better machining capabilities.
Q6: What’s the cost difference between silicon carbide and aluminum oxide abrasives?
The initial cost of silicon carbide is typically 30-40% higher than aluminum oxide. However, the total cost depends on your application. If you are machining hard materials such as glass or ceramics, then the superior cutting efficiency of silicon carbide proves its value. For general metal machining, aluminum oxide abrasives have a longer life and are more economical.
Q7: Why does aluminum oxide wear down slower than silicon carbide?
Aluminum oxide wears more slowly because of its unique fracture characteristics. When aluminum oxide particles break, they form new sharp cutting edges while maintaining overall integrity. However, silicon carbide often breaks completely after multiple wears, causing it to wear faster, so the “self-sharpening” property makes aluminum oxide more durable.
Q8: Which abrasive is best for glass and ceramic materials?
Silicon carbide is more suitable for grinding glass and ceramic materials. Silicon carbide is sharper and harder, and can efficiently remove waste without applying high pressure, helping you efficiently cut and grind more perfect surfaces and effectively reduce the risk of material cracking.
Q9: How long do silicon carbide sanding belts typically last compared to aluminum oxide?
If you use it in general applications, the service life of aluminum oxide belts will be 2-3 times longer than that of silicon carbide belts. However, in some special applications, such as processing glass and ceramics, the service life of silicon carbide will be longer because it is more compatible with these materials. Therefore, the use conditions and the pressure applied will affect the service life of the belt.
Q10: What’s the difference between white, pink, and brown aluminum oxide?
Brown Aluminum Oxide is the most cost-effective and ideal for removing heavy materials. White Aluminum Oxide is used for sanding finer surfaces, produces less heat and is suitable for wood and lacquer. Pink Aluminum Oxide is somewhere in between and is suitable for softer woods and precision grinding.

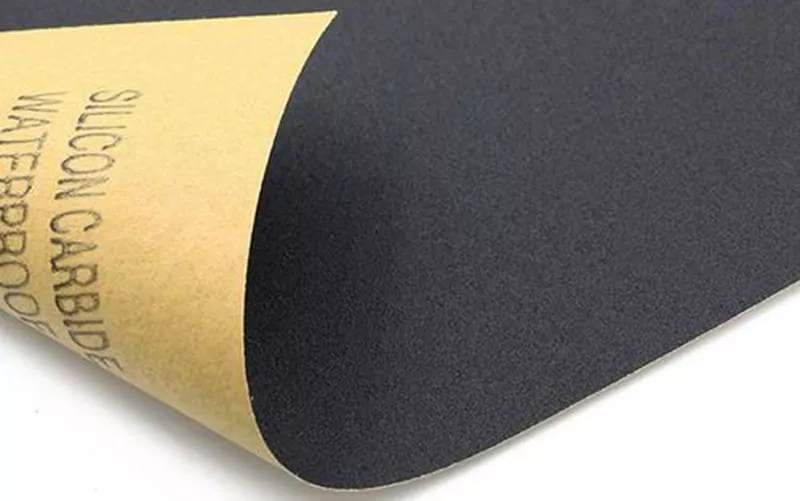

Q11: Can you use silicon carbide sandpaper for wet sanding?
Of course, silicon carbide sandpaper excels in wet sanding applications, where it has excellent water resistance, which improves its cutting ability when wet sanding, making it ideal for automotive painting and other wet sanding applications. The water helps prevent clogging and reduces heat buildup during the sanding process.
Q12: Which abrasive provides a better surface finish on stainless steel?
Aluminum oxide can help you provide the best surface finish for stainless steel. Aluminum oxide has controlled decomposition characteristics and less heat generation, producing a consistent finish. Although silicon carbide is harder, it is likely to leave deeper scratches if cut aggressively, requiring additional processing.
Q13: Are silicon carbide grinding wheels worth the higher cost?
When you need to grind and cut specific materials such as carbide, ceramics, glass, etc., it is better to choose silicon carbide grinding wheel, which can help you save costs. For these harder materials, using silicon carbide will have higher grinding and cutting efficiency and better surface quality. However, for general metal grinding, it is recommended that you use aluminum oxide grinding wheel, which has a longer life.
Q14: What’s the best abrasive for hardwood floor finishing?
Aluminum oxide is your best choice for finishing hardwood floors. It has an excellent and durable cutting action, and can effectively remove waste materials evenly without damaging wood fibers. If you start with a heavy sanding of grit, then gradually increase to a medium grit, and finally use a 120 grit fine sanding, you can get a perfectly smooth surface. During this process, the “self-sharpening” nature of aluminum oxide ensures consistent performance throughout the process.
Q15: How do you determine the right abrasive grain size for your project?
You can choose the abrasive grit size based on the surface condition and the desired surface finish. For rough surfaces or to remove a lot of scrap, start with 40-80 grit. For general processing, start with 100-150 grit. For fine surface processing, use 180-220 grit, which will give you the best results for your surface processing. Do not skip multiple grits between steps.
