The ceramic shaft OD assures a snug fit and performance. All manufacturers maintain absolute precision during ceramic shaft manufacturing, especially the outer diameter (OD). However, it is not easy to maintain precision OD measurement for several reasons, such as hardness, tool wear, and expansion due to heat.
Understanding the Outer Diameter in Ceramic Shafts
Outer diameter represents the exterior measurement of the ceramic shaft and determines its compatibility.
Comprising OD vs ID, OD denotes the measurement of the border while ID denotes the bore—or wall thickness.
A minute variation in OD can cause major flaws due to friction, such as:
-
Failures
-
Inefficiencies
-
Chipping
-
Rotational instability
-
Load distribution
Significance of Precision
Typically, outer diameter tolerance affects performance because seamless movement prevents contamination. It ensures a proper fit, component durability, and reliability, allowing exhaustive applications.
Role in Different Industrial Component Manufacturing
Aerospace:
OD variance by as much as ±2 microns may result in misaligned shafts in aerospace industries, causing rapid wear and vibration. Precise OD tolerance ensures smooth operation, lower heat, and proper balance at 20,000 RPM!
Semiconductor:
Flaws in wafer manufacturing in semiconductor industries are common effects of differences in OD tolerance, even by ±1 micron. It will also impact machine lithography.
Medical:
Surgical robotics cannot perform flawlessly with improper OD tolerance. A difference of ±2 microns will affect its motion and cause errors in non-invasive or minimally invasive medical surgeries.
Challenges
Maintaining 9 Mohs, considering the hardness of material, thermal shock, and degradation of tools are major OD machining challenges as they impact accuracy.
There is a high chance of minute errors due to the fragile surface. This necessitates a non-contact laser mechanism to eliminate complexities and errors.
Advanced Measurement Techniques for OD Accuracy

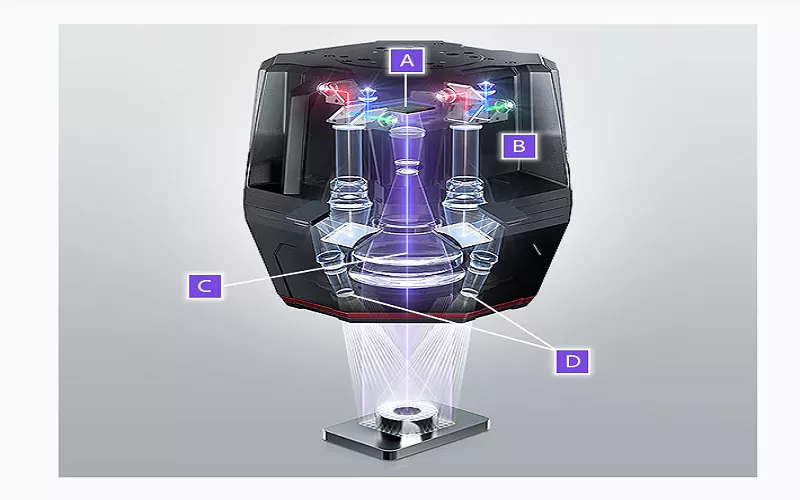

Dual-Camera Systems for Enhanced OD Measurement
Dual cameras are used to ensure higher precision in OD measurement. These are actually sophisticated optical mechanisms. The HD cameras have a higher resolution to capture real-time images of the shaft profile from perfect positions and angles.
Deviations are less than 0.2 microns, compensating for the shaft oscillations and distortion of the lens in real time.
The semiconductor and aerospace sectors witness the extensive application of dual camera systems for accurate OD verification and precise concentricity at more than 15,000 RPM in real time.

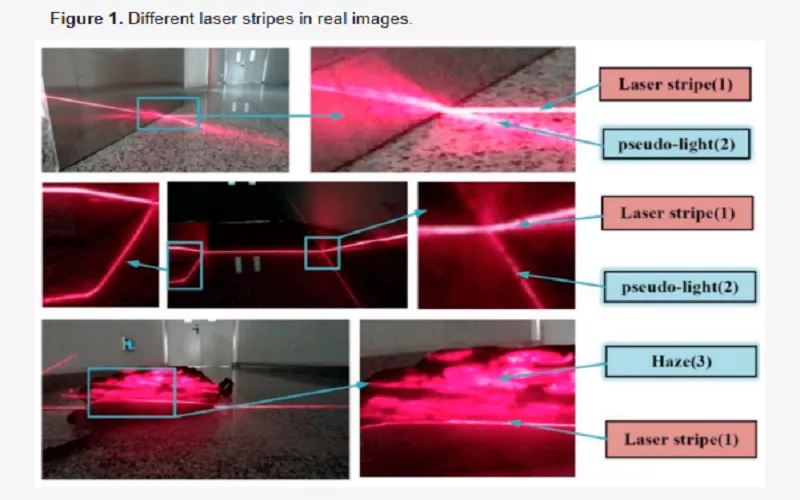

Enhanced Light Stripe Imaging for Reflective Ceramic Surfaces
Due to the polished surface of the ceramic material, traditional laser micrometers cannot be relied on for 100% accuracy and consistency due to the scattering of the laser beam. Therefore, enhanced light stripe imaging (ELSI) is used.
The light projected on the surface is well-structured and streamlined. This reduces reflection and improves the detection of edges by 30% more than traditional systems and techniques.

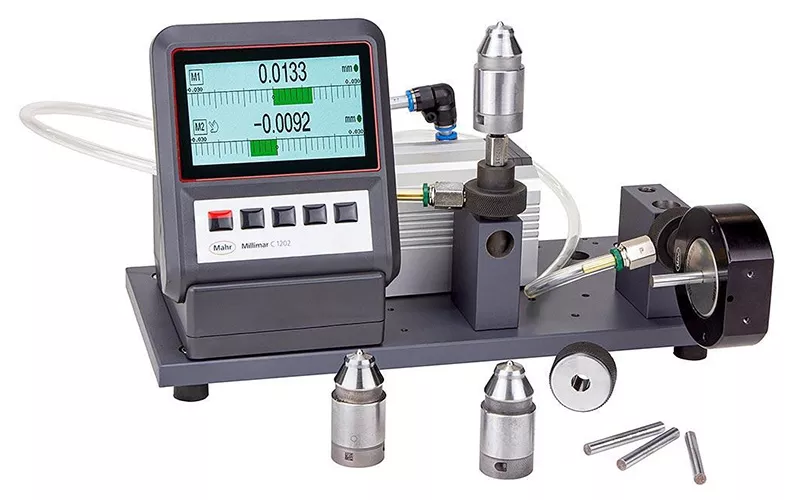

Air Gauging
This is one of the high-precision OD techniques that is essential for sub-micron measurement in ceramics, which is highly brittle. Since there is no contact made on the surface by the airflow, which is normally 100 to 150 kPa, deviations in dimensions can be measured accurately within ±0.1 microns.
The entire mechanism is based on the changes in back pressure. Such precision makes this technique most suitable for silicon carbide, zirconia, and high-purity shafts and clean settings.
Automation in OD Measurement
How AI & Automation Improve OD Precision
Automation and AI play a significant role in OD measurements in manufacturing ceramic shafts. The advanced technology ensures higher consistency and precision at sub-micron and nanometer levels.
Power of AI:
Typically, advanced machine vision mechanisms powered by AI facilitate real-time OD deviation analysis with the help of deep learning and machine learning algorithms. This ensures the accuracy of machining metrics. Studies revealed that such advanced systems used in semiconductors and aerospace increase the output with lower cycle times and 40% greater measurement speed.
Power of Automation:

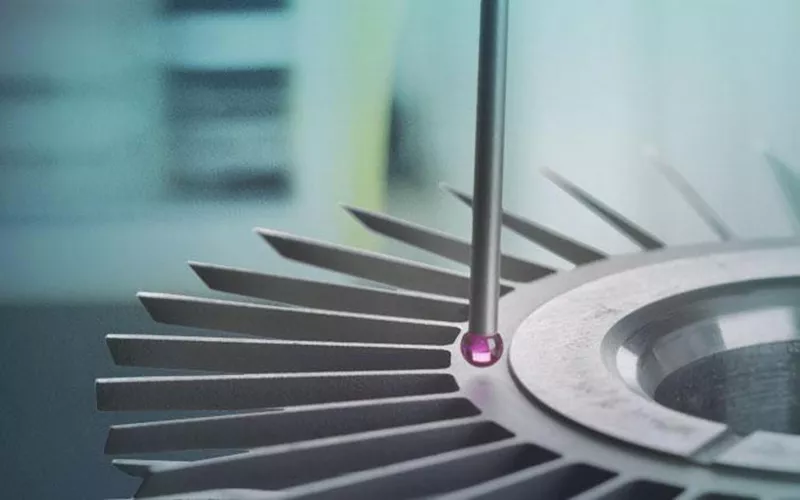

Using automatic coordinate measuring machines (CMMs) also maintains accuracy in OD measurement by ±0.1 microns when integrated with several sensor probes. It eliminates the challenges of temperature variance.
Grinding forces are adjusted, tool wear is minimized, and accuracy in OD tolerance is maintained even in extremely hard zirconia and silicon carbide materials with real-time feedback loops driven by AI.
Reducing Human Error in Ceramic Shaft Measurement
Automation eliminates the need for human interference and, therefore, minimizes the chances of tool misalignment, improper handling, and even errors due to environmental conditions. The laser micrometers do not contact the surface and, being automated, scan the shafts uninterruptedly at 1,000 measurements per second.
Since these influencing factors are eliminated, repetition at 0.05 microns and robotic shaft aligning to the rotating axes is allowed to ensure consistency. Therefore, the chances of distortion in OD measurement and readings are eliminated because there is no angular misalignment.
Typically, AI and automation help reduce scrap or material wastage by 25% and improve product reliability and quality standards, which are necessities for medical, aerospace, and semiconductor industries.
Strategies to Maintain OD/ID Concentricity
Why OD/ID Misalignment Affects Function
OD/ID misalignment in ceramic shafts affects functionality because it impacts the concentricity. This, in turn, affects the proper distribution of load and the balance during rotation. In addition, it also influences component integrity and mechanical consistency. In short, anything beyond 2 to 5 microns will reduce reliability and performance.
Why?
The main reasons are:
-
Higher vibrations at applications over 20,000 RPM may cause component wear and premature failures.
-
Unstable fluid flow in pumps and etching machines may reduce efficiency and
-
Higher local stress raises the risk of fractures by as much as 30% due to the ductile nature of ceramics at higher loads.
Best Practices for Achieving Concentricity in Ceramics
Manufacturers typically integrate different techniques to ensure OD alignment, durability, and performance, such as:
-
Advanced CNC grinding with hydrostatic spindle bearing to reduce runout
-
Multiple-axis CMMs are driven by AI for better concentricity tracking, the identification of real-time deviations, and the automatic adjustment of parameters as needed.
-
Adaptive Fixture mechanisms with advanced piezoelectric actuators that dynamically alter holding force to prevent deformation or distortion of the shaft while grinding
-
Non-contact laser concentricity probes to reduce errors in inspection and ensure accuracy up to ±0.1 microns and
-
Cryogenic machining to maintain the temperature of the shaft at -150°C to prevent variations due to thermal expansion.
Achieving Tight Tolerances in Ceramic Machining
Common Tolerance Issues in Ceramics
Thermal fluctuations causing instability are widespread, causing significant issues in maintaining a tolerance within ±1 micron. Apart from that, rampant tool wear and a high chance of microchipping also cause major issues, especially in hard ceramic materials due to excessive brittleness.
Best Materials & Machining Methods for Tight Tolerances
While the best materials include silicon nitride, zirconia, and alumina due to their excellent wear resistance and machinability, the best machining methods include:
-
Diamond grinding – This ensures super fine grit and higher precision up to ±0.5 microns.
-
Ultrasonic machining – This helps in reducing the chances of micro-cracks due to lower tool pressure.
-
Laser ablation helps maintain accuracy at the sub-micron level in intricate geometries.
-
Cryogenic machining – This helps maintain tolerance stability by restricting thermal expansion.
Practical Guide: How to Measure OD Accurately
-
Maintain thermal stability at ±0.2°C according to the coefficient of thermal expansion for accurate measurement as it is 3.2 × 10⁻⁶/K in alumina, for example.
-
Use air spindles for non-contact operation and to reduce the chances of distortion due to micro-stresses.
-
Integrate laser interferometers for scanning at multiple axes to ensure precise surface mapping with ±0.05-micron accuracy.
-
Incorporate real-time calibration with AI and machine learning algorithms to handle tool wear and environmental drifts.
The best tools for OD measurement accurately are:
-
Laser micrometers for metrology
-
Air gauging and
-
CMMs with photosensitive probes for 360° verification.
Visual Demonstrations & Video Tutorials

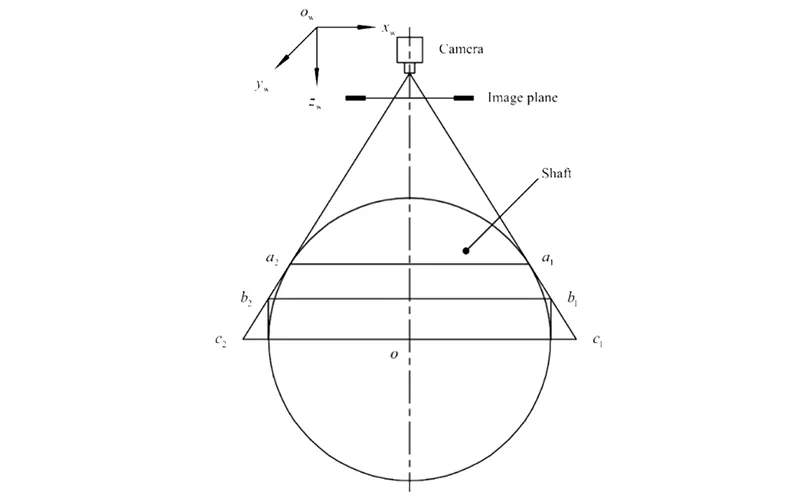

Shaft diameter measurement - https://www.researchgate.net/figure/Shaft-diameter-measurement-model_fig1_338919063

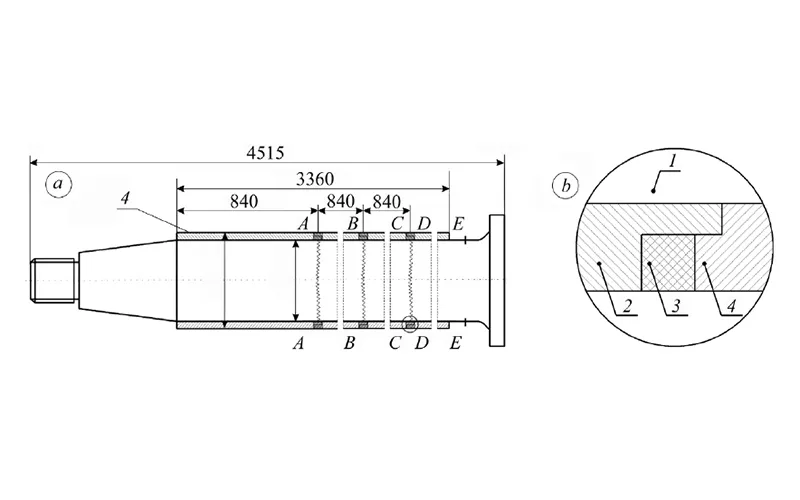

Shaft and its main sizes - https://www.researchgate.net/figure/Schematic-diagram-of-the-shaft-and-its-main-sizes-a-cross-section-of-the-shaft-b-at_fig1_281371692

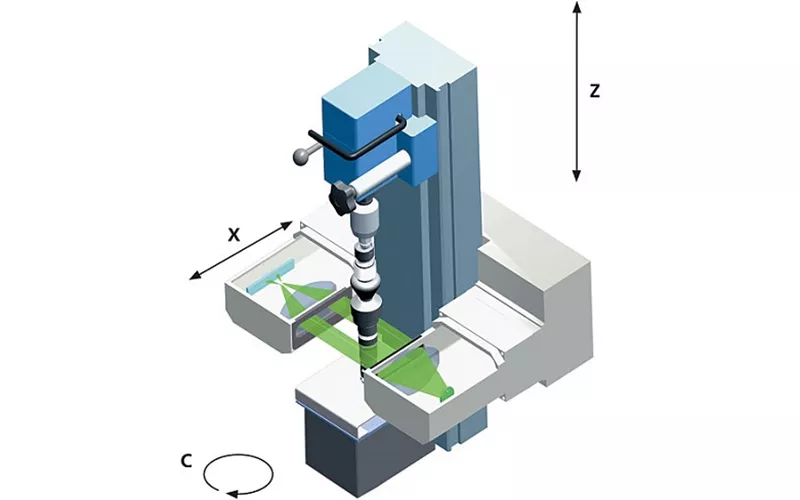

Hexagon Metrology – Metrology | Hexagon
Video Tutorials
CMM OD measurements - https://www.youtube.com/watch?v=jhtBVfC6ZY8&ab_channel=TechGuru-SachinThakur
High-Precision Shaft Inspection with 3D Metrology - https://www.youtube.com/watch?v=7O8Mpr-CRnc&ab_channel=QualitasTechnologies%28AMachineVisionCompany%29
Non-contact cam shaft inspection machine - https://www.youtube.com/watch?v=hPBPFcn6HlM&ab_channel=RajashreeAutomation%26GaugingSystemsPvt.Ltd.
Contact GGS Ceramic’s offerings today for a quick quote for innovative, high-performing ceramic shafts with superior OD tolerances.
FAQs
Q: How can the outer diameter of a ceramic shaft be measured accurately?
A: Use air gauging systems and laser micrometers for greater accuracy of up to ±0.1-micron in measuring outer diameter.
Q: How does temperature affect OD measurements in ceramic materials?
A: Slight temperature variations can result in an expansion of ceramic materials, causing inaccuracy in the measurement.
Q: What are the common defects that affect OD accuracy in ceramic shafts?
A: Wear, micro-chipping, thermal expansion, and misalignment are the most common reasons for measurement inaccuracies in OD precision.
Conclusion
Manufacturers today should know how to achieve tight OD tolerances and achieve accuracy in OD measurements for shafts at a sub-micron level to ensure greater performance and reliability across varied applications.
Implementing AI-powered tools and advanced laser technology to promote non-contact measurements is the best practice to ensure higher accuracy and performance in high-tech applications.
