Zirconia Ceramic Tube

GORGEOUS zirconia tubes are made from high-quality alumina and are available in a variety of custom purities and sizes.

High Quality Zirconia Tube

Custom Processing Suppliers

\
We offer PSZ (Partially Stabilized Zirconia) and FSZ (Fully Stabilized Zirconia), providing customized solutions based on customer needs.
\
According to customer needs, we can provide different materials, such as Y2O3-ZrO2, CaO-Y2O3, MgO-Y2O3, etc.
\
ZrO2 ceramic tubes are ISO pressed and after sintering the surface can be ground and polished to obtain the tightest tolerances and fine surface finish.
\
Whether you require high strength, heat resistance, or custom geometry, our technical staff will provide a fully customized solution based on your application needs.

Zirconia Tube Description

GORGEOUS can provide customers with complete zirconia ceramic tube manufacturing services. We are proficient in a variety of advanced processes such as isostatic pressing, slip casting, dry pressing, CNC precision machining, polishing and high-temperature sintering to ensure that each product reaches the industry-leading level and accurately meets the application needs of customers.

Zirconia ceramic tubes are widely used in high-strength mechanical components, high-speed bearings, thermocouple protection tubes, chemical pipelines, analytical instruments, fuel cell systems and other fields. Its outstanding mechanical strength, wear resistance, corrosion resistance and thermal stability make it still perform well under harsh working conditions.
In addition, the low thermal conductivity and good insulation properties of zirconia also make it an ideal choice for certain specific insulation and heat insulation applications.

GORGEOUS customizes zirconia ceramic tubes according to the specific needs of customers. Whether it is a complex inner hole structure, precise wall thickness control, or special-shaped geometric design, our professional team can provide you with efficient solutions.

If your project requires wear-resistant, high-temperature-resistant, and corrosion-resistant zirconia ceramic tubes, please feel free to contact us to help you achieve the dual goals of product performance and quality.

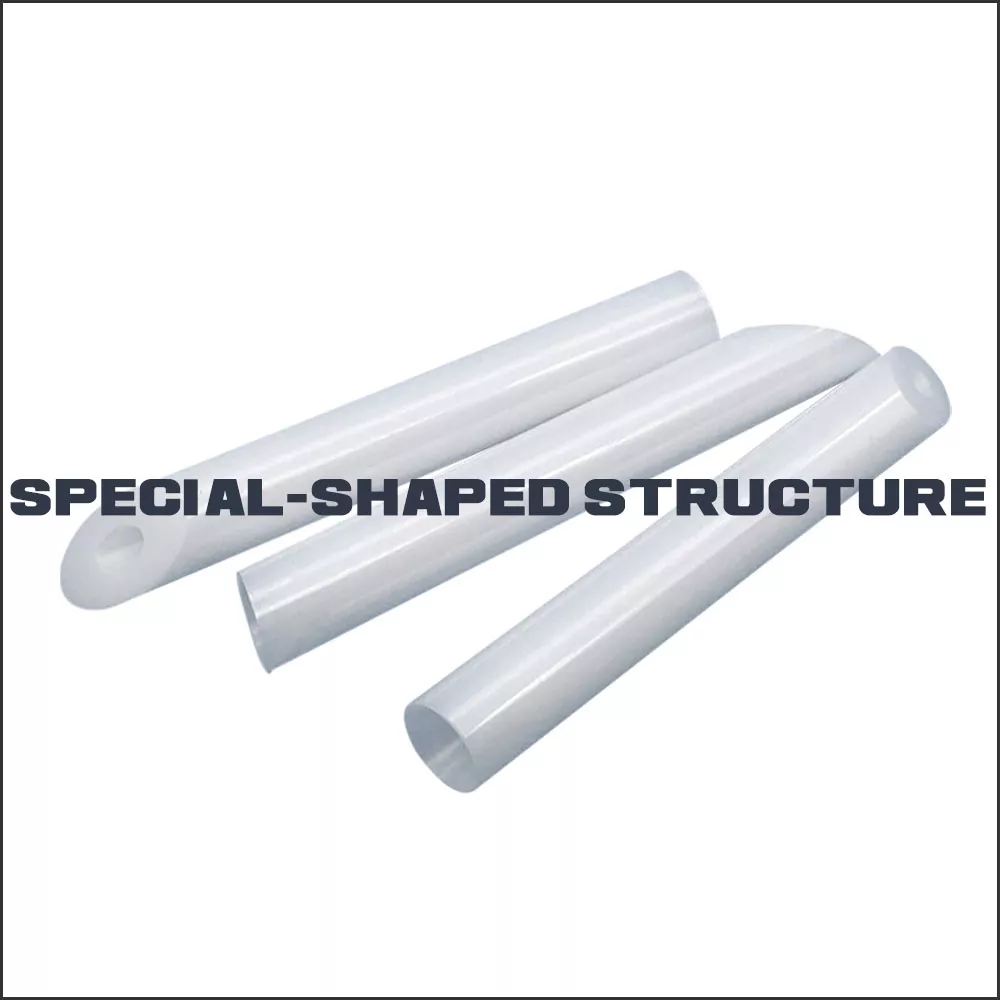

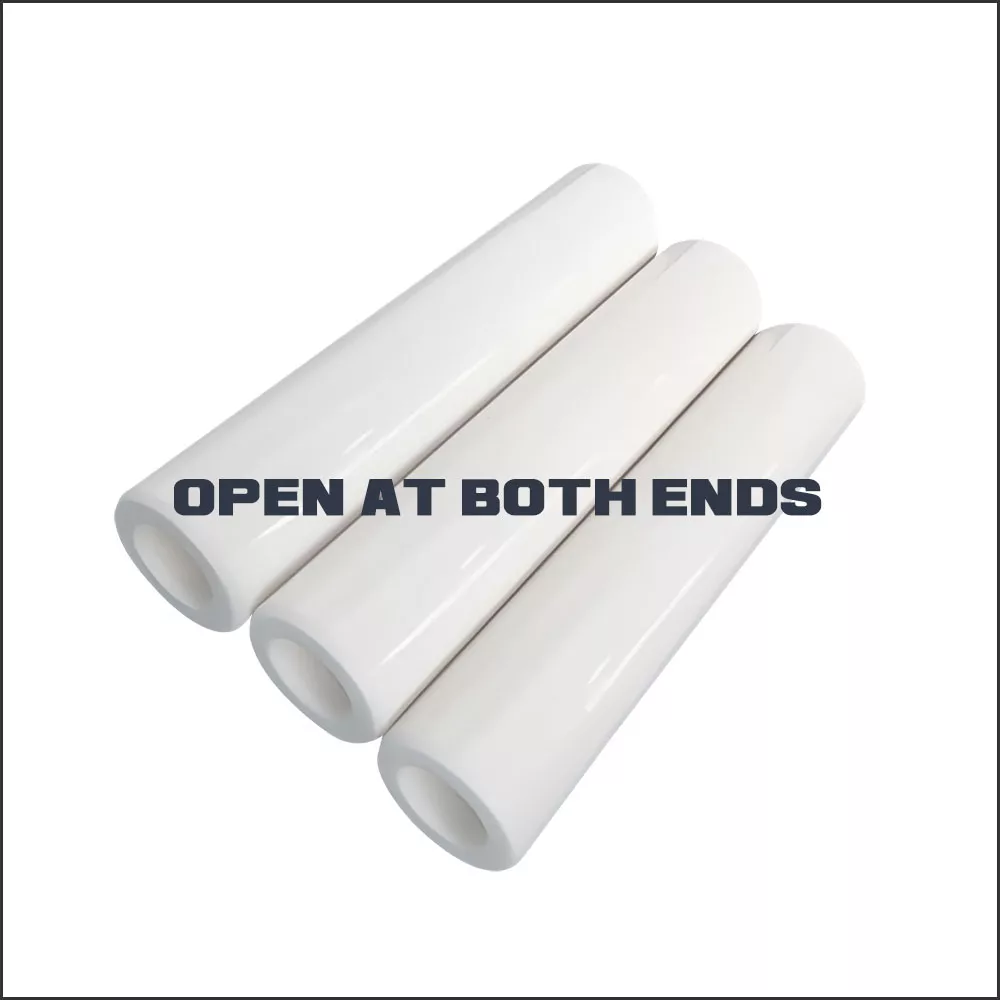

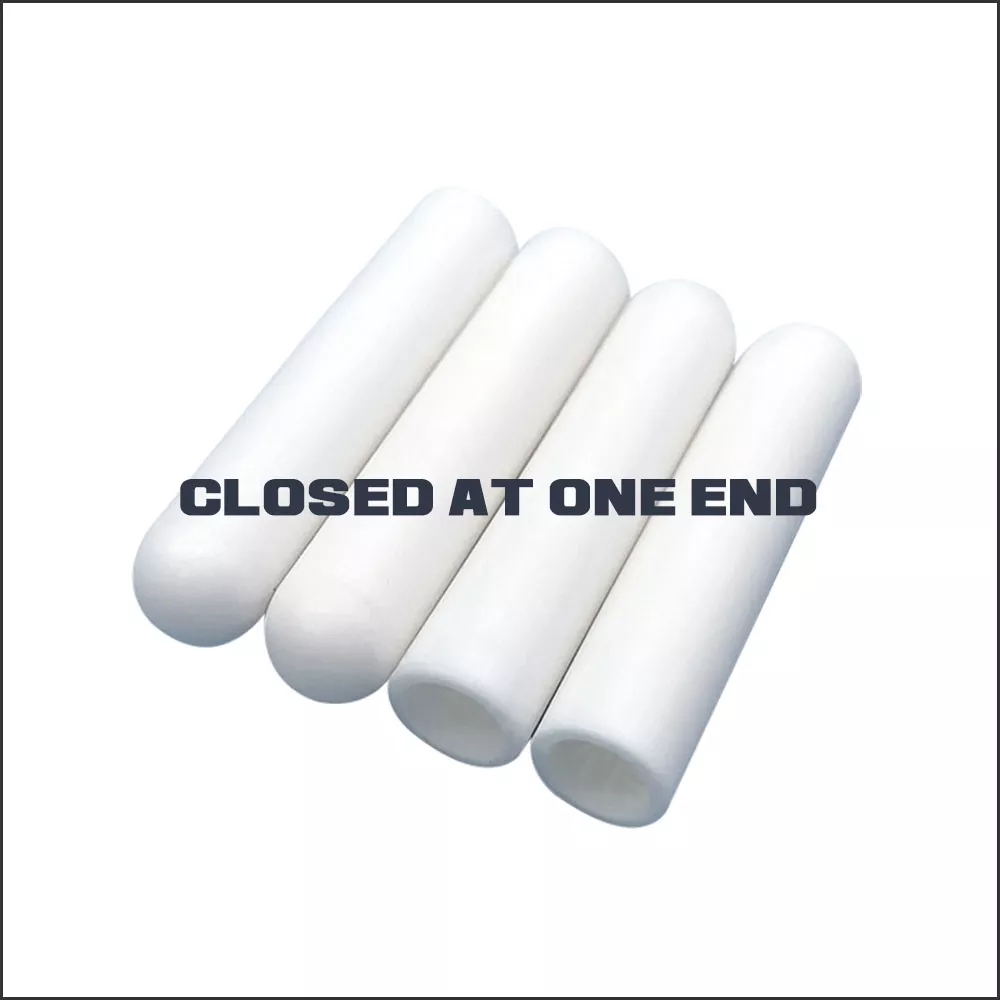

Supply Various Shapes of Zirconia Ceramic Tubes

Provide Customers with Customized Solutions According to Their Needs

Supply Different Types of Zirconia Tubes

Note: YSZ is the material with the best bending strength among all the zirconia-based materials we supply. However, YSZ tubes are very brittle and you should be careful when using them as processing tubes.
In addition, the heating and cooling speeds should be as slow as possible (usually <5℃/min for heating at temperatures of 800℃ and above, and <2℃/min for temperatures above 1500℃)

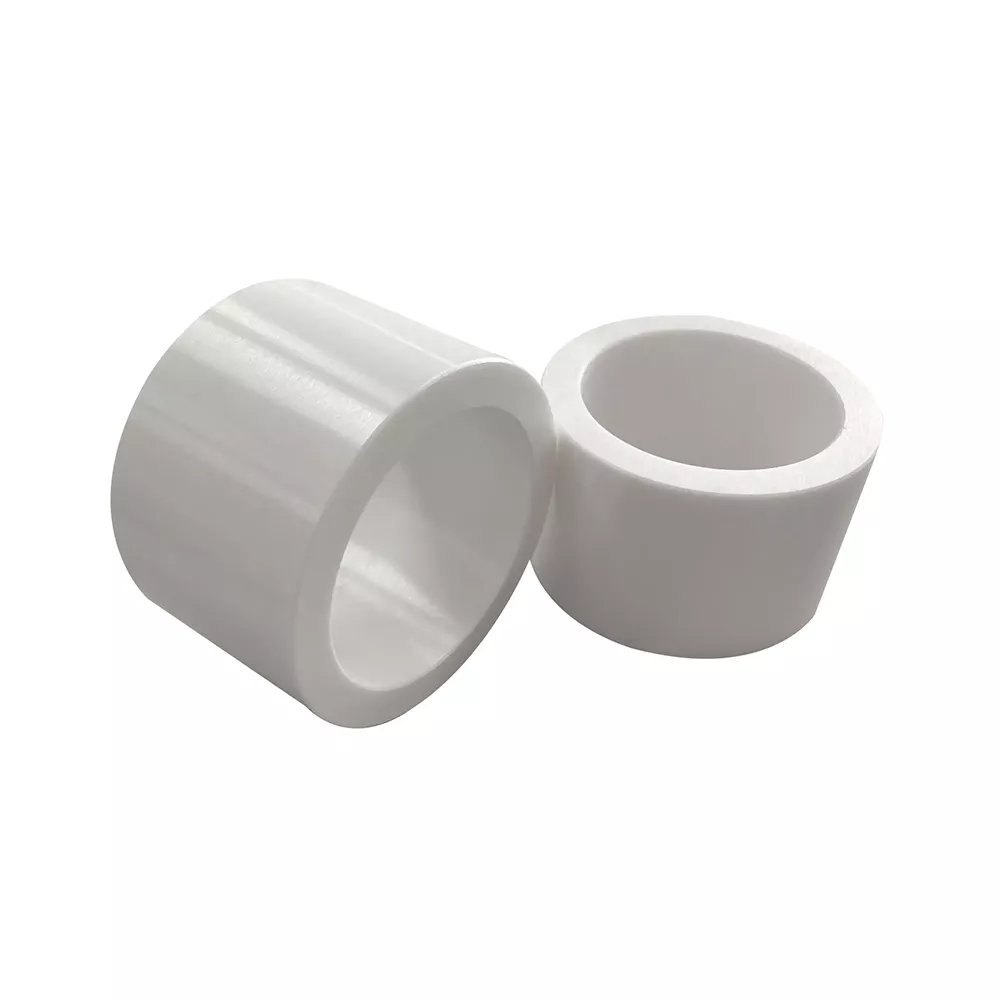

YSZ Tube

8 mol% Y₂O₃ stabilized zirconia tube is resistant to high temperatures, has stable chemical properties, and has the best bending strength among zirconia-based materials.

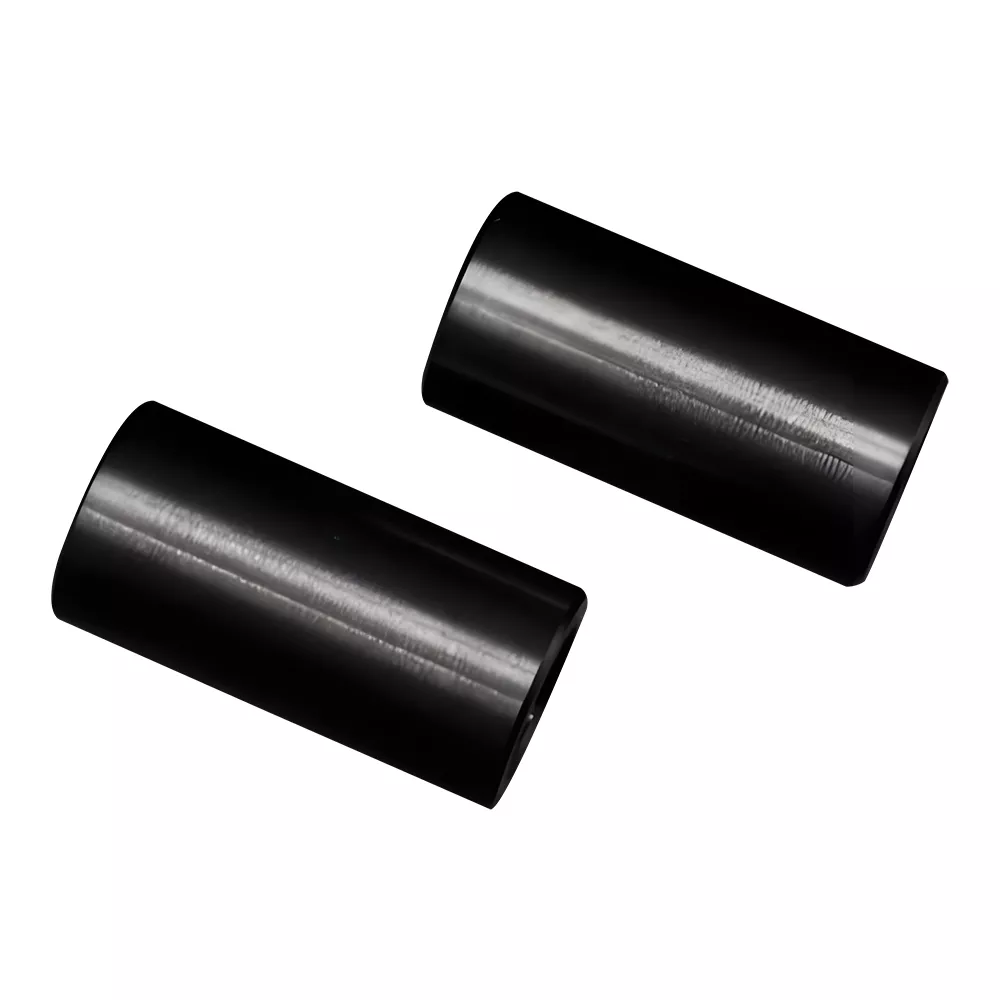

Black Zirconia Tube

Adding specific elements, such as cerium oxide, yttrium oxide, chromium oxide or carbide, gives it a unique appearance and greater resistance to light pollution.

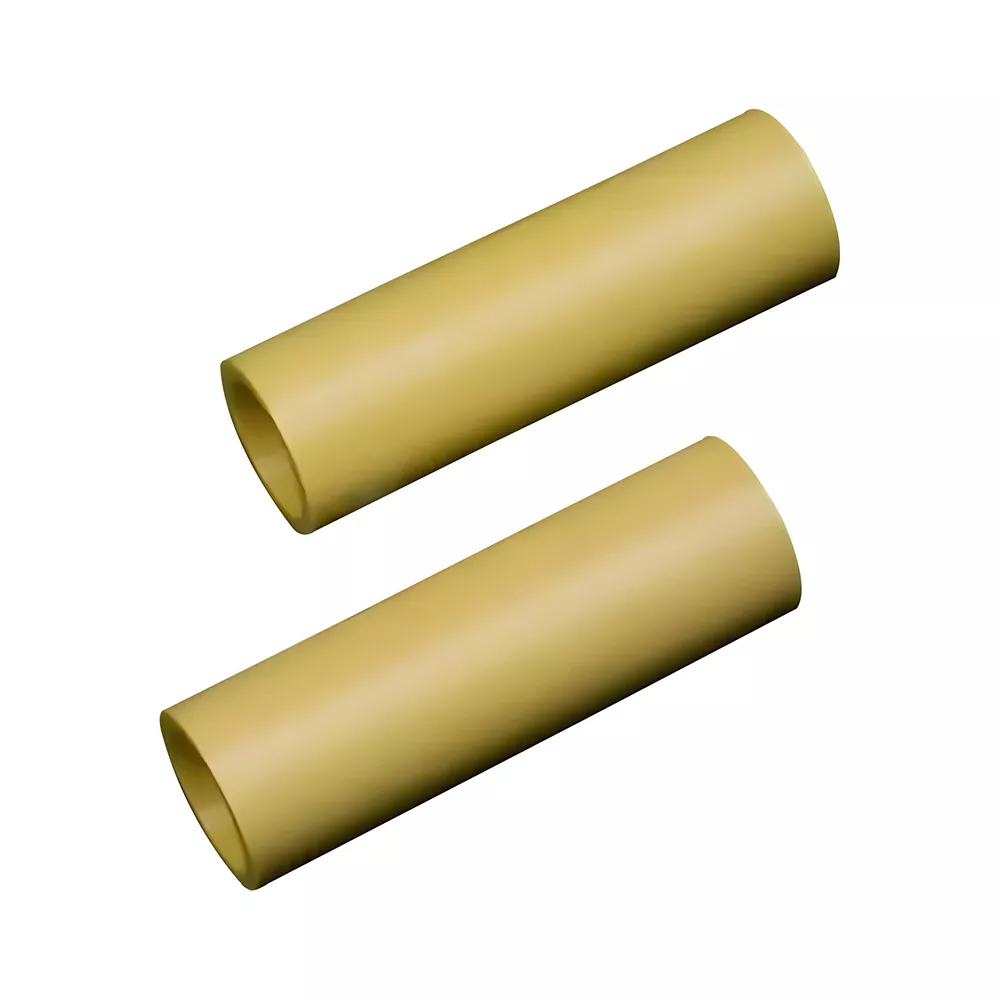

Mg-FSZ Tube

MgO-stabilized zirconia tubes have good thermal shock resistance and low cost, and are often used in high-temperature structural ceramics in the metallurgical industry.

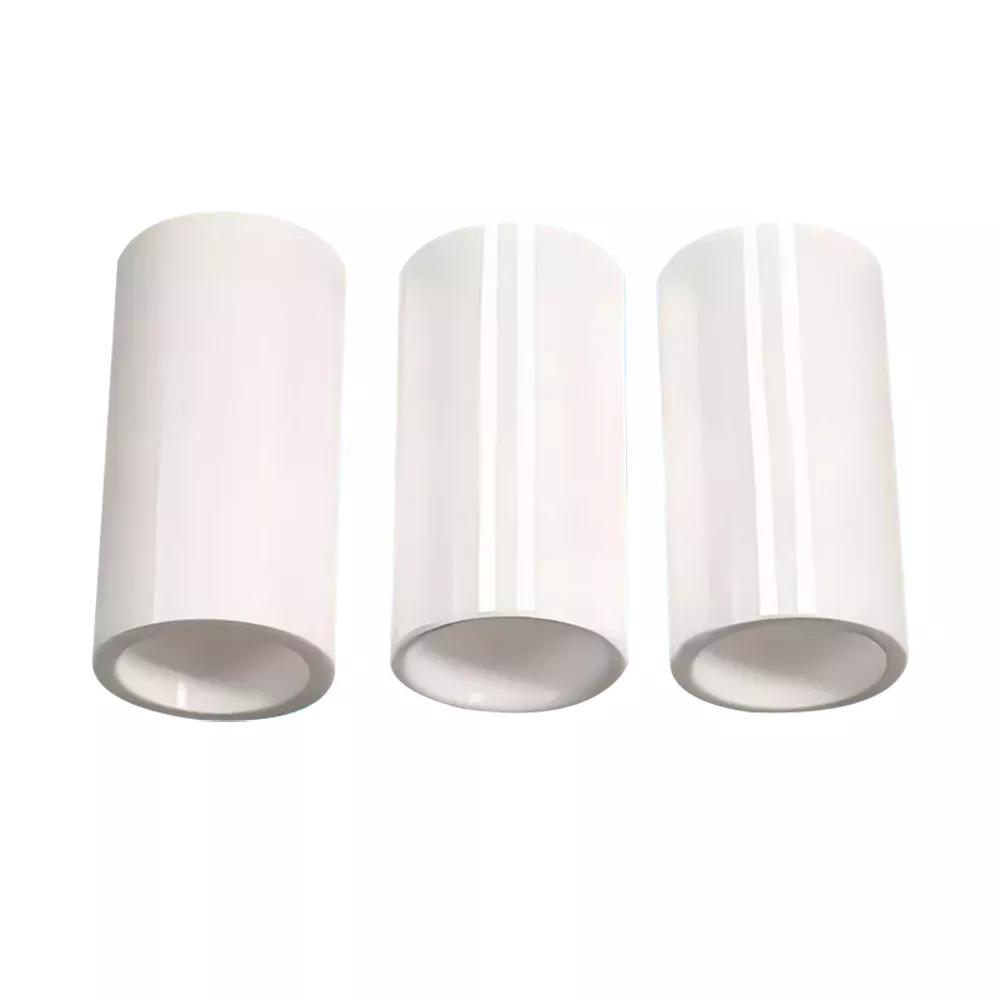

Y-TZP Tube

3 mol% Y₂O₃ stabilized zirconia tube, phase transformation toughening, high bending strength, high fracture toughness and wear resistance, suitable for precision parts.

Advantages of Zirconia Ceramic Tube

High Flexural Strength

Fracture Toughness

Corrosion Resistance

Low Thermal Conductivity

Mechanical Properties of Zirconia Tubes

Name Zirconia
Density g/cm3 6.02
Young’s Modulus GPa 200
Fracture Toughness KIC MPa m1/2 17
Poisson’s Ratio 0.3
Compressive Strength MPa 2000
Flexural Strength MPa 1200
Hardness GPa 13



Alumina Ceramic Tube Use

Industrial Manufacturing

In the industrial manufacturing industry, the high hardness and low friction coefficient of zirconia tubes are very suitable for replacing metals in various pumps, valves, and shaft applications.
Commonly used in: Wear-resistant bushings, shaft sleeves, ceramic nozzles, insulation pipes, high-temperature pipe linings.

Electronics and Electrical

Zirconia is used as an insulator and can be used in high-frequency, high-voltage equipment components, such as for encapsulating thermocouple probes.

Commonly used in: Electrical insulation tubes, thermocouple protection tubes, vacuum equipment components

Medical and Biological

Zirconia has excellent biocompatibility and is often used in medical bioengineering equipment components and implants.

Commonly used in: Bioceramic sleeves, laser beauty probe protective sleeves, dental equipment pipelines.

Automobile and Aviation

Zirconia tubes are suitable for high temperature and highly corrosive working environments. In the automotive and aviation industries, they can be used to encapsulate oxygen sensor elements, thermal insulation components, etc.

Commonly used in:Automotive oxygen sensors, exhaust temperature sensor sheaths, fuel cell isolation components.

Are You Worried About the MOQ?

Special minimum order quantity (MOQ) of one piece is available to meet customers with smaller needs. Take the first step and experience our services.

Why Choose GORGEOUS?

GORGEOUS focuses on quality control to ensure that every zirconia tube product meets customer requirements. Our quality inspection process is strict and meticulous. From raw materials to finished ceramic products, every step is precisely inspected and tested.

In addition, the GORGEOUS factory has passed the IATF16949:2016 automotive industry quality management system certification and ISO9001:2015 quality management certification, and is able to provide customers with the best quality customized services.

Our Pass Successes Testimonials

GORGEOUS's zirconia tubes are very competitively priced and of superior quality. We have established a long-term and reliable cooperative relationship with them.

Testimonial Item

Michael

Product Manager

GORGEOUS custom-made zirconia tubes are exactly as per our drawings. They are excellent in precision and appearance, and are normally equipped with factory equipment.

Testimonial Item

David

Product Manager

The service experience with GORGEOUS was excellent and our shipment arrived quickly and safely.

Testimonial Item

John

Wholesaler

FAQs

What is the difference between zirconia ceramic tubes and other ceramic tubes?

Zirconia ceramics have stronger toughness and fracture resistance than other ceramics. Compared with alumina, zirconia is more resistant to cracking and has better mechanical impact toughness. Compared with silicon carbide and silicon nitride, zirconia has poorer heat resistance under mechanical load.

What are the benefits of zirconia ceramic tubes?

Excellent mechanical strength - Zirconia tubes have excellent bending and compressive strength, making them ideal for load-bearing applications.
High fracture toughness - Zirconia is different from other ceramics and can resist cracks and mechanical impact.
Excellent wear resistance - Suitable for various high wear environments such as seals, plungers or bushings.

What are the disadvantages of zirconia ceramic tubes?

Pure zirconium oxide tends to undergo phase changes, requiring the use of stabilization agents such as yttria, adding complexity.
Density is higher than most ceramics, a limitation in some weight-sensitive applications.

In what fields can zirconia ceramic tubes be used?

Industrial machinery (high-pressure pump pipes, plungers, sealing rings): suitable for high-friction, corrosive liquid delivery systems
Chemical and material processing (corrosion-resistant transmission pipelines): used for the transportation of strong acids, strong alkalis or high-temperature corrosive gases/liquids
Medical and biotechnology (implant-level product development experimental pipelines): biologically inert and non-toxic
Electronic and electrical insulation (high-voltage electrical insulation pipes, thermal insulation sheaths): used for high-temperature/high-voltage power equipment
Automotive and energy industries (thermal barrier coating cores/insulated conduits): used for engine and turbine systems
Special fields (laser system guide tubes): suitable for high-precision laser processing equipment
