Yttria stabilized zirconia (YSZ) stands out from other ceramic stabilizers, especially if your application depends on materials that don’t fail under pressure. Performance, durability, and consistency are key in industrial settings, and YSZ offers those balanced properties that your industry demands. Whether your industry makes fuel cells or dental devices, yttrium zirconium is the cost-effective, high-performance material your project needs to boost reliability and ROI.
What Is Yttria Stabilized Zirconia?
-
Yttria stabilized zirconia is a ceramic material with the cubic structure of zirconium dioxide (ZrO2), made stable at room temperature by adding yttrium oxide (Y2O3).
-
Zirconium dioxide undergoes a phase transformation from monoclinic to tetragonal and then to cubic. These changes increase zirconia’s volume, causing your ceramic material to crack or fracture. Yttria stabilizes the zirconia’s high-temperature crystal phases, preventing your material from transforming from tetragonal or cubic to monoclinic. This makes your material’s structure more stable and durable under stress.
Yttria Stabilized Zirconia Phase Diagram
-
Zirconia’s monoclinic, tetragonal, or cubic composition influences your material’s performance. The yttria content in mol% determines which crystal phases dominate and how stable your material is. <3 mol% Y2O3 is primarily tetragonal, which is partially stabilized. ~3 mol% Y2O3 (3YSZ) is toughened with retained tetragonal phase. And ~8 mol% Y2O3 (8YSZ) has a fully cubic structure.
Why Is Yttria Stabilized Zirconia Important To Your Industry Application?
Yttria can lock zirconia into the phase your industry requires, making it important in high-temperature and high-stress uses. Yttria Stabilized Zirconia offers the mechanical integrity, resistance to corrosion, and electrical functionality that your industry demands.
Our fuel cell lifespan was boosted by 45% after switching to Yttrium Zirconia. We no longer face the delamination issues we had with calcia.”
— Jackt V., Lead at R&D Energy Solutions Ltd.
Properties of Zirconia Yttria That Benefit Your Industrial Use
Mechanical Resilience Your Industry Can Rely On
-
Yttria-stabilized zirconia maintains mechanical properties such as high toughness and hardness, wear resistance, and hardness. These properties make it dependable in your aerospace, load-bearing, automotive, and tooling industry applications.
Yttria Stabilized Thermal Properties Benefit for Your Process
-
Yttrium zirconia offers thermal properties such as thermal shock resistance, high temperature resistance, and low thermal conductivity. These properties make YSZ ideal for your applications in engines, thermal barrier coatings, and the furnaces industry.
Yttria Zirconia’s Ionic Conductivity
-
Yttria Stabilized Zirconia has high ionic conductivity, making it efficient in transporting oxygen ions. This makes YSZ ideal in your industry operations that work under elevated temperatures, such as solid oxide fuel cells.
Chemical Properties Advantage For Your Application
-
Yttria stabilized zirconia is resistant to chemical corrosion, chemically stable, and highly biocompatible. YSZ has a higher lifespan, minimal ion release, and reliability, making it ideal for your applications such as dental implants.
More Cost-Effective, Widely Available, and Versatile for Your Industrial Uses
Yttria Stabilized Zirconia is widely available globally because of its streamlined production and high industry demand. When you factor in its durability, mechanical stability, and conductivity, YSZ has a balanced performance-to-cost ratio.
“We switched from alumina inserts to yttria zirconia, and wear life increased by 42.5%. It’s more expensive up front, but it paid for itself in later savings.”
— Xhang M., Maintenance Supervisor, Appex Mining
Applications of Yttrium Stabilized Zirconia Across Various Industries
In Your Thermal Barrier Coatings Industry
-
Yttria Stabilized Zirconia possesses low thermal conductivity properties that protect critical engine components at high service operation, even at extreme temperatures and corrosion environments. 8YSZ is therefore used as a thermal barrier coating on your turbine blades and exhaust parts.

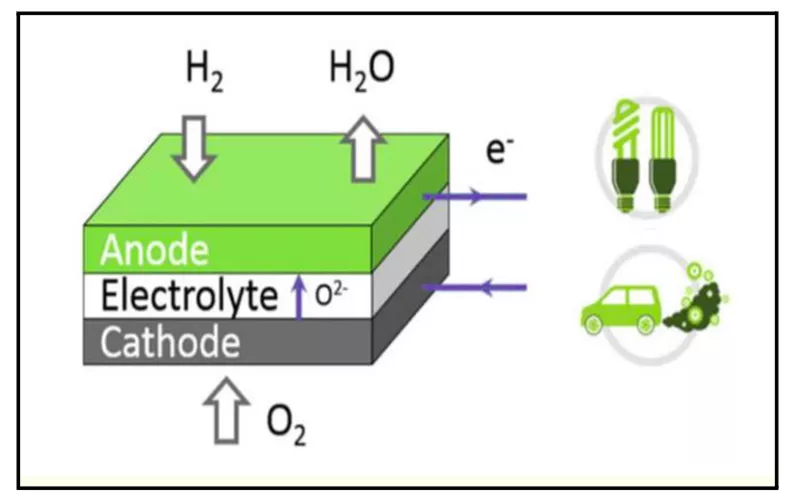

In Your Solid Oxide Fuel Cells (SOFCs)
-
Zirconia Yttria possesses high conductivity of oxygen ions and thermal stability, which is the required solid electrolyte property. 8 mol% yttria retains the cubic phase of zirconia that creates high oxygen ion vacancy concentration, making 8YSZ widely used as the electrolyte in your solid oxide fuel cells.
In Your Dental Implants and Crowns Industry
-
3YSZ offers mechanical properties such as high strength and bio-compatibility. It also shows wear-resistance, aesthetics, and high corrosion, which are necessary properties in your Bio ceramics. These properties make yttrium zirconia ideal for your crowns, bridges, and abutment industry applications.
In Your Abrasives and Cutting Tools Industry
-
Yttria stabilized zirconia has high hardness and wear-resistance, making it durable in harsh environments. This makes YSZ ideal for your abrasives like grinding media, surface polishing, and cutting applications.
How Yttria Stabilized Zirconia Compares To Other Stabilizers
|
STABILIZER |
PHASE STABILITY |
IONIC CONDUCTANCE |
THERMAL CONDUCTANCE |
APPLICATION/ COST |
|
Yttria (Y2O3) |
Excellent |
High |
Low |
Versatile |
|
Magnesia (MGO) |
Less Stable |
Moderate |
Higher |
Basic Structural use only |
|
Calcia (CaO) |
Low |
Low |
Higher |
Low-cost uses |
|
Ceria (CeO2) |
High |
Very High |
Moderate |
Expensive |
How to Choose Yttrium Stabilized Zirconia and Where to Buy
-
When choosing the YSZ to purchase, consider the yttria content; buy 3YSZ if your industry needs mechanical properties, or 8YSZ if it needs ionic conduction. Also, consider the grain size for strength and conductivity differences based on your application needs, as well as the form of the component.
-
When buying, look for a reliable supplier, like the Gorgeous Ceramics Group, that provides technical support, flexibility, and consistency.
“We chose Gorgeous Group as our YSZ supplier after requesting pilot samples. Their coating quality matched what our product needed.”
— Yu T.., Procurement Manager, Jetthermal Industries
Conclusion And Your Takeaway
Yttria stabilized zirconia offers the high performance your application needs. Whether your industry demands thermal insulation, conductivity, hardness, or toughness, YSZ offers reliability under stress that other stabilizers can’t match. Request a sample batch today from a trusted YSZ supplier, test the properties your application needs, and elevate your product’s performance and ROI.
FAQs
Why is Yttria a better stabilizer for zirconia than the others?
Yttria stands out for balancing phase stability, ionic conductivity, and low thermal conductivity.
What’s the yttria stabilized zirconia density and thermal conductivity?
YSZ density is 6.0–6.1 g/cm3, and the thermal conductivity is ~2 W/mK for 8YSZ.
What forms of stabilized zirconia exist?
Forms of stabilized zirconia include 3YSZ and 8YSZ. There are also variants using calcia, magnesia, or ceria.
