Zirconia Ceramic Pump Plunger
|
Product number |
GGSCP-Z1 |
|
Size |
custom made |
|
Material |
Zirconia |
|
Density |
6.02g/cm3 |

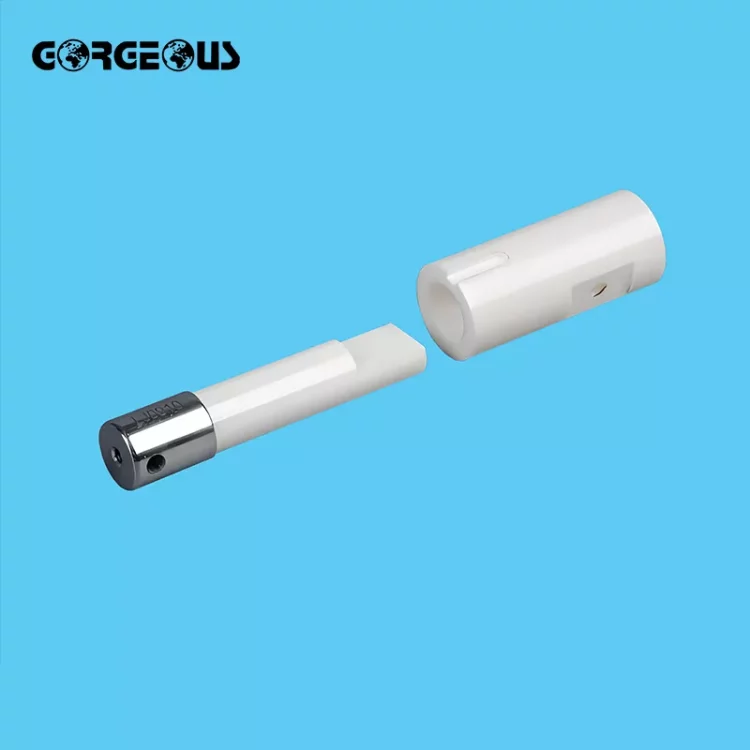

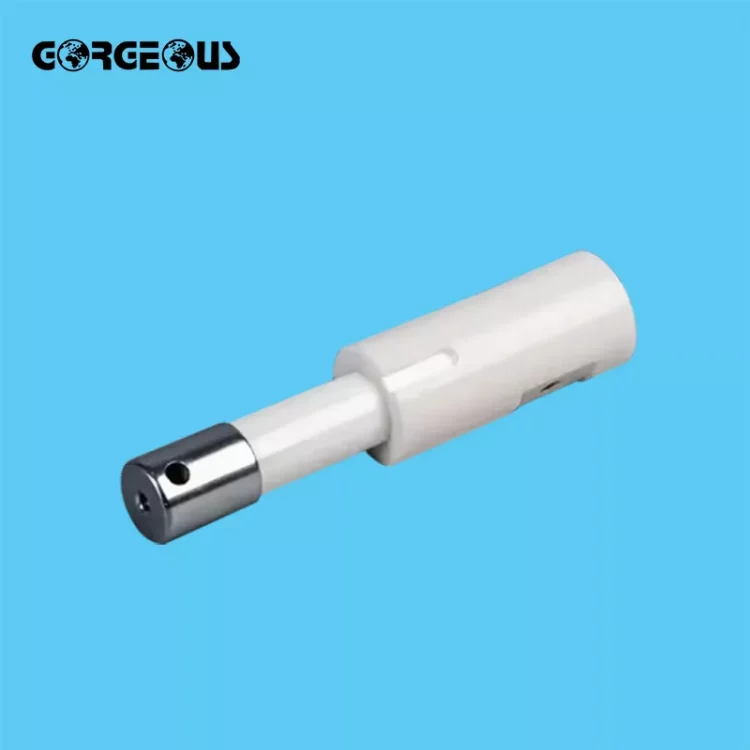

We provide customized services for zirconium oxide ceramic plungers, using high-quality zirconium oxide as raw material to create wear-resistant and corrosion-resistant ceramic plungers for you.
The plunger accuracy we manufacture can reach ±0.001mm. At the same time, the low friction coefficient and light weight can greatly extend the service life and reduce energy consumption!
The product pictures are just for your reference. We offer a wide variety of customized solutions. You only need to send us the drawings and our professionals will be at your service at any time! If you need high-quality ceramic plungers, please contact us immediately.
Characteristics of Zirconia Ceramics
Zirconia has a high density and is harder than alumina. It is also more wear-resistant than most metal materials, 266 times that of manganese steel. Plunger is often used in various strong wear environments, and using zirconia is your best choice!
|
Product name |
Zirconia |
|
|
density |
g/cm3 |
5.9-6.02 |
|
water absorption |
% |
0 |
|
thermal expansion coefficient |
10-6/k |
10.5 |
|
Rockwell hardness HRC |
MPa |
88-90 |
|
Bending strength |
MPa |
1200 |
|
Compressive strength |
MPa |
2000 |
|
Fracture toughness |
MPa.m1/2 |
10 |
|
Thermal conductivity |
W/m.k |
2 |
|
Maximum operating temperature |
℃ |
1350 |
Our processing Accuracy
|
Dimensional accuracy |
Up to 0.001mm |
|
Finish |
Up to mirror surface |
|
Concentricity |
Up to 0.003mm |
|
Parallelism |
Up to 0.002mm |
|
Inner hole tolerance |
Can process 0.005mm |
|
Straight slot |
Can process groove width up to 0.1×100mm |
|
Thickness |
Can be processed to 0.3mm |
|
Thread |
Can process internal thread M2, external thread is not limited |
|
Cylindricity |
Up to 0.004mm |
|
Linear tolerance |
Up to 0.001mm |
|
Minimum aperture |
Processable 0.5mm (mold opening 0.1mm) |
Our After-Sales Service
GORGEOUS’s high-quality after-sales service is well-known in the industry. We value integrity and strive to have long-term cooperation with customers!
Our professional engineers will advise you on how to assemble, use, clean, and disinfect the ceramic pump plunger to give your ceramic plunger the longest service life.
We carefully package your products, and we will compensate you for damage and serious quality problems!
If you need a customized zirconia ceramic plunger, please contact us immediately!
