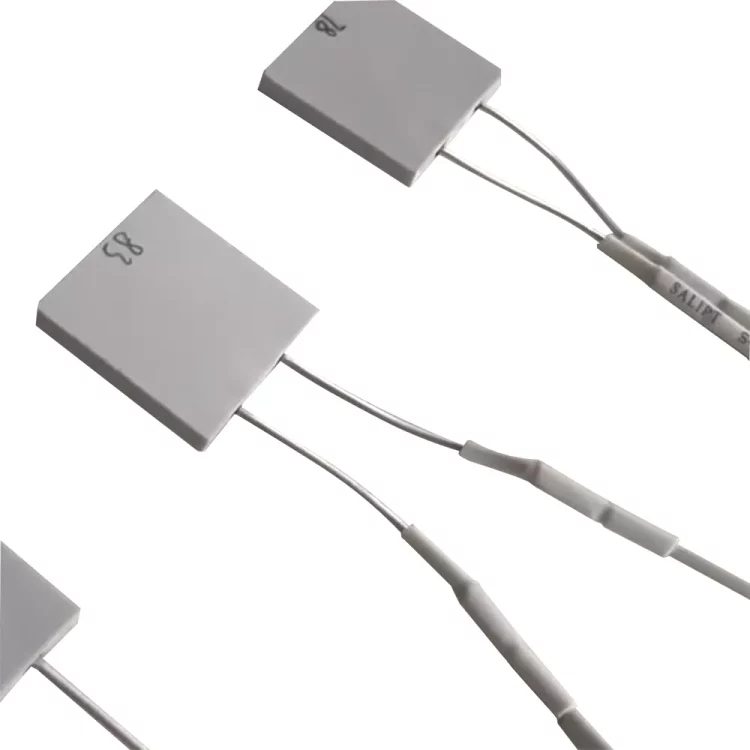

Small-volume 600℃ Alumina Ceramic Heating Element

GORGEOUS CERAMICS is an advanced high-tech enterprise integrating product development, production, and sales.

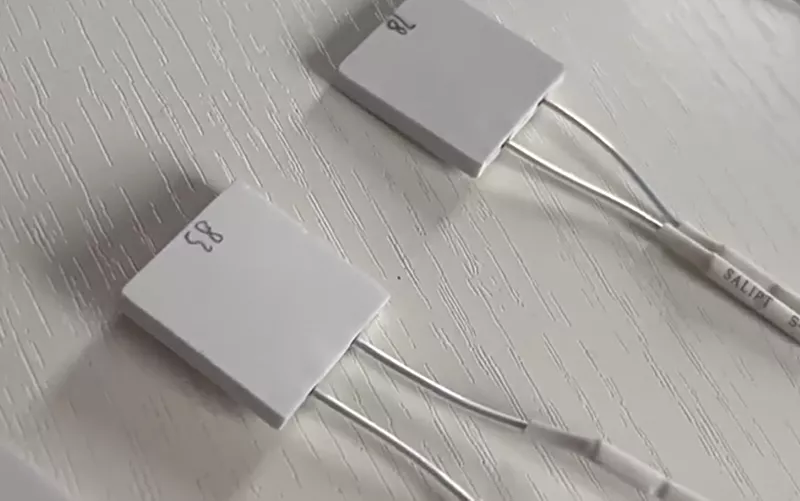

The 19*19*3.0mm small-volume 600℃ alumina ceramic heating element is a new type of heating element produced by directly printing heating resistance material onto alumina green blank through multiple layers, undergoing a series of special processes, and finally firing at a high temperature of around 1600°C.

Ceramic heating element parameters and specifications

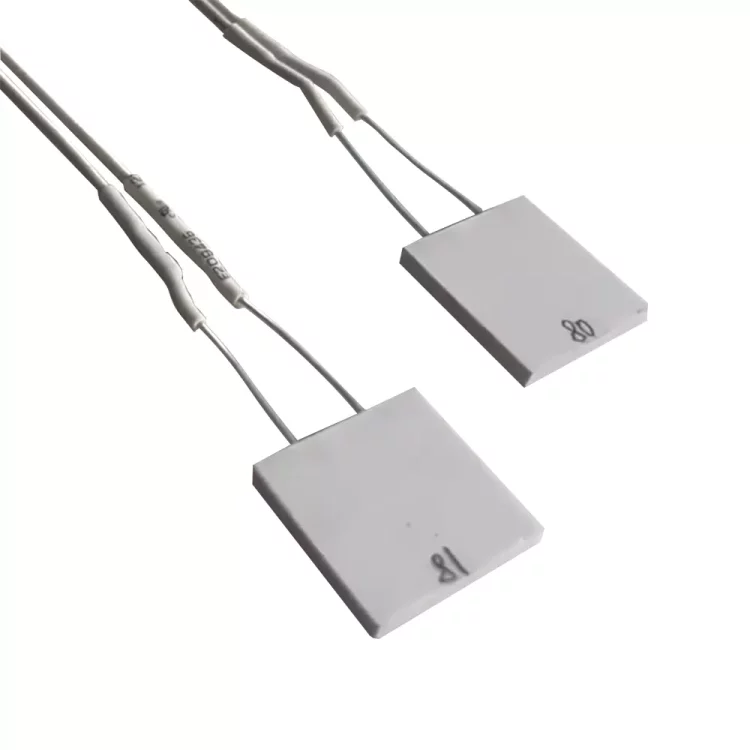

Below are the basic specifications of the 19*19*3.0mm thick (75-80Ω) alumina ceramic heating elements supplied by GORGEOUS CERAMICS. We can customize the size, power, voltage, etc. of the heating elements according to your application to meet your different application needs.

Advantages of alumina ceramic heating elements

Small size and high thermal efficiency

GORGEOUS CERAMICS’ alumina ceramic heating elements use high-quality alumina raw materials and encapsulate the heating circuitry within the ceramic using a high-temperature co-firing process. Our heating elements are small in size and boast high power density, measuring 19×19×3.0mm, enabling you to heat up quickly in a short time.

Compared to traditional resistance wire or PTC heating, our ceramic heaters can save approximately 20–30% of energy consumption.

High mechanical strength, robust and pressure resistant

Alumina ceramics have excellent mechanical properties. This high-strength structure allows ceramic heating elements to maintain excellent stability in high-temperature, vibration, or complex working conditions, and they are not easily deformed or damaged.

Good insulation makes the product safer

Alumina has excellent electrical insulation properties, with an insulation resistance of ≥100 MΩ. The heating circuit is completely encapsulated inside the ceramic, so that there is no electrical charge on the surface of the heating element.

Long lifespan and stable operation

Under normal conditions, the average lifespan of ceramic heating elements is ≥10,000 hours, and in some environments it can reach 20,000–50,000 hours.

Our products feature reinforced wiring and ceramic connection wires to prevent breakage and adhesive detachment, which could affect the normal heating operation of the equipment.

Product Uses

GORGEOUS CERAMICS’ small-volume alumina ceramic heating elements are miniature, high-power-density heating elements primarily used in compact, modular devices requiring rapid heating.

Main applications include: ceramic heating cores for electronic cigarettes, gas sensor heating, 3D printer nozzles, infusion warmers, medical sample heaters, food sealing machines, foam cutters, plastic hot knives, infrared thermal imagers, PCR nuclear testing instruments, and new energy batteries.

Precautions

The product’s temperature data is based on actual measurements under dry-burning conditions. It is prone to damage when the temperature exceeds 18V or 500℃.
