GGS specializes in the production and sale of Aluminiumoxid/Zirkonoxid Und Siliziumnitridkeramik heating elements for oxygen sensors. For over a decade, we have focused on heating element solutions. In addition to our existing heating elements, we also offer customized services, allowing customers to tailor various heating solutions with the assistance of our professional team.

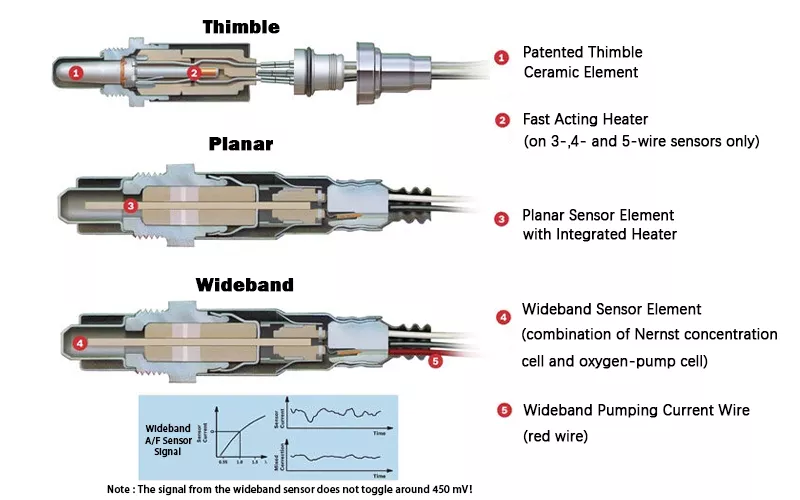

Our heaters can be used in automotive oxygen sensors to detect vehicle exhaust emissions. Because the temperature rises rapidly, the sensor can be activated immediately after the engine starts, providing useful feedback to reduce emissions.

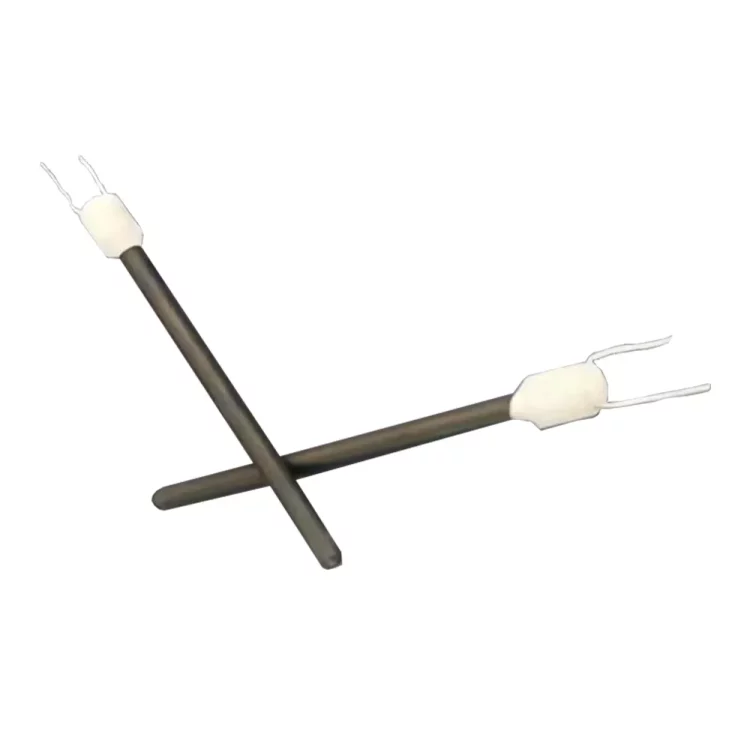

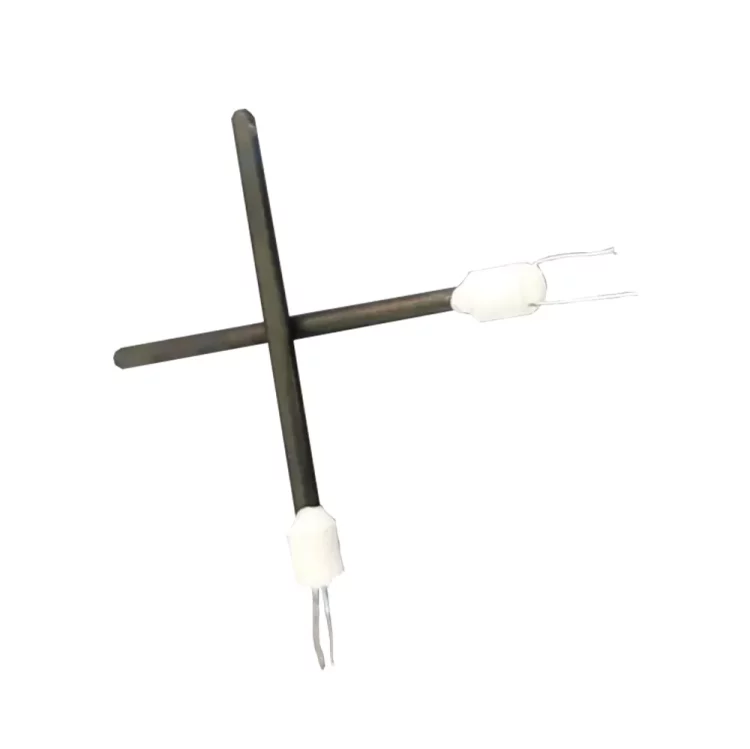

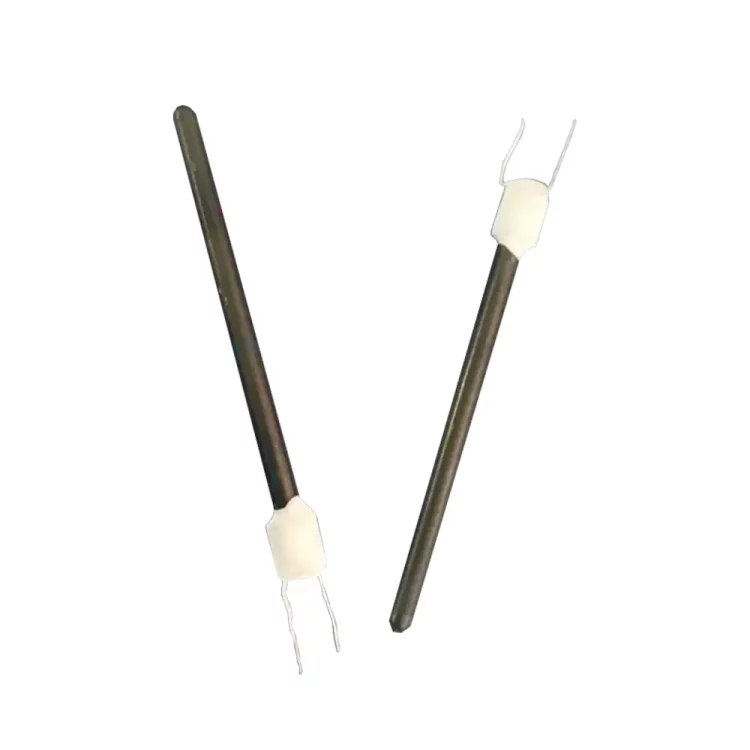

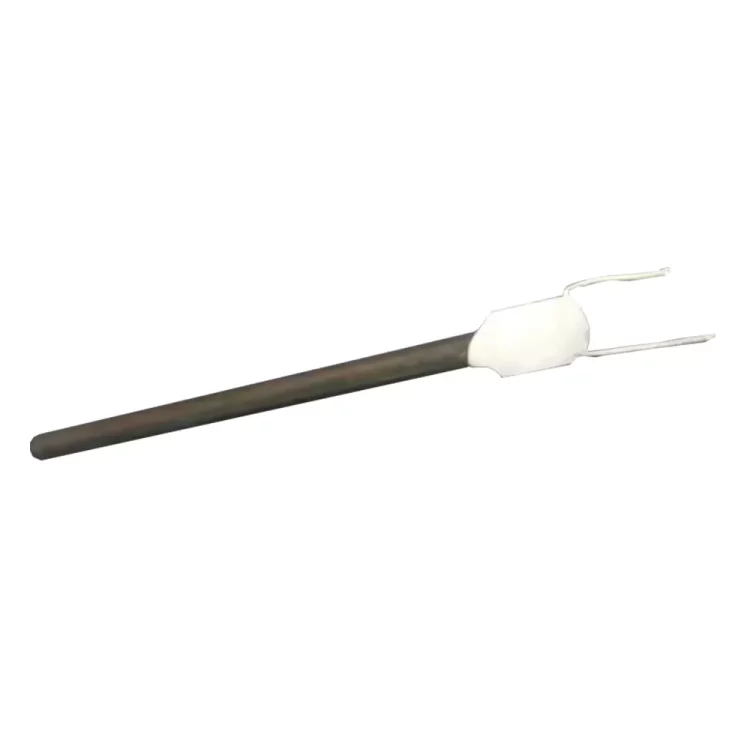

Parameters of Silicon Nitride Oxygen Sensor Ceramic Heating Element
|
Heater Name |
Silicon nitride oxygen sensor ceramic heating element |
|
Operating Voltage |
12V |
|
Model Name |
XH5830TG |
|
Größe |
Length 58 * Diameter 3.1 |
|
Widerstand |
0.6~1.2Ω |
|
Farbe |
Schwarz |
|
Material |
Siliziumnitrid |
|
Lead |
Nickel wire |
|
Heating Time |
Reaching 850°C within 7 seconds |
|
Betriebstemperatur |
1200+/-100℃ |
|
Anwendung |
Automotive oxygen sensor heating element |
