Ceramic Igniter

We supply high-quality ceramic igniters made from materials such as alumina, silicon carbide, and silicon carbide. They are energy-efficient, efficient, and heat up quickly.
We offer a diverse range of high-quality custom services and competitive wholesale pricing.

Diversified Ceramic Igniter Supply

Ceramic igniters are widely used in gas wall-mounted boilers, biomass pellet stoves, industrial kilns, burners, and commercial kitchen equipment. Compared to traditional wire igniters, ceramic igniters offer advantages such as faster heating, high temperature resistance, long life, and excellent thermal shock resistance.

GORGEOUS offers ignition solutions made of alumina, silicon nitride, and silicon carbide to meet your diverse application needs.

Fast heating: Reaching ignition temperature within 10 seconds
High heat resistance: Long-term operation at 800–1,200°C
Long life: ≥30,000–100,000 on-off cycles
Various customization options: Available in rod, sheet, U-shaped, L-shaped, and needle shapes, with an alumina insulated base and high-temperature-resistant leads.

Supply Ceramic Igniters of Different Materials

Verschiedene Materialien stehen zur individuellen Gestaltung zur Verfügung

We offer customers a variety of customized solutions and a variety of materials to choose from, such as alumina, silicon carbide, silicon nitride and other common ceramic igniter materials.

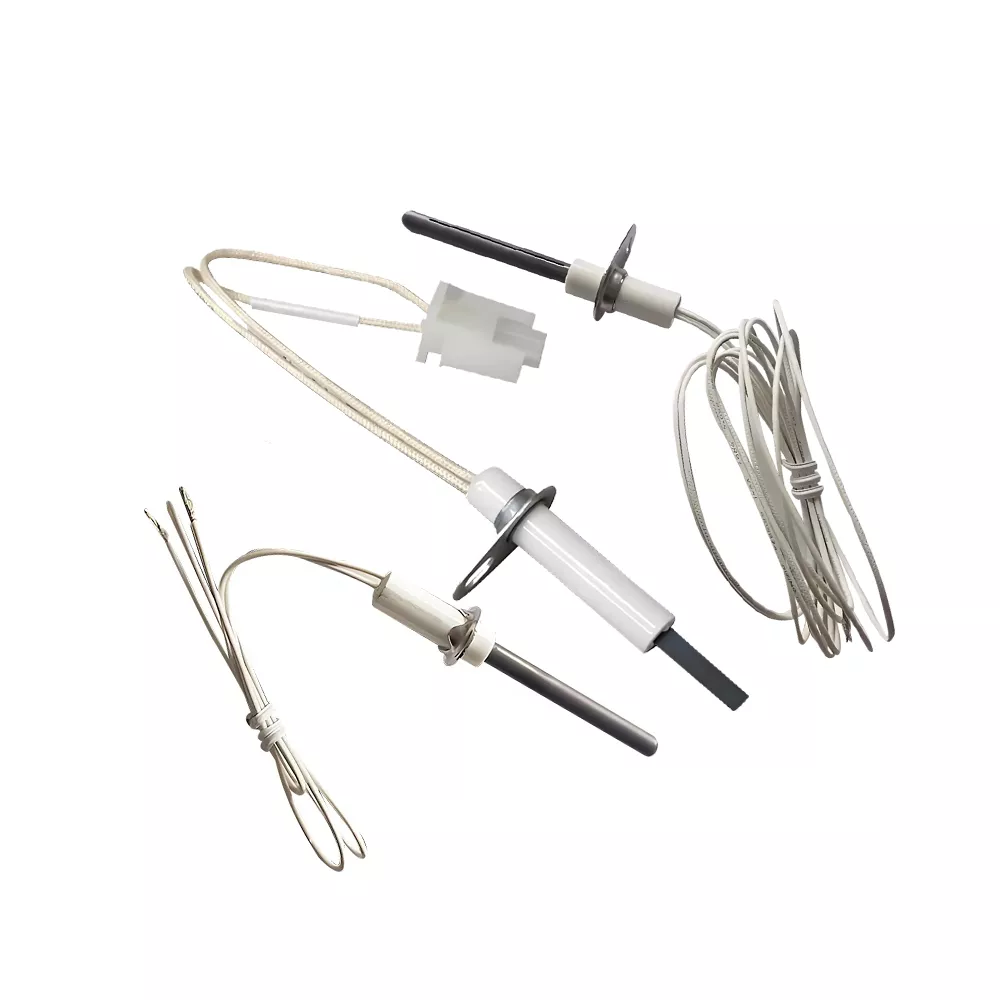

Siliziumnitrid-Zünder

It will not short-circuit in the event of contact with ash or pipe rack; its resistance to mechanical shock is twice that of ordinary ceramic igniters; it has high resistance to burning particles.

Alumina Igniter

The operating temperature can reach over 800℃, it is energy-saving, has ultra-fast heating, and has high load-bearing capacity (resistance to thermal shock and cycling), and can be customized according to needs.

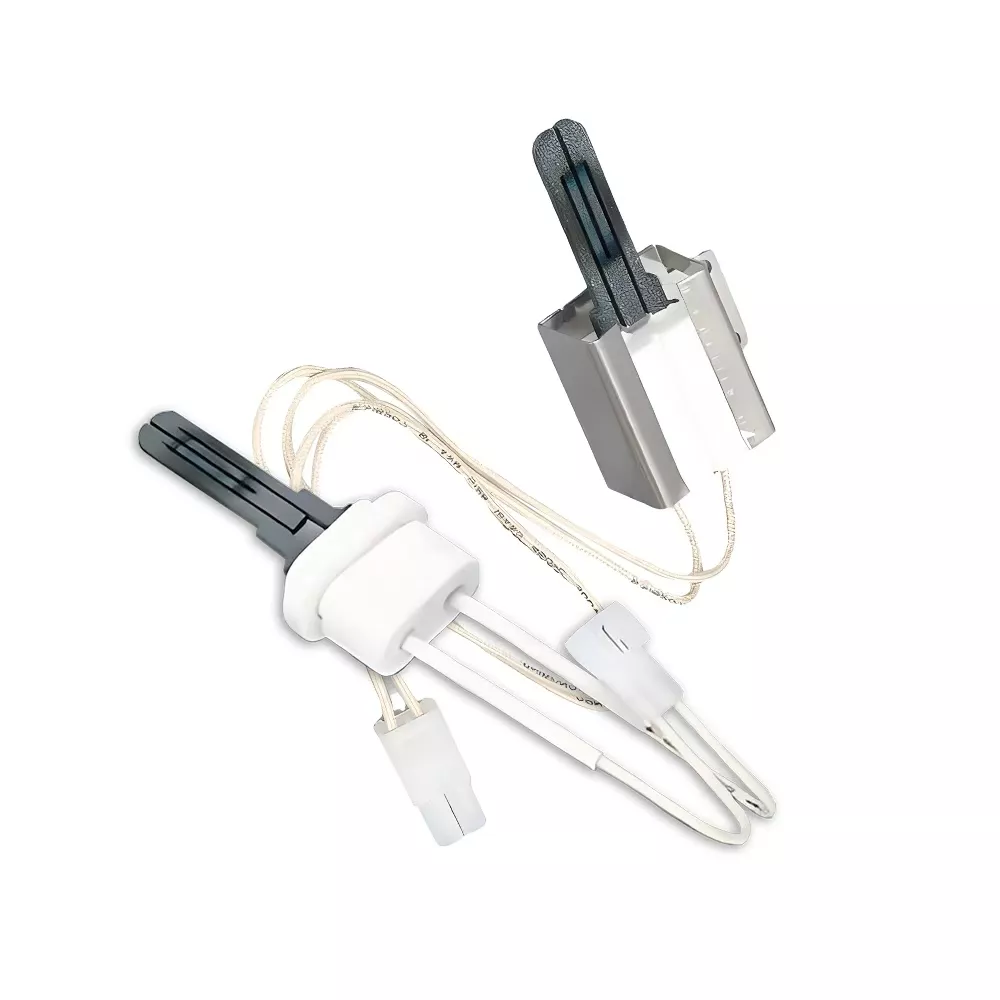

Silicon Carbide Igniter

It operates stably at temperatures exceeding 1000°C, has fast response and excellent oxidation resistance, achieves efficient ignition, and has a long service life. It can be customized according to customer needs.





Supply Ceramic Igniters for Different Purposes

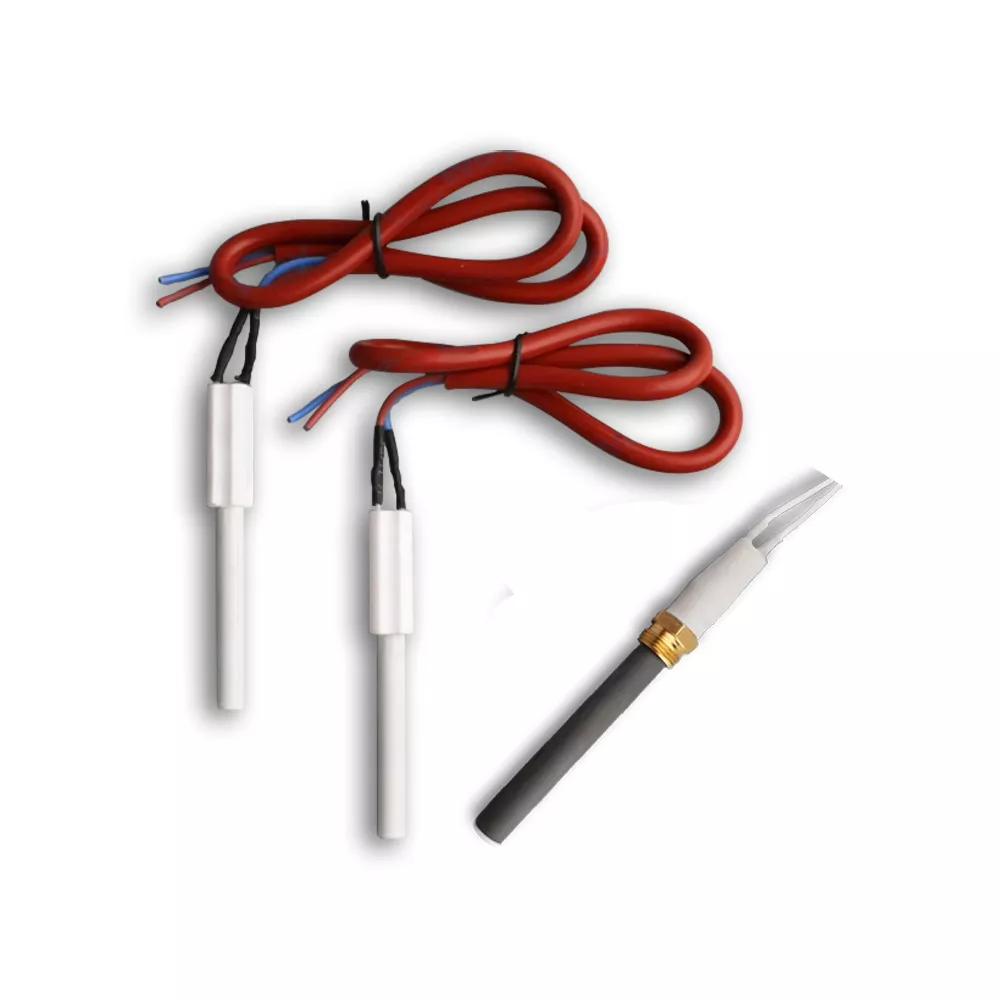

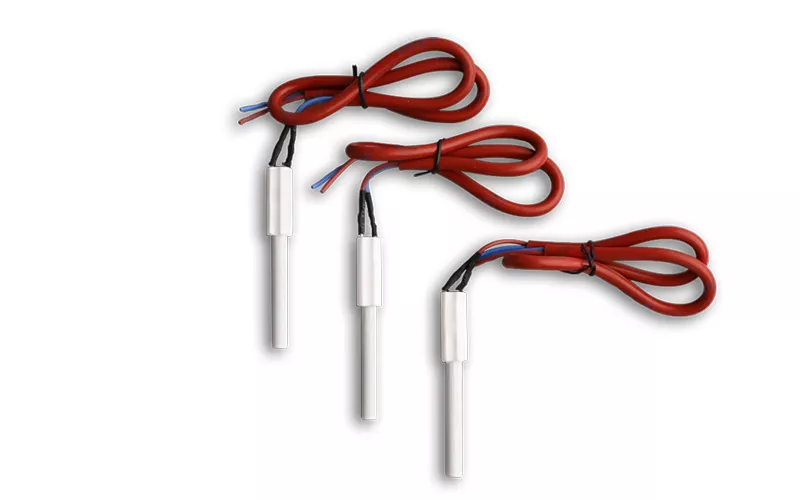

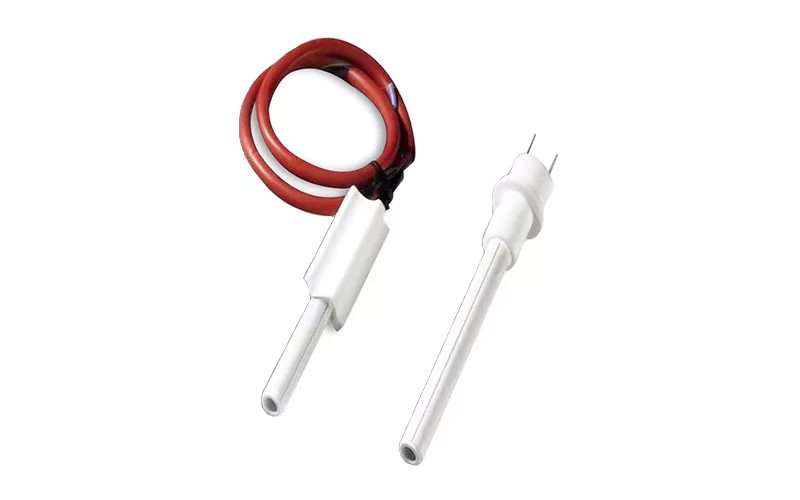

Biomass Stove Pellet Burner Ceramic Ignition Rod

The surface temperature of the ceramic pellet igniter reaches 800°C in 60-90 seconds. This pellet igniter offers exceptional durability, silent heating, and contains no harmful substances, making it environmentally friendly and suitable for a variety of heat setting applications.

Main Material: 95% alumina ceramic
Power Supply: 120V or 230V
Power: 150W-350W
Dimensions: 94*10.5mm/108mm*11.5mm (customizable)
Maximum Temperature: 1050°C
OEM/ODM: Available

Biomass Stove Pellet Burner Ceramic Ignition Rod

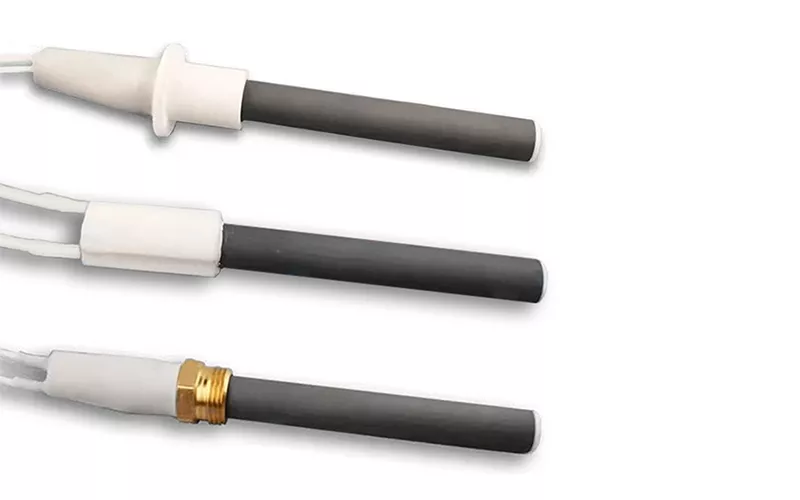

300W black alumina ignition rod

300w Black Alumina Ceramic Igniter

This ceramic igniter is primarily used in biomass combustion systems, particularly pellet stoves and barbecue grills. It offers high ignition efficiency (over 90%) and is very easy to install before operation.

Ceramic flange/copper thread fixing
Dimensions: 11.55mm diameter, 113mm total length, 78mm screw length
Maximum operating temperature: 970°C
Voltage: 230V
Power: 300W
Fully compliant with EU RoHS (free of lead, cadmium, mercury, hexavalent chromium, PCBS, and other hazardous substances)

MCH Alumina Biomass Boiler Igniter

This type of igniter offers a compact design, high power, and fast heating speed, providing greater reliability than ever before.

Ceramic base: 17.5mm/25mm (customizable)
Betriebsspannung: 120V ±10% or 230V ±10%
Heating element: 95% Aluminiumoxid
Nickel wire: N6 nickel wire, 0.8mm diameter

MCH alumina biomass boiler igniter
Durable 300W Si3N4 igniter for fast and stable ignition

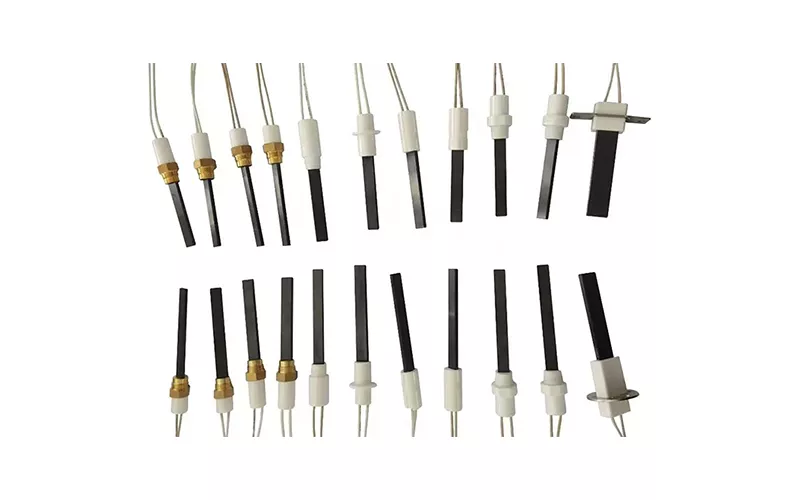

300W Silicon Nitride Igniter

It can quickly reach temperatures between 800°C and 1200°C in seconds. It ignites the fuel primarily through direct heat transfer or forced air heating. It is compact, high-temperature resistant, and offers excellent electrical insulation and voltage resistance, with no resistance aging or power loss.

Betriebsspannung: AC 220-240V
Dimensions: 200*200mm (customizable)
Operating temperature: 800-1200°C
Fast heating: Reaching 800-1200°C in 20-50 seconds



Hot Surface Silicon Nitride Igniter

This silicon nitride igniter is ideal for applications such as localized intense heat sources, fuel ignition, light sources, and medical cautery equipment.

Voltage: 120V & 230V
Power Rating: 100W
Element Material: Siliziumnitrid
Cable Type: Mylar 450°C

Hot Surface Silicon Nitride Igniter

Warum sollten Sie sich für die kundenspezifischen Keramikheizungen von GORGEOUS entscheiden?

GORGEOUS has 15 years of experience in ceramic manufacturing, allowing us to provide customers with higher-quality ceramic igniters.
Are you concerned about minimum order quantities? We offer custom orders as low as one piece to accommodate smaller orders.

We offer a wide range of high-quality ceramic igniters to provide the best solution for your heating application.

FAQs

How does a ceramic igniter work?

Ceramic igniters rapidly heat up when powered, reaching surface temperatures exceeding 1000°C within seconds. This ignites gas or fuel, achieving efficient and stable ignition.

What applications are ceramic igniters suitable for?

They can be widely used in household gas stoves, water heaters, gas boilers, industrial kilns, barbecue grills, gas fireplaces, gas fan heaters, and agricultural and environmental protection equipment.

What are the differences between ceramic and metal igniters?

Ceramic igniters are more heat-resistant and have a longer lifespan, while metal igniters are susceptible to oxidation and have a shorter lifespan.
Ceramic igniters ignite faster and are suitable for energy-efficient equipment. Ceramic is also a highly insulating material, making it safer and more reliable.

Does a ceramic igniter require maintenance?

Ceramic igniters require virtually no maintenance. To maintain optimal ignition, simply keep the igniter surface clean and free of oil, dust, or combustion residue.

Can ceramic igniters be customized?

GORGEOUS can customize ceramic igniters in various shapes, sizes, voltages, and wattages to suit your specific combustion systems.
