Advanced Manufacturing Supplier of Custom Ceramic Tubes
We offer top-quality Alumina, silicon carbide and other materials of ceramic tubes. We provide diversified and high-quality customized services. Relying on the supply factory of family nanny, we provide highly competitive wholesale prices and customized products (including your LOGO) to improve product quality and meet your customer satisfaction.

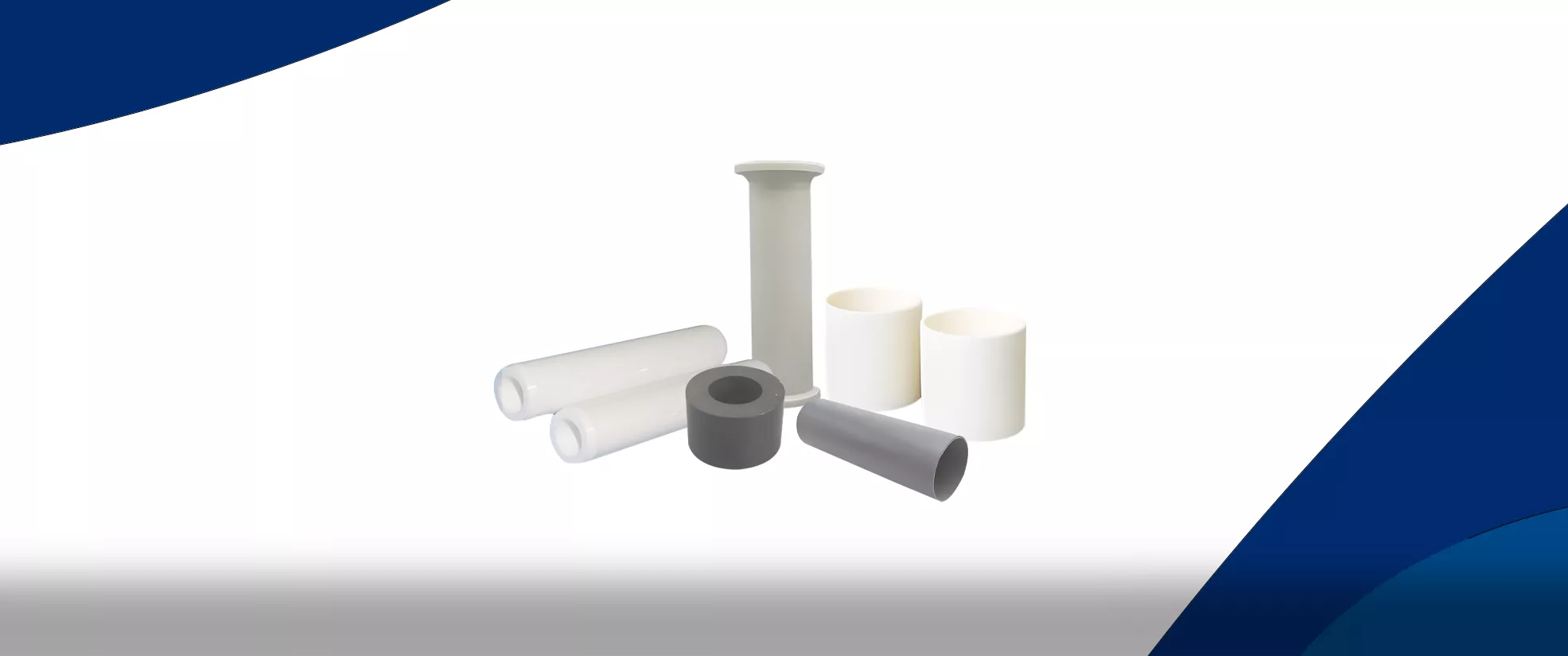

Diversified Ceramic Tube Supply
Ceramic tubes are corrosion-resistant, insulated, non-conductive, and wear-resistant, and are the preferred transmission pipelines for harsh industrial and aviation environments.
We provide you with a wide range of ceramic tubes, with sufficient stock of standard products, and can provide you with services including but not limited to dimensional tolerance, delivery time, purity, price, thickness, surface finish, and material customization.
We provide you with single-hole, double-hole, four-hole, and multi-hole open ceramic tubes. In addition, we also provide single-end closed thermocouple protection tubes, microporous ceramic tubes for filtration, and ceramic tubes for furnaces.
- Size reference range: Φ0.5mm-200mm (customizable)
- Tolerance: standard outer diameter tolerance ±0.2mm~±0.5mm, wall thickness ±0.1mm~±0.2mm
- Surface treatment: polishing, flattening, glazing, mirror Ra≤0.1μm
Standard inventory delivery within 7 days, customized parts delivery within 3-6 weeks
Supply of Ceramic Tubes in Different Materials
A variety of materials are available for customization
We provides customers with a variety of customized solutions and a variety of materials to choose from, including: alumina, zirconium oxide, aluminum nitride, silicon carbide, silicon nitride, beryllium oxide, boron carbide, boron nitride, yttria partially stabilized zirconia, yttria fully stabilized zirconia, etc.
Alumina Tube
Customizable high quality alumina ceramic tubes designed for high temperature industrial and laboratory applications.
Zirconia Tube
Zirconia ceramic tubes, custom made in different shapes, sizes and designs for specialized industrial applications.-
Aluminum Nitride Tube
Aluminum nitride ceramic tubes are available in custom sizes and provide excellent thermal conductivity for demanding applications.
Boron Nitride Tube
Boron nitride ceramic tubes, designed for high temperature and electrical insulation applications, have excellent resistance to thermal shock.
Siliziumnitridrohr
Silicon nitride ceramics offer excellent mechanical strength, wear resistance and thermal shock properties for demanding industrial applications.
Beryllium Oxide Tube
BeO ceramic tubes offer high thermal conductivity and electrical insulation, ideal for electronic thermal management.
Silicon Carbide Tube
SiC tubes have excellent hardness, wear resistance and thermal stability, and are suitable for harsh industrial environments.
Boron Carbide Tube
Lightweight, ultra-hard Boron Carbide Tube are custom-made for wear-resistant, high-performance uses.-------
Why Choose GORGEOUS Custom Ceramic Tube

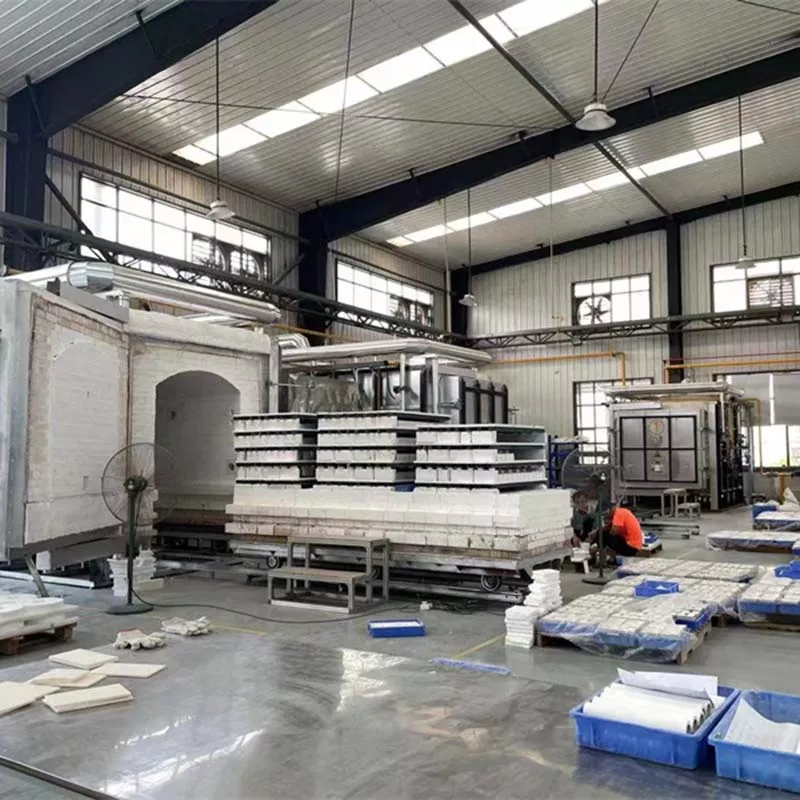

GORGEOUS’s factory has 15 years of experience in ceramic manufacturing. We have obtained ISO9001:2015 quality system certification, IATF 16949:2016 quality system certification, and ISO14001:2015 environmental management system standard certification. This means that GORGEOUS can provide customers with higher quality products and services.
Supply of Ceramic Tubes for Different Applications
Thermoelement-Schutzrohr
GORGEOUS offers custom thermocouple protection tubes in materials including Aluminiumoxid, Siliziumkarbid, and more. These single-ended closed protection tubes protect sensors from direct high temperature exposure and can be stacked for additional insulation.
WUNDERSCHÖN alumina protection tubes feature a one-piece design with no welded ends, making them more rugged and resistant to external atmospheric penetration and excellent in thermal shock resistance, resulting in safer, more reliable, and more accurate temperature measurements.
Poröses Keramikrohr
GORGEOUS provides customized porous ceramic tubes with uniform pore size and filtration efficiency of more than 99%. The filtration accuracy of 0.5-150μm can be customized according to requirements. It is durable and has a long service life and can be cleaned and used repeatedly.
Porous ceramic tubes are often used for filtering some air, gas and liquid, and as catalyst carriers, diffusion and other purposes.
Keramikrohr für Ofen
Ceramic tubes for furnaces are generally used in industrial kilns and heating equipment. The most common type is alumina furnace tubes. Alumina has excellent high temperature resistance (can withstand 1600℃), corrosion resistance and mechanical properties. It can maintain stable operation under high temperature and harsh working conditions such as heat treatment, material sintering, powder metallurgy, etc., and alumina is cheaper than other ceramic materials.
GORGEOUS can customize ceramic tubes of various sizes and port structures according to customer requirements, providing the best solution for customers’ high temperature furnace applications.
Nonporous Alumina Ceramic Tubes
Non-porous alumina ceramic tube is an excellent engineering component. The non-porous tube made of alumina ceramic has significantly improved performance and durability. It is an indispensable component in many harsh environments.
GORGEOUS can provide ultra-high purity dense alumina tubes with a purity of up to 99.97%, precision: Ra 0.1um, tolerance: 0.001mm, to meet customers’ high-precision applications.
