GORGEOUS CERAMIC’s ceramic heating elements for soldering stations heat from room temperature to operating temperature in approximately 18 seconds, helping you achieve significantly higher efficiency. With a maximum temperature of 750°F (approximately 400°C), they meet the requirements of most soldering applications.
They offer a wider power output range, providing a stable heat output of 60W–90W, and precise temperature control makes them suitable for a variety of brazing tasks.
Our products are specially optimized for the Milwaukee series of soldering stations for easy and quick installation.
Material Properties of Ceramic Heating Elements for Wireless Soldering Stations
|
Thing |
Test Conditions |
Jednostka |
Standard |
|
Kolor |
|
|
white |
|
Gęstość |
|
g/cm³ |
3.7 |
|
Water Absorption Rate |
|
% |
0 |
|
Średnia wielkość ziarna |
|
micrometer |
3~5 |
|
Twardość |
Load 4.9N 4.9N |
GPa |
≥15 |
|
Wytrzymałość na zginanie |
|
MPa |
≥274 |
|
Coefficient of Linear Expansion |
20~500℃ |
1×10-6mm/℃ |
6.5~7.5 |
|
20~800℃ |
6.5~8.0 |
||
|
Przewodność cieplna |
20℃ |
W/(m·K) |
≥20.9 |
|
Ciepło właściwe |
|
kJ/(kg·K) |
≥0.8 |
|
Insulation Strength |
|
kV/mm |
≥12 |
|
Rezystywność objętościowa |
20℃ |
Ω·cm |
≥1014 |
|
300℃ |
≥1011 |
||
|
500℃ |
≥109 |
||
|
Stała dielektryczna |
1 MHz |
|
9~10 |
|
Dielectric Loss Tangent |
1 MHz |
|
≤3×10-4 |
|
Chropowatość powierzchni |
|
μM |
0.3~0.8 |

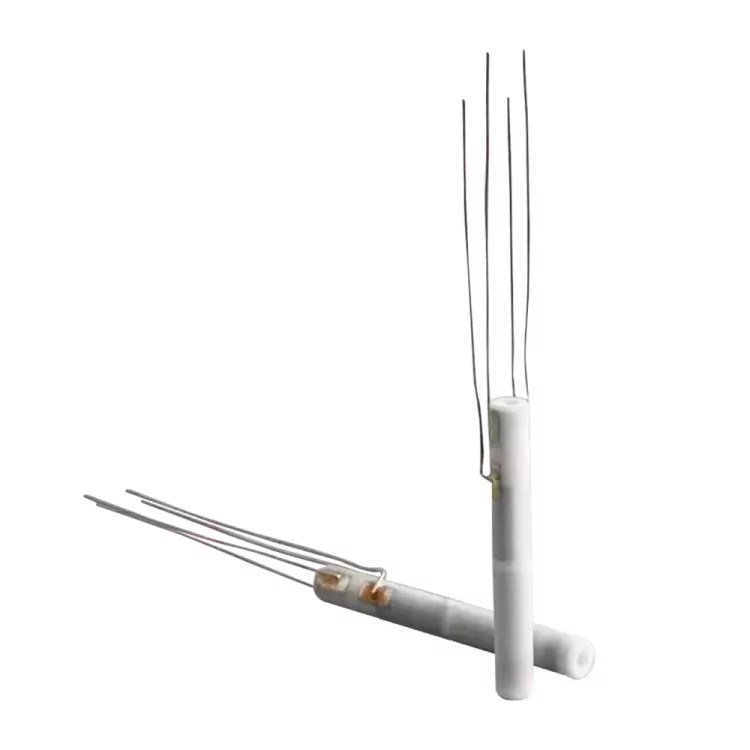

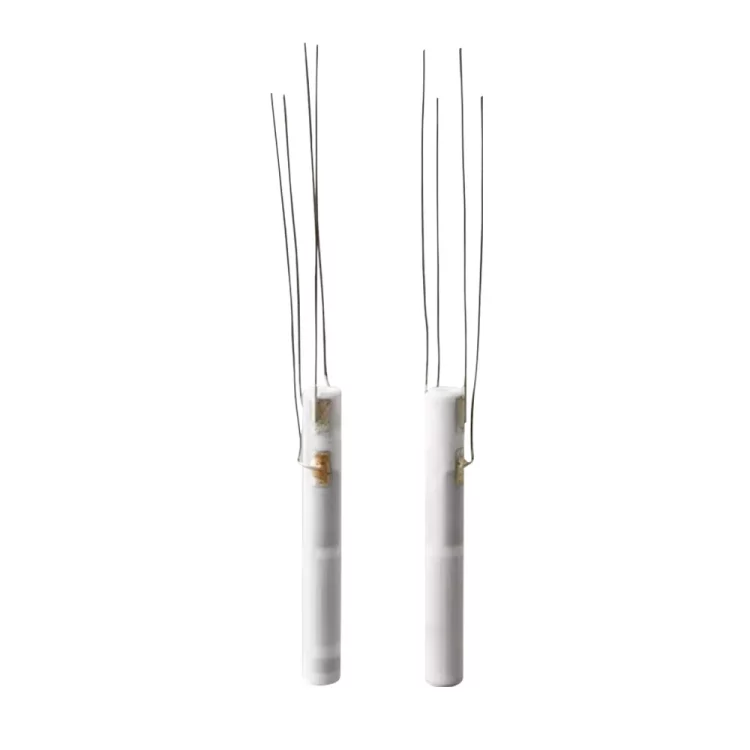

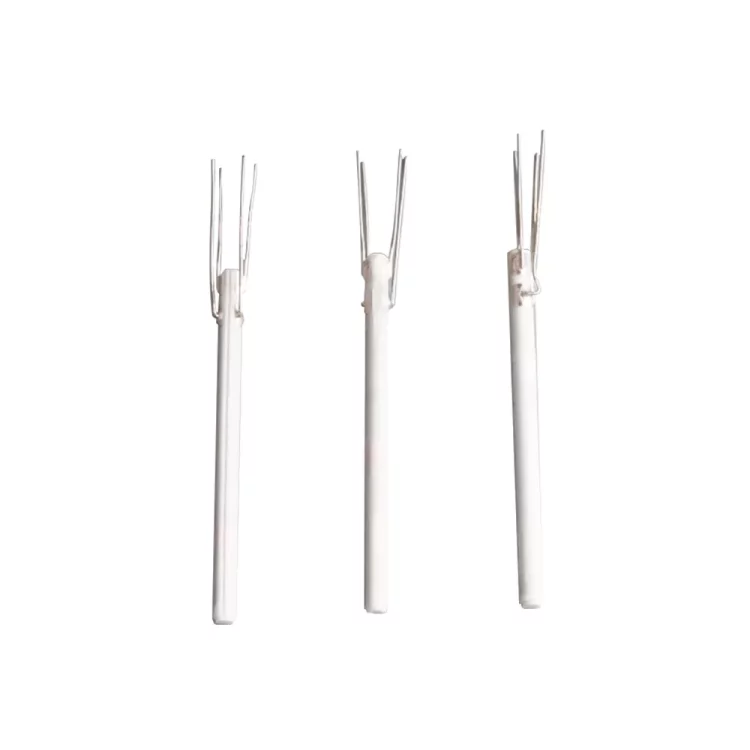

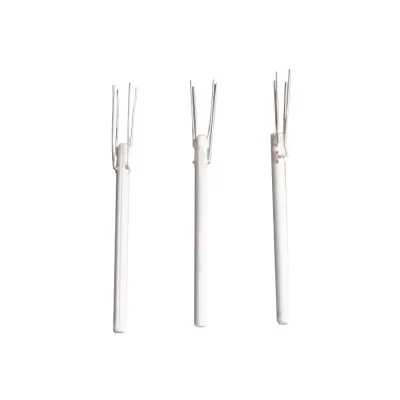

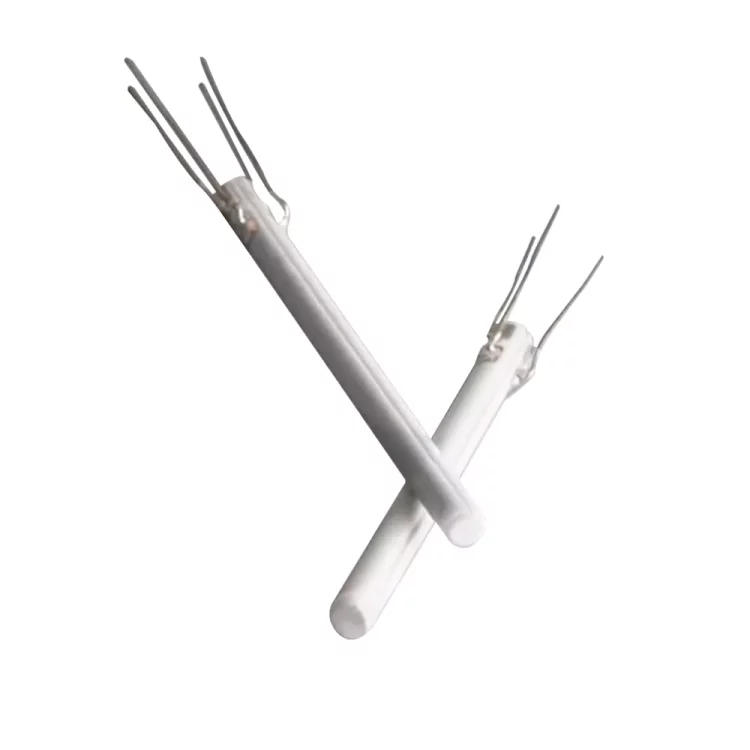

Electrical Parameters of Ceramic Heating Elements
|
Heater Name |
Ceramic heating element for Milwaukee soldering iron |
|
Operating Voltage |
12V |
|
Power |
60W~90W |
|
Rozmiar |
Length 60mm * Diameter 3.8mm |
|
Lead |
Four nickel wires |
|
Temperatura pracy |
400~500℃ |
|
insulating Sleeve |
According to customer needs |

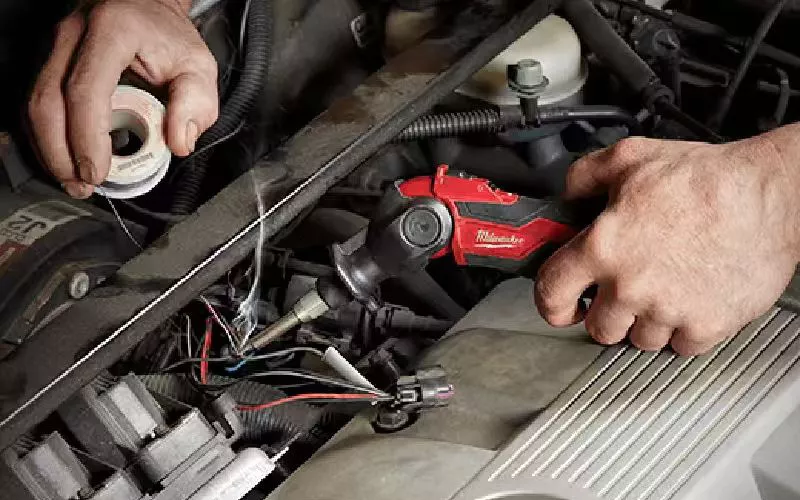

Aplikacja
Electronic circuit soldering, component soldering, home appliance repair, DIY projects, etc.Compatible with Milwaukee series soldering stations.
