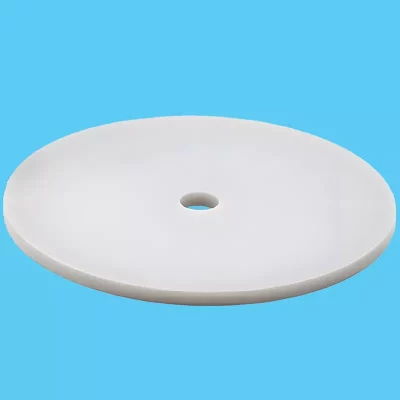

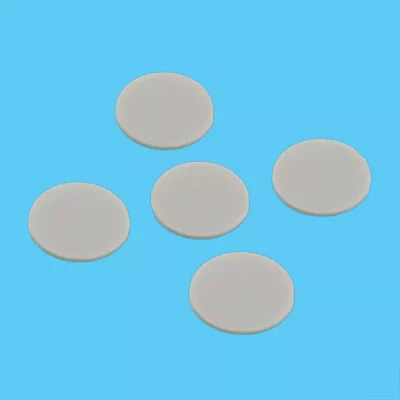

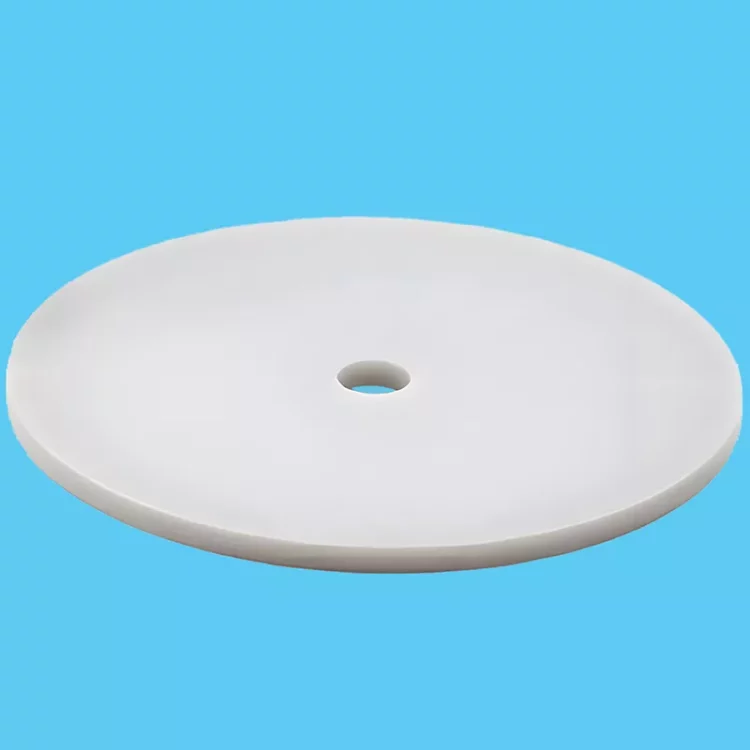

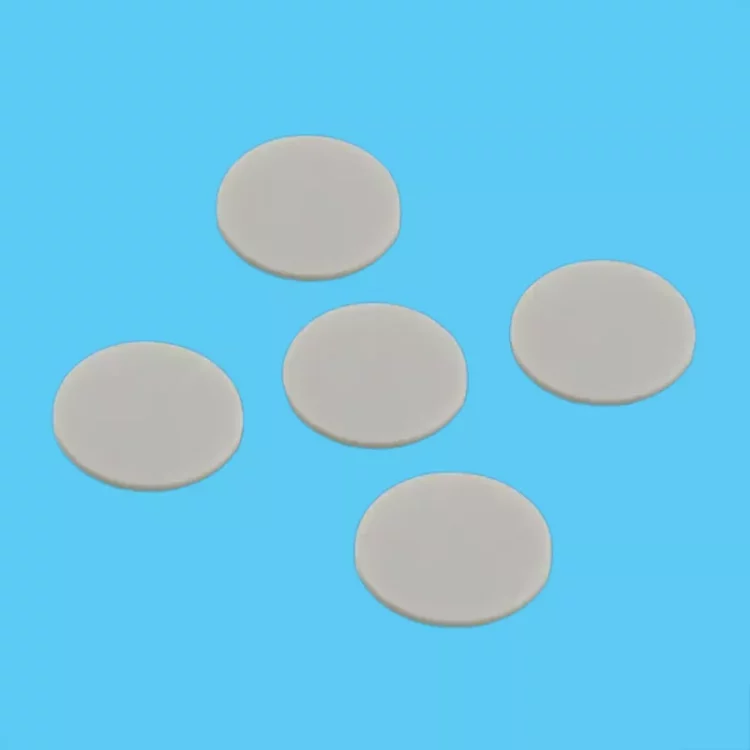

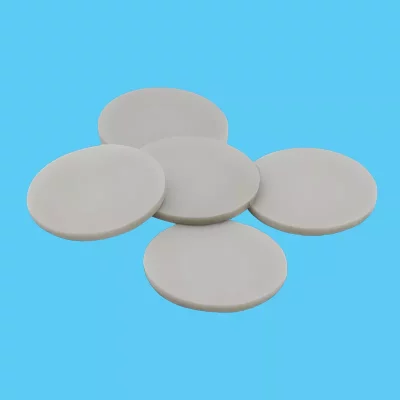

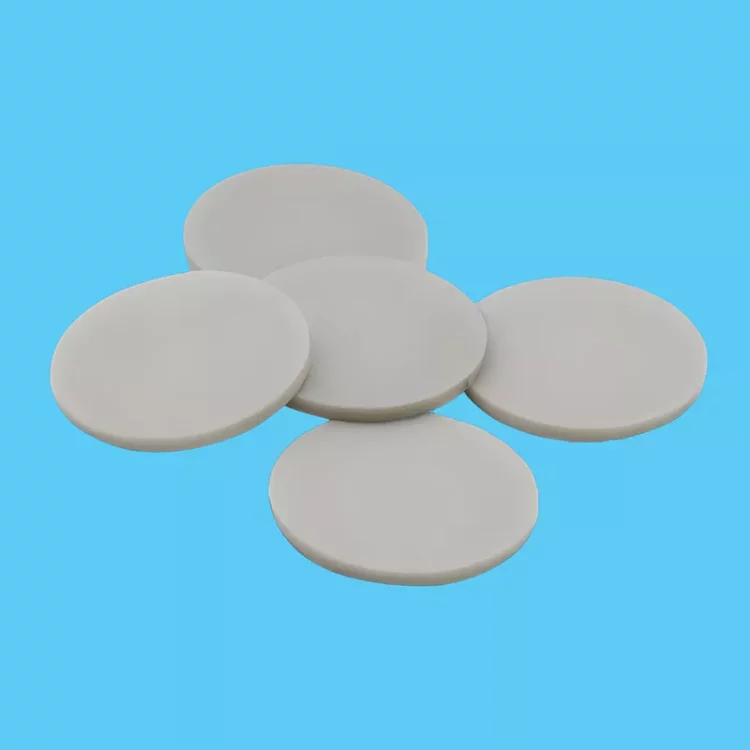

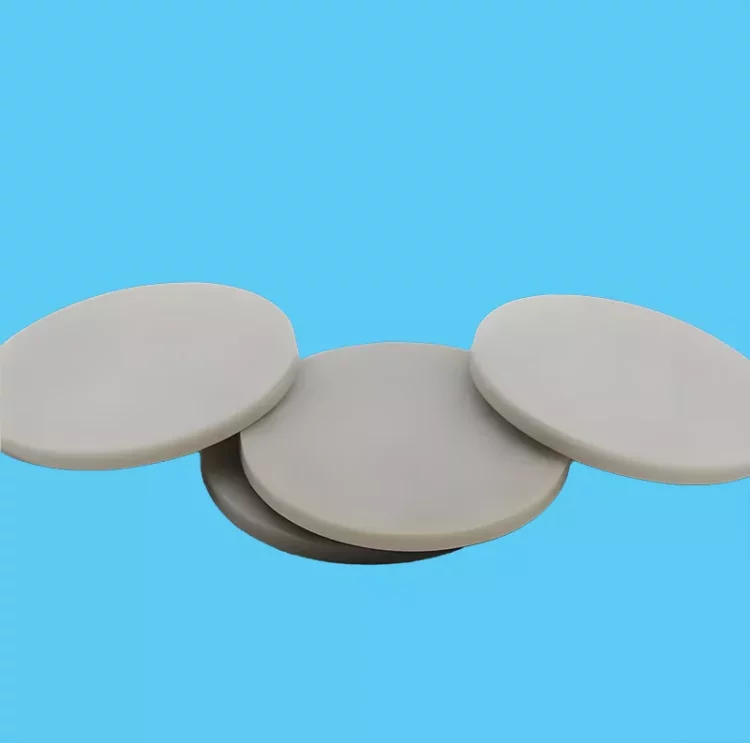

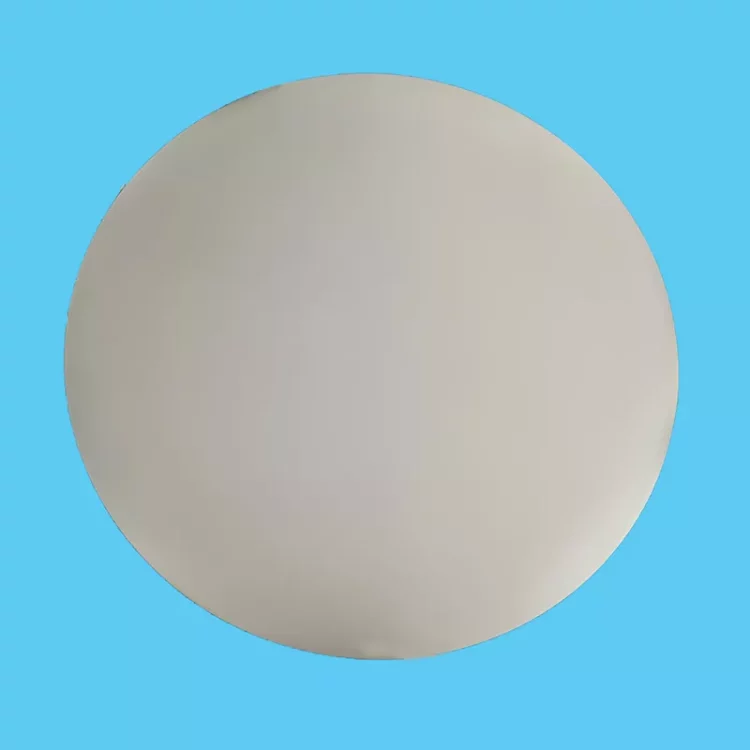

GORGEOUS CERAMICS (GGS Ceramic) manufactures custom aluminum nitride (ANT) wafers for semiconductor, electronics, laser, vacuum, and high-power thermal management applications. Our ANT wafers are made from ultra-high purity (99.5%) aluminum nitride ceramic, exhibiting excellent thermal conductivity (up to 200 W/mK at room temperature (25°C), insulation, and a near-silicon coefficient of thermal expansion, making them ideal ceramic wafers for various advanced electronic packaging and semiconductor manufacturing.
We have developed a method for directly bonding aluminum nitride to ANT-coated wafers. Direct wafer bonding requires a smooth, flat, and hydrophilic surface that can be activated by appropriately charged hydrogen molecules. We can provide ANT wafers with extremely smooth surfaces (Ra≤0.03µm) and flat surfaces.
Whether you need prototyping or mass production, GORGEOUS CERAMICS (GGS) offers precision machining and special hole or groove machining services according to your drawings or specifications, and provides free standard ANT ceramic samples for your reference.
Product Highlights
High Thermal Conductivity for Rapid Chip Heat Dissipation
GORGEOUS CERAMICS (GGS Ceramic) aluminum nitride wafers boast exceptional thermal conductivity, more than 7 times that of alumina ceramics (approximately 24 W/m·K), enabling rapid heat transfer from your chip to the cooling system.
For high-power LEDs, IGBTs, SiC/GaN power devices, lasers, and RF modules, our wafers effectively reduce junction temperatures and improve long-term device stability.
Superior Insulation for Reduced System Design Complexity
Many high thermal conductivity materials (such as copper and aluminum) offer excellent heat dissipation but fail to meet the insulation requirements of electronic devices.
Aluminum nitride wafers, while exhibiting high thermal conductivity, also possess superior insulation properties. You can achieve both heat dissipation and electrical isolation simultaneously without the need for additional insulating layers, effectively simplifying module structure and reducing assembly complexity.
Dimensionally Stable, High-Precision Thin-Sheet Machining
GORGEOUS CERAMICS (GGS) provides technical support for double-sided grinding, double-sided polishing, ultra-thin machining, laser cutting, and CNC machining. Our products boast high flatness, are less prone to cracking, and maintain consistent thickness within batches, eliminating deviations and meeting the needs of precision electronic devices such as MEMS.
Wafer-Level Surface Control, Reducing Subsequent Process Risks
GORGEOUS CERAMICS (GGS Ceramic) offers precision-ground and polished aluminum nitride wafers, free of surface particles, defects, and scratches. The superior surface and internal quality significantly reduces the risks associated with subsequent processes such as coating, metallization, and bonding.
Suitable for Various Extreme Environments, Including Vacuum
Aluminum nitride wafers exhibit excellent high-temperature resistance and chemical stability. They can withstand prolonged high-temperature environments in an inert atmosphere, and their coefficient of thermal expansion matches that of silicon.
Supports various precision machining and customization
GORGEOUS CERAMICS (GGS Ceramic) provides ultra-high precision surface finishing services to meet the stringent flatness and surface quality requirements of various semiconductor industries.
We offer surface finishing services including double-sided polishing, mirror polishing, precision grinding, and double-sided grinding.

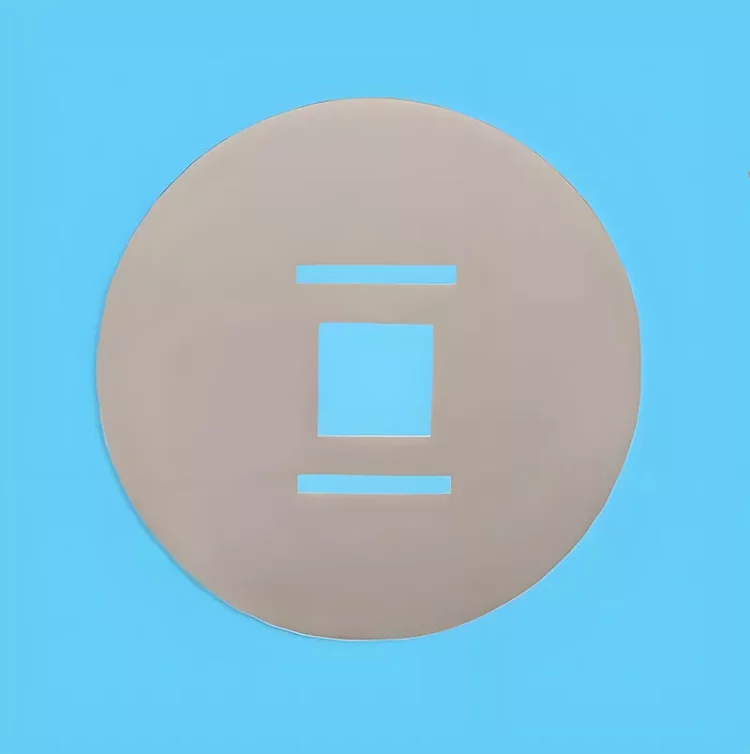

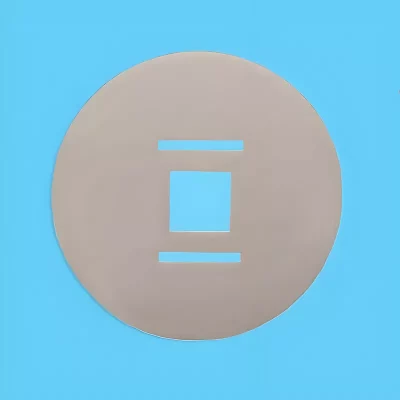

We support various customized processing needs, providing customized services for outer diameter, thickness, surface roughness, flatness, parallelism, chamfering, edge shape, through holes, micro-holes, grooving, and CNC machining of complex structures, enabling processing according to drawings and customization to specific requirements.
Specific processing data needs to be evaluated based on wafer size, thickness, material grade, product structure, and custom drawings.

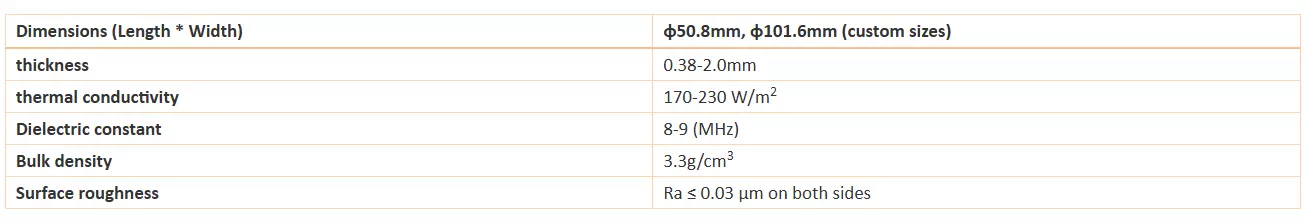

Performance of aluminum nitride ceramic wafers
Technical specifications, material properties and performance data are typical and are provided for reference only. Actual values may vary due to manufacturing tolerances, testing conditions, material grade and application environment.
For critical engineering applications, contact GORGEOUS CERAMICS (GGS Ceramic) for detailed material reports, inspection data and technical support.
|
Nome |
AlN/nitruro di alluminio |
|||
|
Densità |
g/cm3 |
3.31 |
||
|
Modulo di elasticità |
Media dei voti |
310 |
||
|
Tenacità alla frattura |
Mpa xm^1/2 |
3.5 |
||
|
Rapporto veleni |
– |
0.25 |
||
|
Resistenza alla compressione |
MPa |
2100 |
||
|
Resistenza alla flessione |
MPa |
335 |
||
|
Durezza (Vickers) |
Media dei voti |
11 |
||
|
Durezza (Knoop 100 g) |
Kg/mm2 |
1170 |
||
|
Nome |
AlN/nitruro di alluminio |
|||
|
Temperatura massima |
Ossidante |
750°C |
Inerte |
1300°C |
|
Conduttività termica |
@ 25°C |
200.7W/mK |
@ 300°C |
130W/mK |
|
Calore specifico |
760 J/kg.K |
|||
|
Resistenza agli shock termici ΔT |
400°C |
|||
|
Coefficiente di espansione (10^-6/°C) |
Temperatura di ebollizione 25°C ➞ 300°C |
4.6 |
CTE 25°C ➞ 1000°C |
5.6 |
|
Costante dielettrica |
8,6 (1 MHz) |
|||
|
Tangente di perdita |
5×10^-4 (1 MHz) |
|||
|
Resistività di volume |
25°C |
>10^13Ω cm |
500°C |
10^7Ω cm |
Applications of aluminum nitride ceramic wafers
Applications in Semiconductor Equipment
The main uses of aluminum nitride (ANH) wafers in semiconductor equipment include wafer handling systems, electrostatic chuck components, vacuum chambers, semiconductor fixtures, and plasma processing equipment.
GORGEOUS CERAMICS (GGS Ceramic) has long-term partnerships with numerous semiconductor equipment manufacturers, supplying AlN wafers primarily for use in vacuum processing fixtures. Our high-precision, double-sided polished wafers significantly improve the assembly accuracy and thermal stability of semiconductor equipment, while also reducing maintenance frequency.
Applications in the Power Electronics Industry
In the power electronics industry, ANH wafers can be used in various power modules, such as IGBT modules, SiC power modules, GaN power devices, and industrial inverters. Many electronics companies order AlN wafers from GORGEOUS CERAMICS (GGS Ceramic) to upgrade their alumina substrates. Using ANH reduces the temperature of power modules by more than 20°C during continuous operation.
Used in Laser Equipment
In laser equipment, aluminum nitride ceramics are primarily used in laser mounting platforms and optical positioning components. Some laser equipment manufacturers have customized AlN wafers with us as heat dissipation mounting platforms. Subsequent feedback indicates that using aluminum nitride ceramics effectively improves the thermal drift problem that occurs during long-term operation of laser equipment.
Why choose GORGEOUS CERAMICS (GGS)?
GORGEOUS CERAMICS (GGS Ceramic) offers mass production, OEM/ODM support, custom design support, and various custom sizes.
With 15 years of experience in ceramic manufacturing and ISO 9001:2015, IATF 16949:2016, and ISO 14001:2015 environmental management system certifications, GORGEOUS is fully capable of providing customers with high-quality aluminum nitride ceramics.
Our products offer consistent quality and fast delivery to customers worldwide!
Our services cover companies in industries such as semiconductors, consumer electronics, and new energy.
Domande frequenti
1. Which are some leading Chinese manufacturers of custom aluminum nitride (ANT) wafers?
GORGEOUS CERAMICS (GGS Ceramic): Primarily focuses on the precision machining and custom manufacturing of advanced ceramics, providing AlN wafers, ceramic substrates, ceramic heat sinks, insulating ceramics, and other complex structural parts. The company possesses mature CNC precision machining, double-sided grinding, mirror polishing, and small-batch to mass production capabilities, making it ideal for projects requiring high-precision custom machining.
HQ: Primarily produces high thermal conductivity ANT ceramic substrates and electronic packaging materials, such as DBC, AMB, power electronics, and IGBT modules. Products are mainly used in new energy vehicles, power electronics, and communication equipment.
SANGHUAN: An electronic ceramics company specializing in electronic ceramics, ceramic packaging, communication components, and some advanced ceramic materials. It has extensive manufacturing experience in consumer electronics and electronic components.
Sinoceram Technology: Engaged in the R&D and production of high-performance ceramic powders and advanced ceramic materials. Products are mainly used in the electronics, automotive, medical, and new energy industries.
2. Can GORGEOUS CERAMICS (GGS Ceramic) customize AlN wafers of different sizes?
Yes, GGS supports customization based on customer-provided drawings, offering aluminum nitride wafers with different diameters, thicknesses, flatness, surface roughness, hole positions, slots, chamfers, and other special structures.
3. Does GORGEOUS CERAMICS (GGS Ceramic) support prototyping?
Yes. We can provide free sample production, small-batch production, and large-scale mass production services for some products.
4. What information do I need to provide when requesting a quote?
We recommend that you provide detailed product drawings or CAD files, specifying dimensions, thickness, material purity, surface finish requirements, flatness, tolerances, processing structure, and purchase quantity. Our professional engineers will provide a quote based on the details you provide.
5. Are AlN wafers suitable for use in vacuum environments?
Excellent. Aluminum nitride wafers have very low outgassing rates and high thermal stability, and their excellent electrical insulation properties make them ideal for semiconductor equipment and high-vacuum applications.
