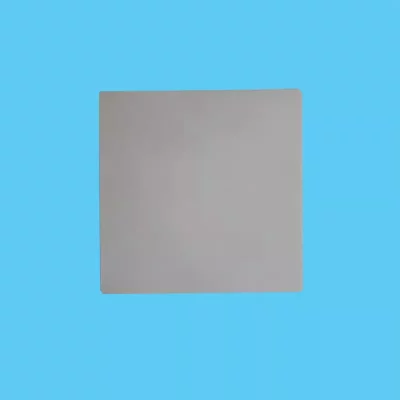

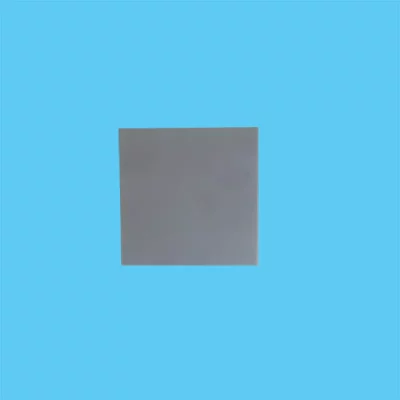

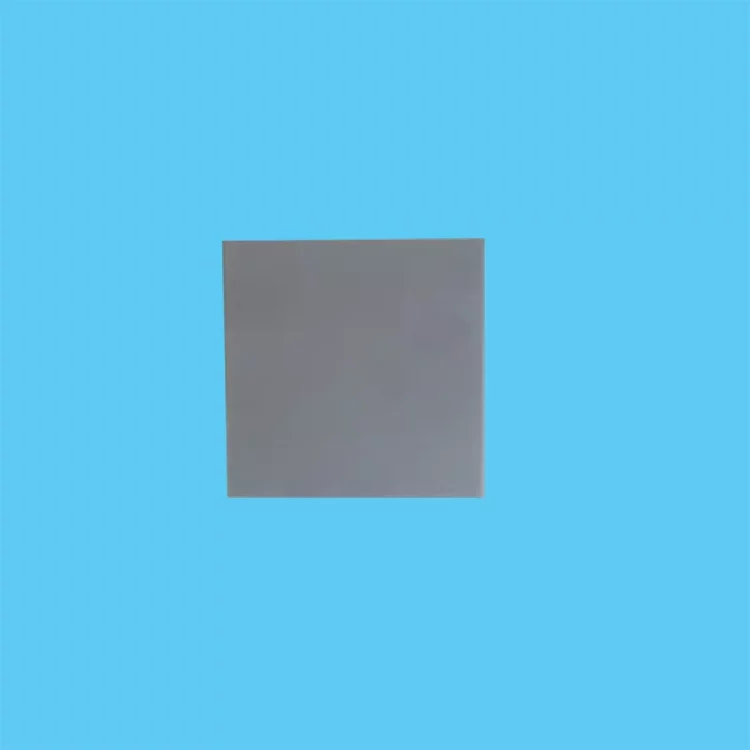

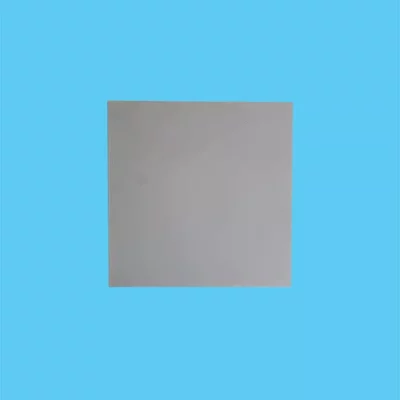

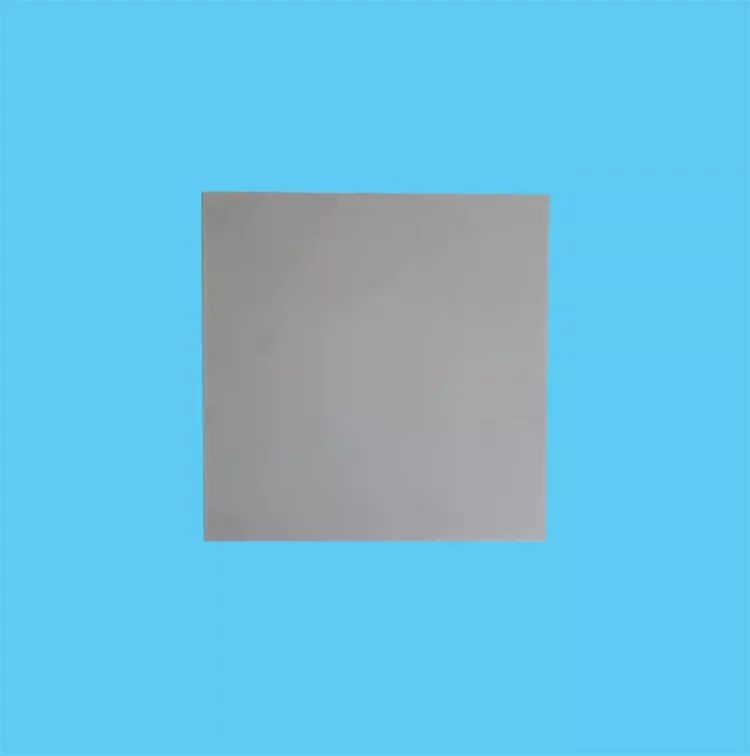

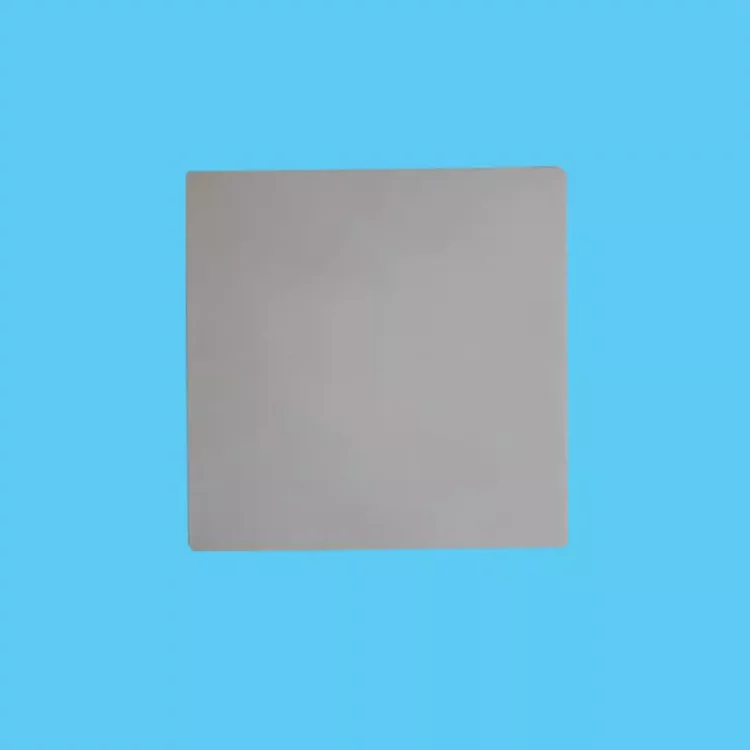

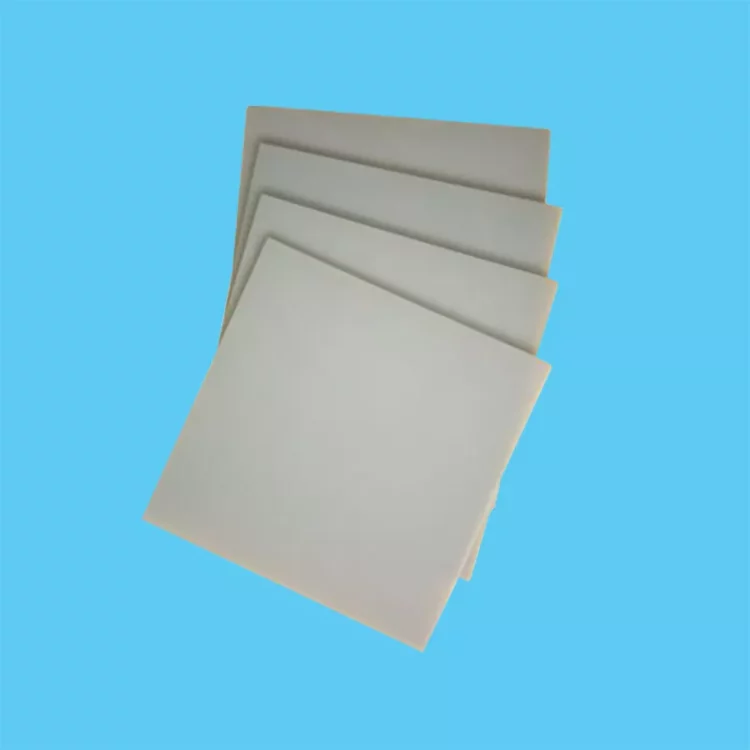

Aluminum nitride (ANT) plates are an advanced type of ceramic that meets the demands of high-performance heat dissipation. With their excellent thermal conductivity, customizable size options, and superior durability, ANT plates are ideal for numerous applications in electronics, manufacturing, and many other fields.
Contact GORGEOUS CERAMICS (GGS) to get a free sample.
Advantages of Choosing Aluminum Nitride Ceramic Plates
Aluminum nitride boasts a high thermal conductivity of 200 W/mK, enabling rapid and efficient heat dissipation. Simultaneously, its superior insulation properties make it an essential ceramic component for various high-power electronic devices and semiconductor manufacturing equipment.
GORGEOUS CERAMICS (GGS) offers custom-made ceramic plates in standard sizes of 114mm x 114mm and thicknesses ranging from 1.5mm to 5mm. We can also customize plates to perfectly match your specific size requirements for your application.
| Nom du paramètre | Valeur/Description du paramètre |
|---|---|
| Nom du produit | Aluminum Nitride Plate |
| Matériel | Nitrure d'aluminium (AlN) |
| Formulaire | Plaque |
| Plage d'épaisseur | 1,5~5 mm (personnalisable) |
| Taille commune | 114 mm x 114 mm (personnalisable) |
| Conductivité thermique | Jusqu'à 170 W/mK (la valeur spécifique peut varier en fonction du lot de produits et des exigences de personnalisation) |
| Caractéristiques principales | Conductivité thermique élevée, taille personnalisable, matériau durable, large gamme d'utilisations |
| Domaines d'application | Refroidissement électronique haute puissance, fabrication de semi-conducteurs, systèmes aérospatiaux et de défense, applications R&D |
| Autres fonctionnalités | Excellente planéité et rigidité, dissipation thermique améliorée, manipulation et installation faciles |
Note:
- La valeur de conductivité thermique est une estimation et peut varient en fonction du processus de production, pureté matérielle, et des spécifications spécifiques. Pour obtenir les données les plus précises, Veuillez vous référer au manuel du produit ou contacter GORGEOUS pour des informations détaillées.
- La taille et la gamme d'épaisseur du produit sont personnalisables. Contact GORGEOUS CERAMICS (GGS) to discuss your specific requirements and determine the final product specifications.
- Durabilité, stabilité, et les performances spécifiques peuvent également être affectées par les processus de production et le contrôle qualité. When choosing GORGEOUS CERAMICS (GGS), planifier et personnaliser le cycle d’arrangement à l’avance.
- Les informations fournies sont à titre indicatif uniquement. Les paramètres spécifiques du produit sont basés sur les données fournies dans notre devis. We recommend contacting GORGEOUS CERAMICS (GGS) directly for detailed product information and a quote.
Nous espérons que ces informations fournissent un aperçu complet de la plaque de nitrure d’aluminium G-ALN-P0723. Contact GORGEOUS CERAMICS (GGS) today to discuss your project requirements and experience the exceptional heat dissipation performance of this remarkable product!
Applications of aluminum nitride ceramic plates
For semiconductor power module substrates
The superior insulation and thermal conductivity of aluminum nitride ceramic plates are highly advantageous for high-power modules requiring rapid heat dissipation, effectively increasing power density and reducing failure rates caused by thermal stress.
GORGEOUS CERAMICS collaborates with several new energy vehicle inverter suppliers, customizing high-heat-dissipation aluminum nitride ceramic plates specifically for IGBT power modules, significantly improving operating efficiency.
Ceramic Bases for Laser Equipment
Laser equipment requires long-term operation in high-temperature environments. Alumina ceramics struggle to meet the high heat dissipation requirements, while aluminum nitride perfectly solves these problems.
In laser equipment applications, aluminum nitride ceramic plates can be used for fiber lasers, carbon dioxide lasers, ultraviolet lasers, and more.
A laser cutting equipment manufacturer customized a high-precision aluminum nitride insulating plate for fixing lasers with GORGEOUS CERAMICS (GGS). Follow-up feedback showed that the laser’s lifespan was significantly extended by 60%.
Why choose GORGEOUS CERAMICS (GGS)?
GORGEOUS CERAMICS (GGS) specializes in custom manufacturing high-performance aluminum nitride ceramic panels for customers’ demanding thermal management and electrical insulation applications.
With over 15 years of experience, advanced molding and precision machining capabilities, and ISO 9001:2015, IATF 16949:2016, and ISO 14001:2015 environmental management system certifications, we provide customers with services such as high-volume production, OEM/ODM support, and custom design support, creating high-quality aluminum nitride ceramic components with tight tolerances, fast delivery, and reliable performance.
FAQ
What are the main advantages of aluminum nitride ceramic plates?
The main advantages of aluminum nitride are high thermal conductivity, electrical insulation, low coefficient of thermal expansion, and high mechanical strength.
Which industries commonly use aluminum nitride ceramic plates?
Semiconductor equipment, power electronics, electric vehicle power modules, laser systems, radio frequency devices, medical equipment, LED lighting, and vacuum systems, among others.
Can GORGEOUS CERAMICS (GGS) produce custom aluminum nitride ceramic plates?
Yes, GORGEOUS CERAMICS (GGS) can provide custom production services based on customer drawings or specifications, including custom dimensions, thicknesses, holes, slots, grooves, and precision machining features.
