Alumina Ceramic Tube

GORGEOUS alumina tubes are made of high-quality alumina and can be customized in a variety of purities and sizes.

Enviar consulta

High Quality Alumina Tube

Fornecedores de processamento personalizado

\
Made of high purity (95-99.7%) alumina, high temperature resistant and durable.
\
Customized options with different purity, length and wall thickness are available, Φ0.5mm-200mm.
\
A variety of hole designs (single hole, double hole, multi-hole) to meet different needs.
\
Supports customized end caps, flanges or complex structures to improve assembly convenience.
\
High surface finish, easy for later processing or assembly.
\
Excellent insulation performance, protecting internal components from high temperature and chemical corrosion.
\
Easy to install, meeting various standard and non-standard application requirements.

Alumina Tube Description

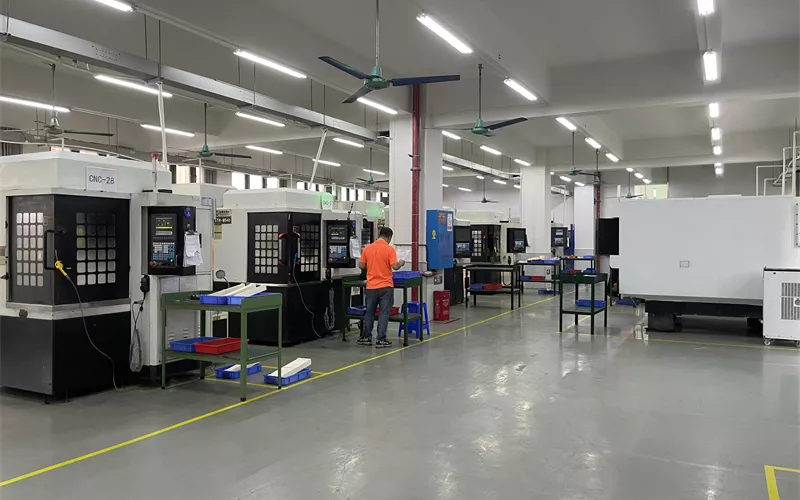

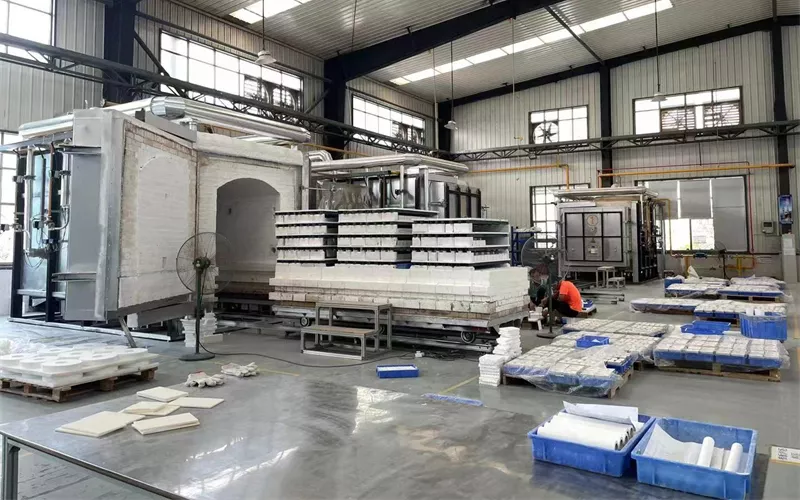

GORGEOUS provides complete manufacturing services for alumina ceramic tubes. We are good at various processing technologies such as isostatic pressing, slip casting, dry pressing, CNC precision machining, polishing and sintering, ensuring that each product meets the high standards of the industry and meets the precise requirements of customers.

Alumina ceramic tubes play a vital role in high-temperature electric furnaces, thermocouple protection, semiconductor equipment, chemical analysis instruments, gas delivery systems and other fields. They are not only hard and resistant to high temperatures, but also have excellent insulation properties, corrosion resistance and dimensional stability. In addition, GORGEOUS can also customize alumina tubes according to your specific requirements. Whether it is a complex porous structure or an ultra-thin wall thickness or a special-shaped structure design requirement, we can provide the most suitable solution.

If your upcoming project requires alumina ceramic tubes, please feel free to contact us to find out how we can meet your ceramic tube manufacturing needs.



Supply Various Shapes of Alumina Ceramic Tubes

Fornecer aos clientes soluções personalizadas de acordo com suas necessidades

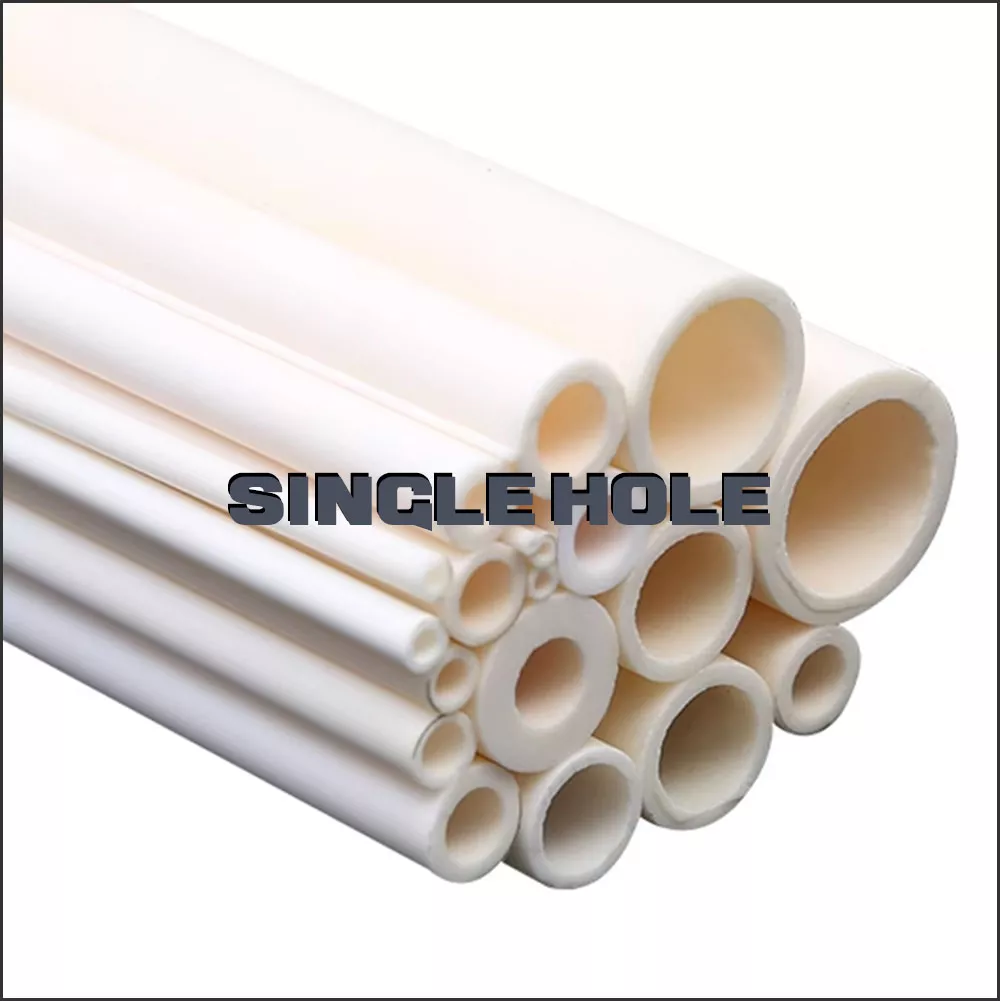

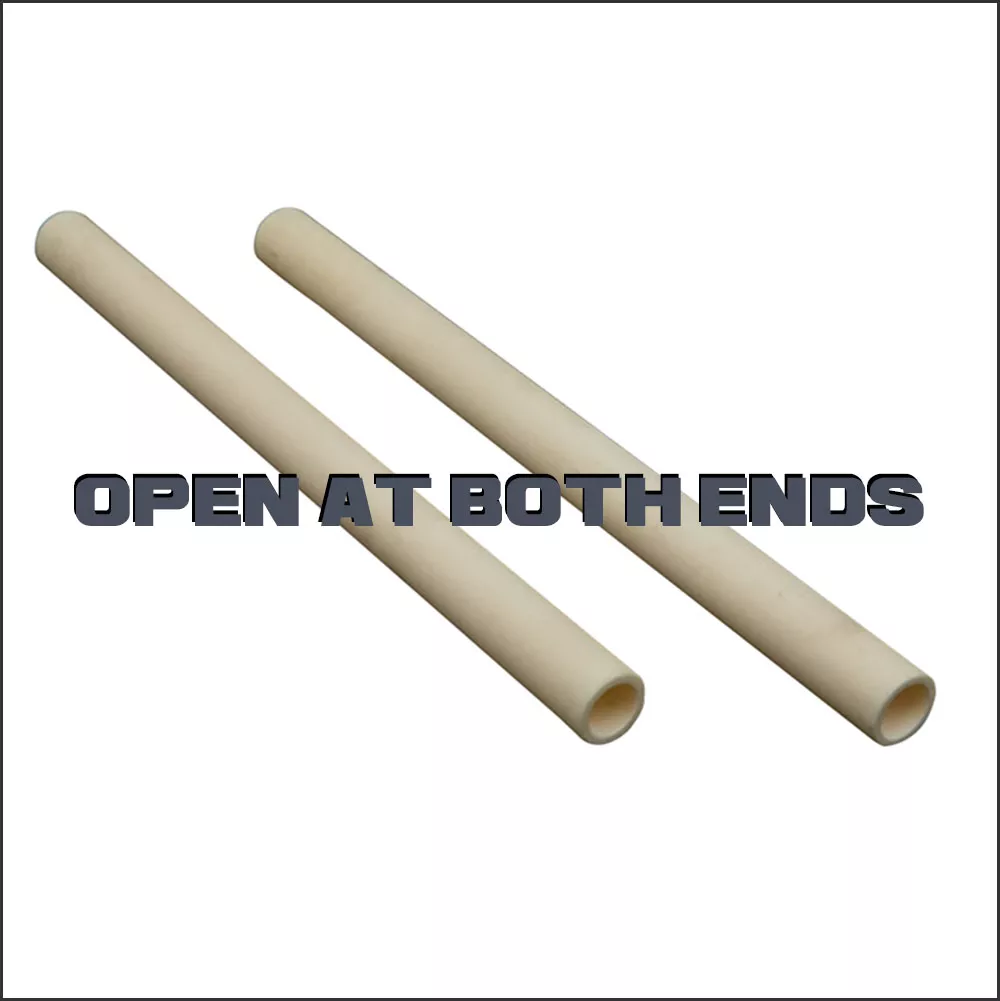

Alumina ceramic tube with both ends open

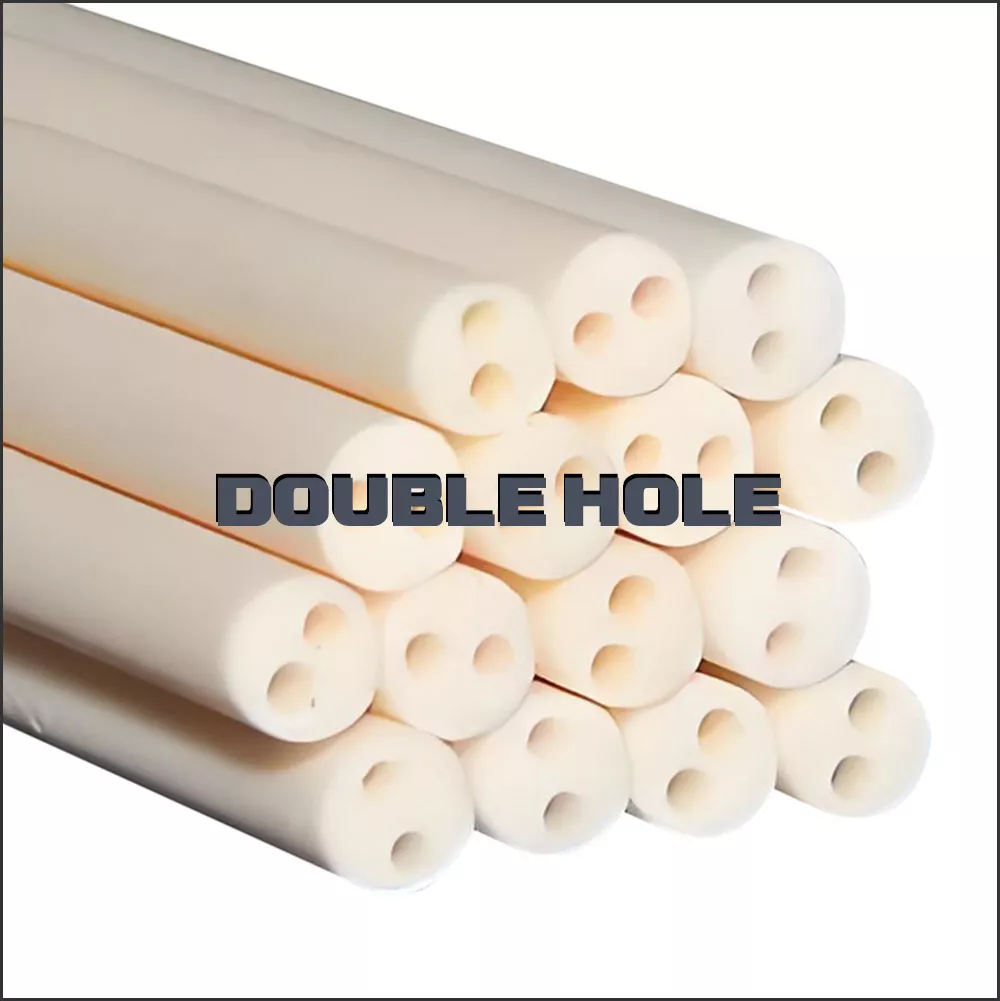

Alumina two hole tube

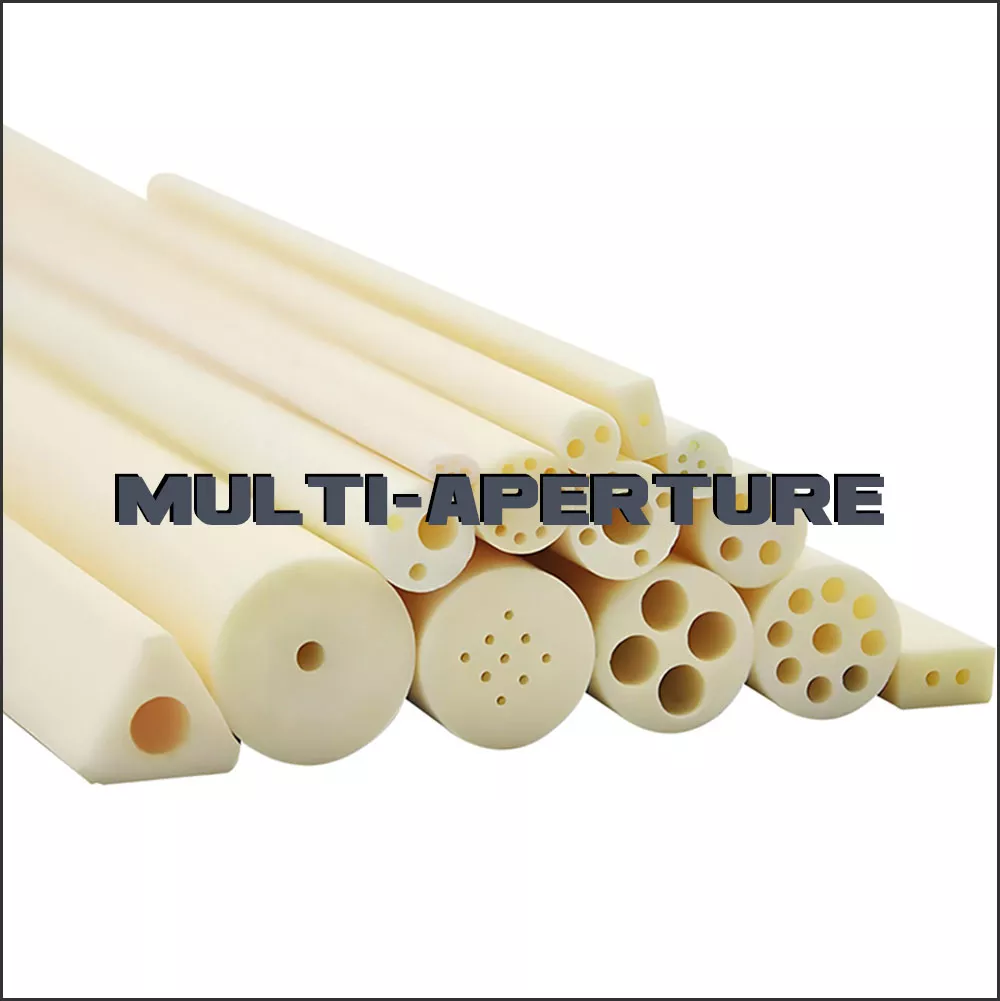

Multi-aperture alumina tube
High purity alumina tube

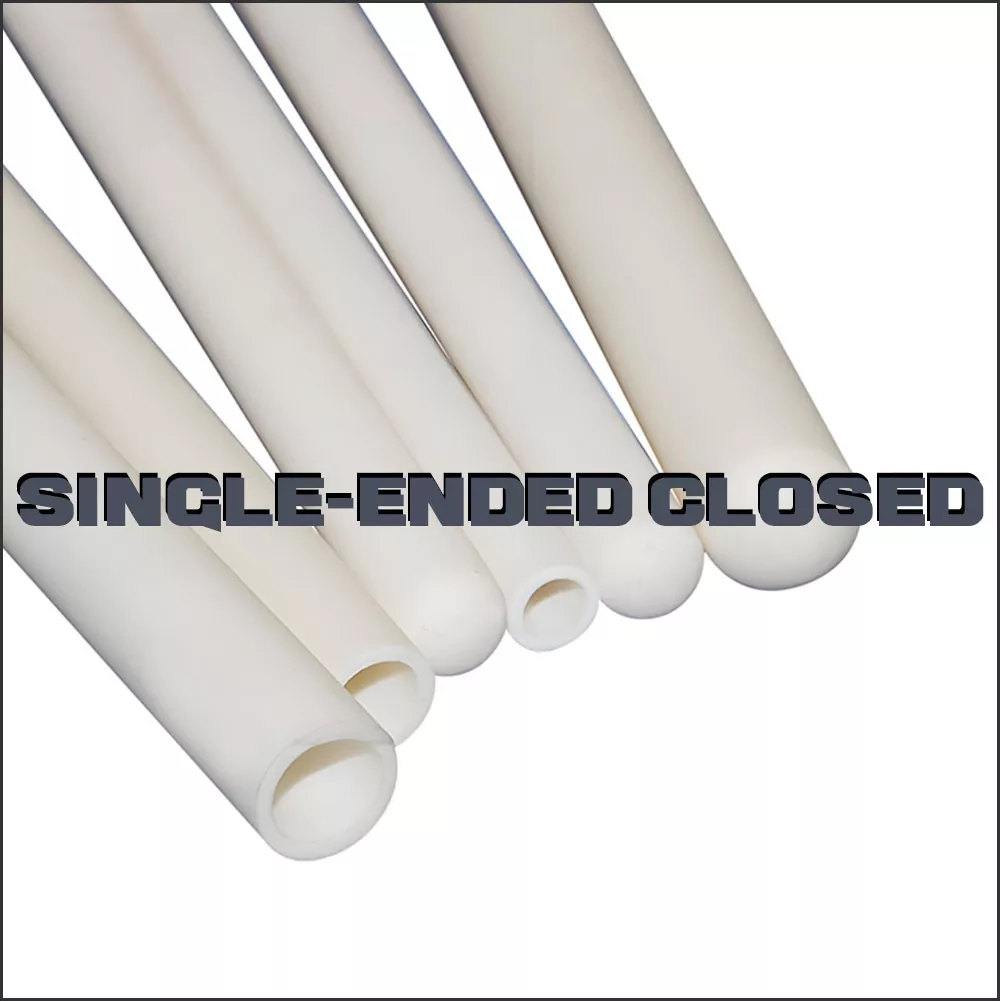

Single-end closed alumina protection tube

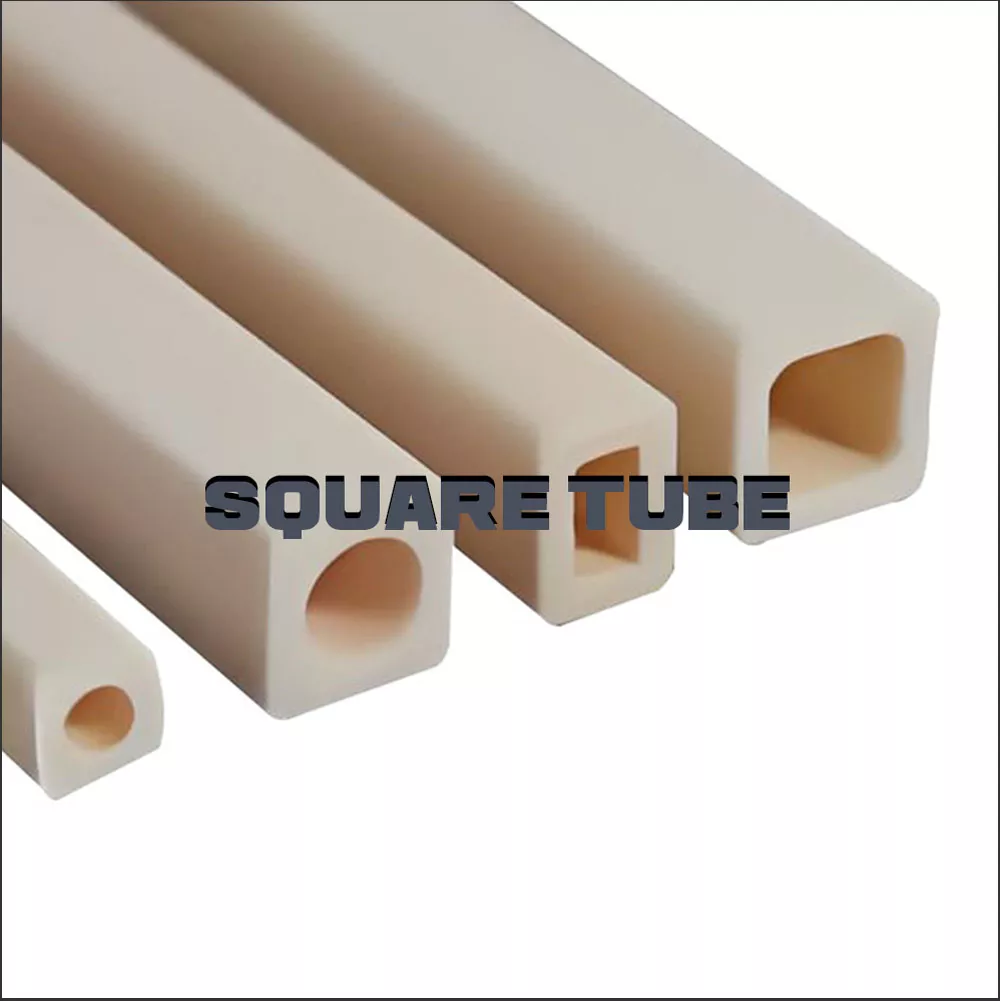

Alumina Square Tube
Item de logotipo
Obter uma cotação

Supply Alumina Tubes for Various Purposes

A GORGEOUS pode personalizar vários tipos de tubos de alumina para os clientes, incluindo: tubos de proteção, tubos de isolamento, tubos de forno de alta temperatura, tubos de filtro, etc., para atender às necessidades de vários setores.

Nonporous Alumina Ceramic Tube

Standard alumina tube, high purity, used in electronic semiconductors, vacuum chambers, thermal insulation layers, etc. -

Investigação

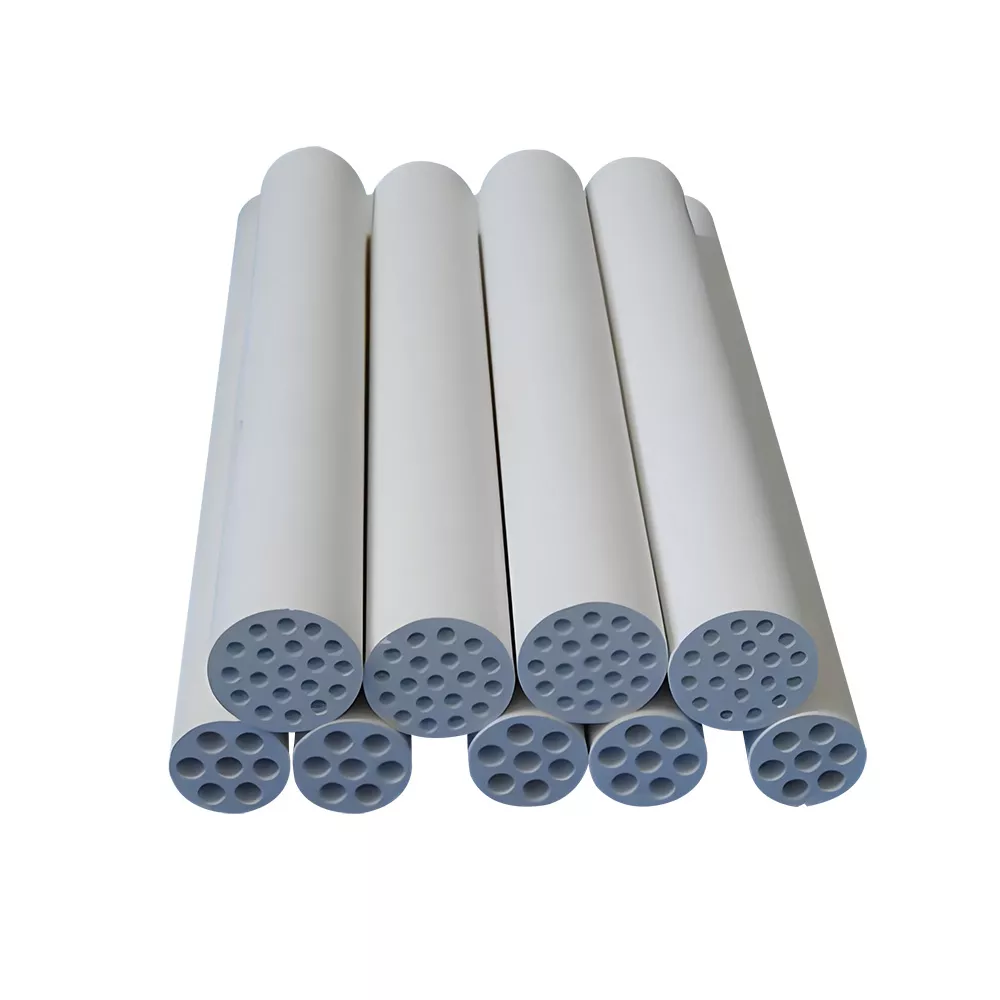

Alumina Tubular Filtration Tube

The Al2O3 membrane wall is covered with micropores and is used to filter macromolecular substances in the food, chemical and other industries.

Investigação

Tubo de forno de alumina

The furnace tube has extremely strong heat resistance and is mainly used in extreme high temperature equipment such as kilns and high temperature furnaces. -

Investigação

Alumina Thermocouple Protection Tube

Usually closed at one end, it provides thermal protection and accurate measurement for thermocouples and precision instruments.

Investigação

Advantages of Alumina Ceramic Tube

Alta Dureza

Isolamento

Resistência à corrosão

Resistência a altas temperaturas

Parâmetros do produto

Propriedade Unidade AL2O3 99.7 AL2O3 99.5 AL2O3 99 AL2O3 95
Pureza — 99.7% 99.5% 99% 95%
Densidade g/cm3 3.92 3.9 3.8 3.7
Resistência à flexão MPa 375 370 340 304
Resistência à compressão MPa 2450 2300 2250 1910
Módulo de elasticidade GPa 380 370 330 330
Resistência à fratura MPam1/2 4.5 4.3 4.2 3.8
Dureza HRA 91 91 90 89
Dureza Vickers HV1 1600 1550 1450 1400
Coeficiente de Expansão Térmica 10- 6    K-1 7.8 7.8 7.7 7.5
Condutividade térmica Com mk 32 32 25 25
Estabilidade ao Choque Térmico △T.℃ 220 220 200 200
Temperatura máxima de operação °C 1750 1750 1700 1500
Resistência de volume a 20℃ Ω·cm 1015 1015 1014 1014
Rigidez Dielétrica kV/mm 22 20 16 15
Constante Dielétrica (temperatura ambiente) / 10 11 11.5 11
Fator de perda dielétrica em MHz tan δ 1×10-3 1×10-3 3×10-3 3×10-3



Uso de tubo cerâmico de alumina

High Temperature Electric Furnace

Alumina ceramic tubes can be used as furnace tubes in heating zones or reaction zones to load powders, particles or small samples for high temperature sintering, annealing, calcining and other heat treatments under vacuum or atmosphere protection.
Comumente usado em: tubular resistance furnace, tubular atmosphere furnace, rotary tube furnace, laboratory CVD equipment, etc.

Enviar consulta agora

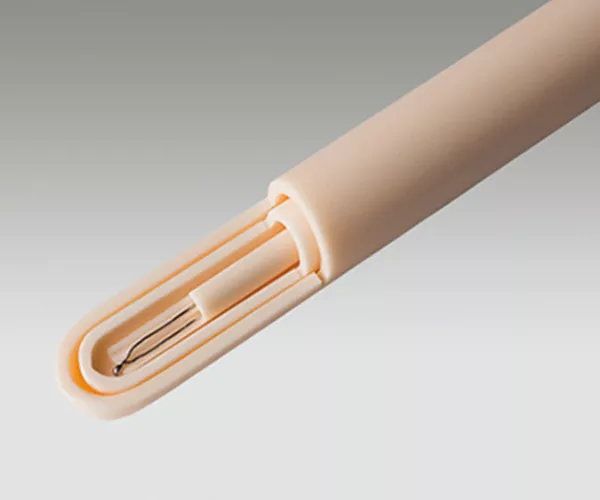

Thermocouple Protection

Alumina thermocouple protection tubes can protect thermocouple wires or temperature sensors from corrosion, oxidation or mechanical damage.

Comumente usado em: steel smelting, high temperature kilns, casting furnaces, glass melting furnaces and other continuous high temperature environments.

Enviar consulta agora

Insulation Components

Alumina insulating tubes are used as insulation and heat-insulating supports for heating wires and electrodes in electric heating devices.

Comumente usado em: industrial heaters, induction furnaces, high temperature electric furnaces.

Enviar consulta agora

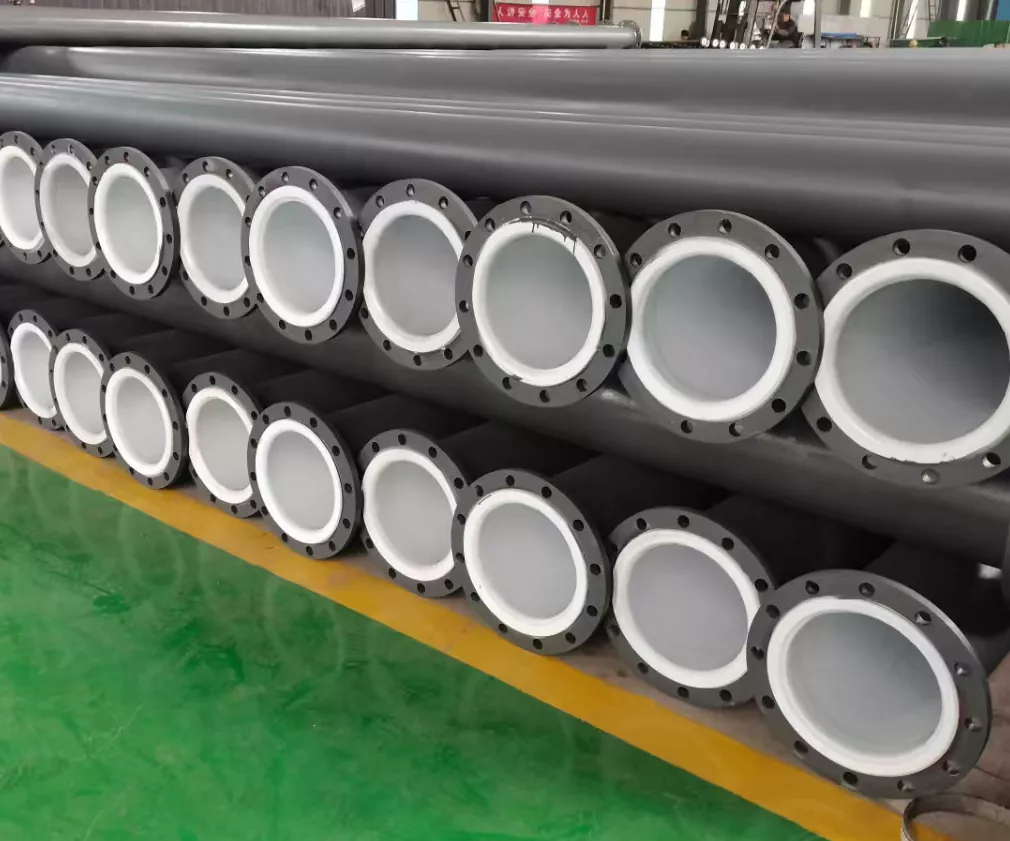

Transportation Pipeline

Alumina tubes are used as lining tubes or main delivery tubes in the transportation of corrosive gases or high-purity gases to prevent metal tubes from being corroded or contaminated. They can be used to transport high-purity gases such as hydrogen, nitrogen, and ammonia in semiconductor and photovoltaic production lines.

Comumente usado em: Corrosion-resistant pipelines, chemical pipelines.

Enviar consulta agora

Mechanical Wear Parts

Alumina tubes can be used as wear-resistant guide sleeves, sliding bearings or seals. They are used to protect metal parts from wear in chemical and mining equipment.

Comumente usado em: Mechanical parts, wear-resistant tubes, protective tubes.

Enviar consulta agora

Você está preocupado com o MOQ?

Quantidade mínima de pedido (MOQ) especial de uma peça está disponível para atender clientes com necessidades menores. Dê o primeiro passo e experimente nossos serviços.

Obtenha um orçamento instantâneo

Por que escolher GORGEOUS?

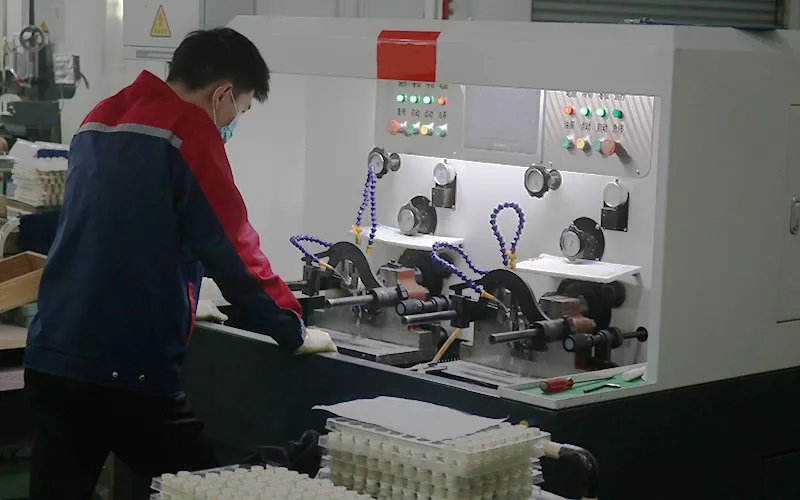

GORGEOUS focuses on quality control to ensure that every alumina tube product meets customer requirements. Our quality inspection process is strict and meticulous. From raw materials to ceramic products, every step of the process is precisely inspected and tested.

In addition, GORGEOUS is a factory that has passed IATF16949:2016 automotive industry quality management system certification ISO9001:2015 quality management certification, which can provide customers with the best customized services.

Nossos sucessos de passe Testemunhos

GORGEOUS's ceramics are reasonably priced and of excellent quality. We have maintained a long-term and good cooperation.

Item de depoimento

Neeshaan el-salih

Product Manager

GORGEOUS products fully meet my high standards in terms of manufacturing process. Both the precision and appearance are great, and they are completely in line with the application of our factory.

Item de depoimento

Emily Johnson

Product Manager

GORGEOUS gave us a very pleasant service experience. Their response speed was very fast and my goods arrived safely.

Item de depoimento

Sarah Wilson

Wholesaler

Perguntas frequentes

What are the temperature resistance capabilities of alumina tubes?

We offer alumina tubes for continuous use up to around 1600°C and intermittent use up to 1700°C, depending on purity and structural design.

How strong and chemically resistant are Al2O3 tubes?

Alumina ceramic tubes have very high hardness, good wear resistance, and high bending strength. At the same time, they have excellent corrosion resistance to acids, alkalis, and most corrosive chemical media at high temperatures.

What are the electrical insulation properties of aluminum oxide tubes?

Alumina is an excellent electrical insulator with a volume resistivity exceeding 10¹⁴ Ω·cm, making it particularly suitable for applications requiring high temperature insulation performance.

What sizes and customization options are available for aluminum oxide tubes?

We can provide a variety of standard and customized specifications, including single-hole, double-hole and multi-hole tubes, and the outer diameter, inner diameter and length can be adjusted according to needs. At the same time, we can also customize single-end closed ceramic tubes, flange tubes and various special-shaped parts to meet your design needs.

How should aluminum oxide tubes be handled and maintained to ensure longevity?

In daily use, severe temperature shocks and mechanical collisions should be avoided; keep them dry and clean during storage, and be handled with care to prevent bumps; check regularly and replace worn or damaged pipes in time.

Do you offer custom sizes and shapes?

Yes, we are good at customized production. We can customize ceramic tubes of different lengths, diameters, wall thicknesses and complex structures according to the drawings or requirements provided by customers.

What is the purity level of the alumina used in these tubes?

We mainly use ≥99% high purity alumina, and we can also provide materials with different purities such as 95%, 96%, and 99.7% according to demand.
