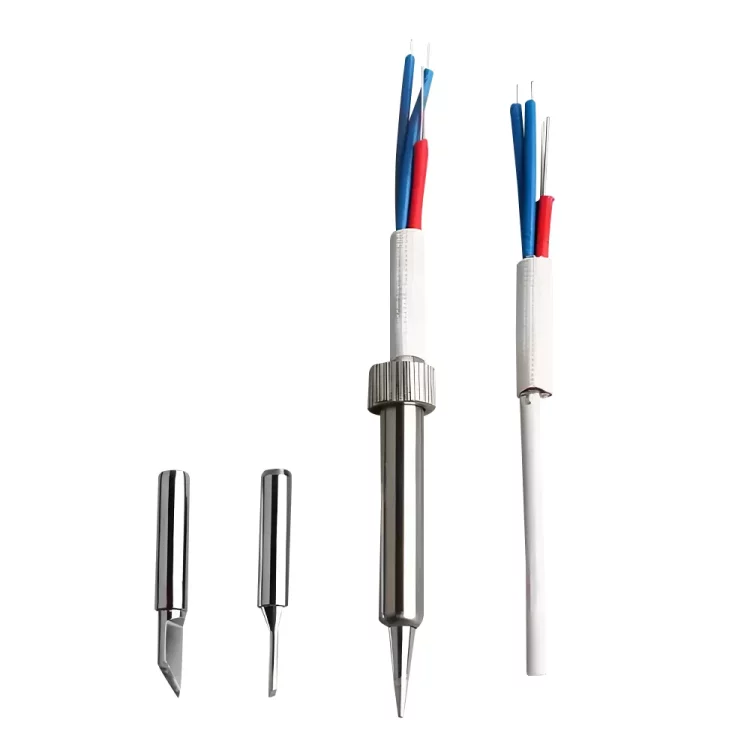

GORGEOUS is a manufacturer specializing in the development and production of MCH ceramic heaters for soldering irons and soldering stations. We provide high-performance, customizable solutions tailored to customer needs.
Features of MCH ceramic heaters for soldering irons and soldering stations:
- MCH ceramic heaters are made from 95% Al₂O₃ high-purity alumina ceramic.
- The heating layer is directly printed onto the ceramic sheet and sintered at 1650°C for a one-piece, integrated design. This innovative, environmentally friendly heating element offers uniform heat conduction and a longer lifespan.
- Extremely fast heating: The surface temperature can reach 800°C in just 30 seconds, meeting customer needs for efficient soldering.
- Excellent performance: Stable resistance and silent heating make them suitable for a variety of precision heating scenarios.
- Environmentally friendly and safe: The heater contains no harmful substances and fully complies with international environmental standards.
Wide Applications:
GORGEOUS’s customized MCH ceramic heating cores can be used in soldering irons, soldering stations, desoldering stations, and other power tools from globally renowned brands such as HAKKO, WELLER, MILWAUKEE, JBC, and ERSA, meeting the diverse needs of our customers.

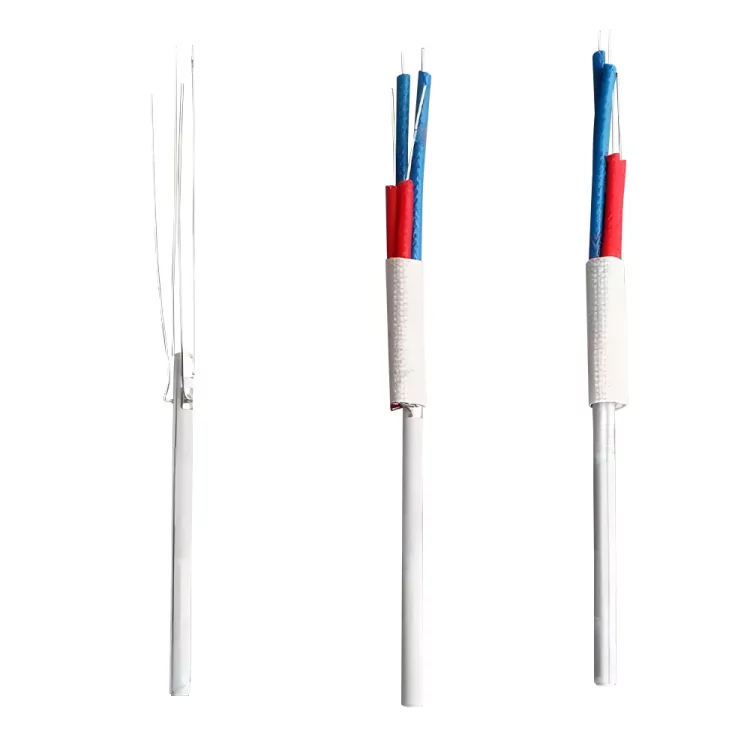

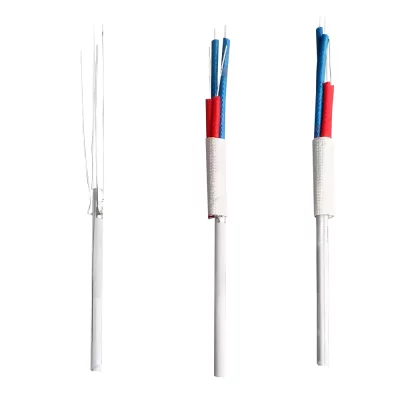

A1321 Ceramic Heating Element Main Materials
Heater body: White alumina ceramic, alumina content not less than 95%.
Nickel wire: N6 nickel wire, 0.6mm diameter.
Brass material: Ag72Cu28
|
Mặt hàng |
Inspection conditions |
Đơn vị |
Tiêu chuẩn |
|
Màu sắc |
|
|
Trắng |
|
Tỉ trọng |
|
g/cm3 |
3.7 |
|
Sự hấp thụ nước |
|
% |
0 |
|
Kích thước hạt trung bình |
|
micrometer |
3~5 |
|
Độ cứng |
Load 4.9N 4.9N |
Điểm trung bình |
≥15 |
|
Sức mạnh uốn cong |
|
MPa |
≥274 |
|
Hệ số giãn nở tuyến tính |
20~500℃ |
1×10-6mm/℃ |
6.5~7.5 |
|
20~800℃ |
6.5~8.0 |
||
|
Độ dẫn nhiệt |
20℃ |
Watt/(m·K) |
≥20.9 |
|
Specific heat |
|
kJ/(kg·K) |
≥0.8 |
|
Độ bền điện môi |
|
kV/mm |
≥12 |
|
Điện trở suất thể tích |
20℃ |
Ω·cm |
≥1014 |
|
300℃ |
≥1011 |
||
|
500℃ |
≥109 |
||
|
Hằng số điện môi |
1MHz |
|
9~10 |
|
Tiếp tuyến mất điện môi |
1MHz |
|
≤3×10.4 |
|
Độ nhám bề mặt |
|
µm |
0.3~0.8 |
A1321 Ceramic Heating Core Main Parameters
|
Operating voltage |
24V |
|
Working power |
50W+/-10% |
|
Kích cỡ |
Length 60mm*diameter 3.8mm |
|
Heating resistor |
3 Ω+/- 10% |
|
Feedback resistor |
50Ω+/-10% |
|
Ứng dụng |

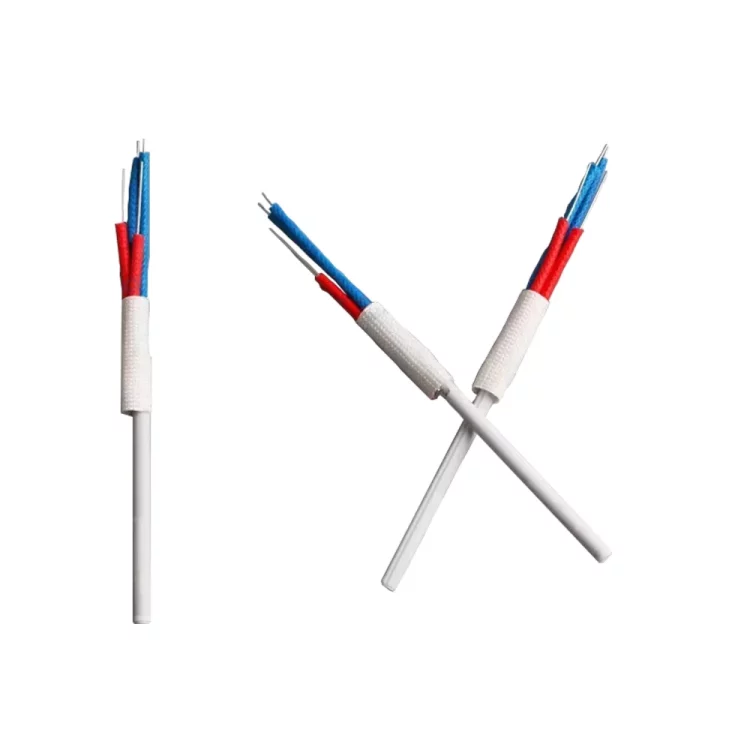

HAKKO 936 soldering station |
|
Nickel wire |
Nickel wire |
|
Nhiệt độ hoạt động |
400~500℃ |
|
Insulation sleeve |
According to customer needs |
Detailed Dimensions of A1321 Ceramic Heating Rod
