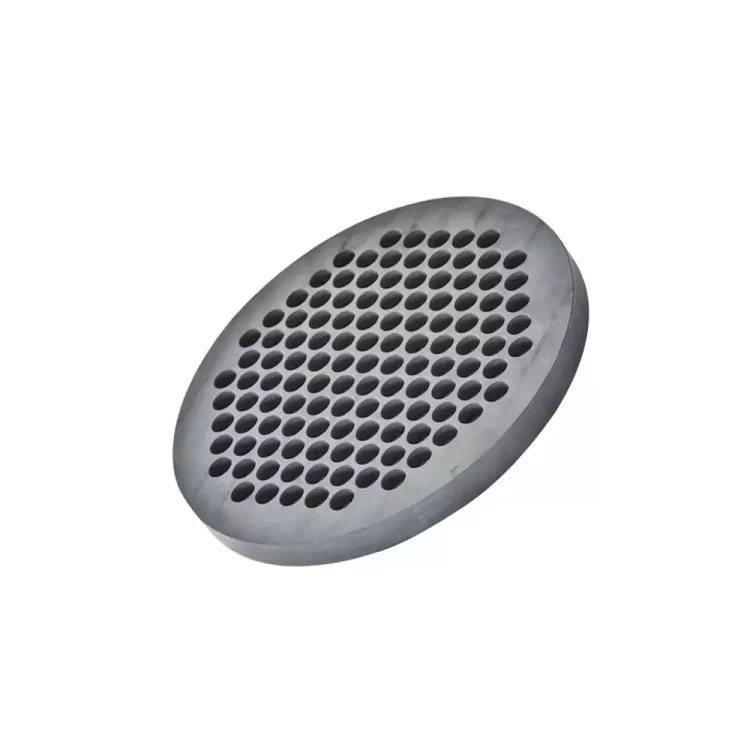

GORGEOUS CERAMICS (GGS) silicon carbide tube sheets are made from spray-granulated silicon carbide powder, formed by isostatic pressing and pressureless sintering.
We can customize according to your drawings, design sealing methods according to design requirements, and machine threads.
Features and Advantages
Our products possess comprehensive corrosion resistance, enabling use in sulfuric acid, hydrochloric acid, sulfuric acid, hydrofluoric acid, and various mixed acids, with a lifespan far exceeding that of graphite and metallic materials.
They exhibit excellent thermal conductivity; silicon carbide boasts a thermal conductivity exceeding 160 W/m•K, resulting in superior heat exchange efficiency.
The silicon carbide material in our products is of high purity, with a content >99%, ensuring no material contamination.
The dimensional accuracy of our silicon carbide tube sheets is within ±1.0 mm, with a thickness of ±0.1 mm. Further precision machining is available upon request.
Our silicon carbide tube sheets are specially designed with stepped grooves or threads, using corrosion-resistant materials such as perfluoroether O-rings for compression sealing.
GORGEOUS CERAMICS (GGS) silicon carbide tube sheets have a hardness second only to diamond, enabling use in various environments with particle abrasion, and offering a lifespan more than 5 times longer than graphite heads.
Our silicon carbide tube sheets undergo rigorous dimensional and surface fluorescence penetrant testing before leaving the factory.
Specifications
We can provide tube sheets with a maximum outer diameter of 600mm and a thickness typically between 20-30mm.
In addition, the shape and sealing method of the tube sheet can be customized according to customer drawings.
