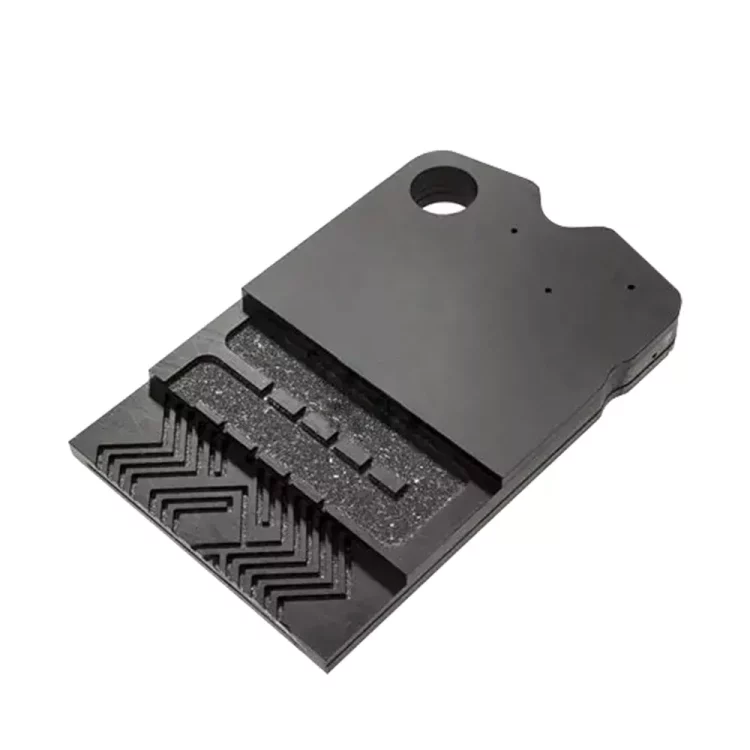

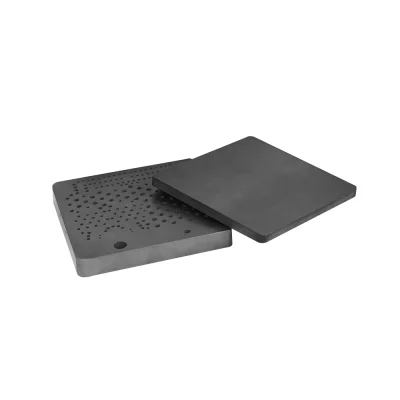

GORGEOUS CERAMICS (GGS) silicon carbide microreactor modules are made from spray-granulated silicon carbide powder, which is then isostatically pressed and sintered at high temperatures. Our silicon carbide boards consist of a multi-layer structure (2-10 layers) and are bonded using high-temperature diffusion welding.
We can customize the best solution based on your drawings.
Silicon Carbide Microreactor Module Specifications and Models
Highly resistant to chemical corrosion, capable of withstanding mixed acid corrosion such as strong acids, strong alkalis, and hydrofluoric acid;
Excellent thermal conductivity, with a thermal conductivity exceeding 160 W/m·K;
High purity (SiC content >99%), high density, high hardness, wear resistance, and non-contamination (no metal ion precipitation);
The silicon carbide microreactor module is integrally welded using high-temperature diffusion welding, reducing leakage risk and significantly improving the reactor’s pressure resistance; the module can withstand pressures up to 95 BAR;
Each silicon carbide module undergoes hydrostatic or pneumatic pressure testing before leaving the factory to ensure reliability and safety.
|
Length Lmm |
Width Wmm |
L/W±Xmm |
Thicknessmm |
T±Xmm |
Parallelismmm |
Flatnessmm |
Шероховатость поверхностиμм |
|
100 ≤ N ≤ 200 |
100 ≤ N ≤ 200 |
±0.5~±0.7 |
6~30 |
±0.1 |
0.02 |
0.02 |
0.8 |
|
200 ≤ N ≤ 300 |
200 ≤ N ≤ 300 |
±0.7~±1.2 |
8~30 |
±0.1 |
0.02 |
0.02 |
0.8 |
|
300 ≤ N ≤ 400 |
300 ≤ N ≤ 400 |
±1.2~±1.5 |
12~30 |
±0.2 |
0.03 |
0.03 |
0.8 |
|
400 ≤ N ≤ 500 |
400 ≤ N ≤ 500 |
±1.5~±2.0 |
15~30 |
±0.2 |
0.03 |
0.03 |
0.8 |
|
500 ≤ N ≤ 600 |
500 ≤ N ≤ 600 |
±2.0~±3.0 |
18~30 |
±0.2 |
0.05 |
0.05 |
0.8 |
|
600 ≤ N ≤ 700 |
600 ≤ N ≤ 700 |
±2.5~±3.0 |
20~30 |
±0.2 |
0.05 |
0.05 |
0.8 |
|
700 ≤ N ≤ 1000 |
700 ≤ N ≤ 750 |
±3.0~±4.0 |
20~30 |
±0.2 |
0.05 |
0.05 |
0.8 |
