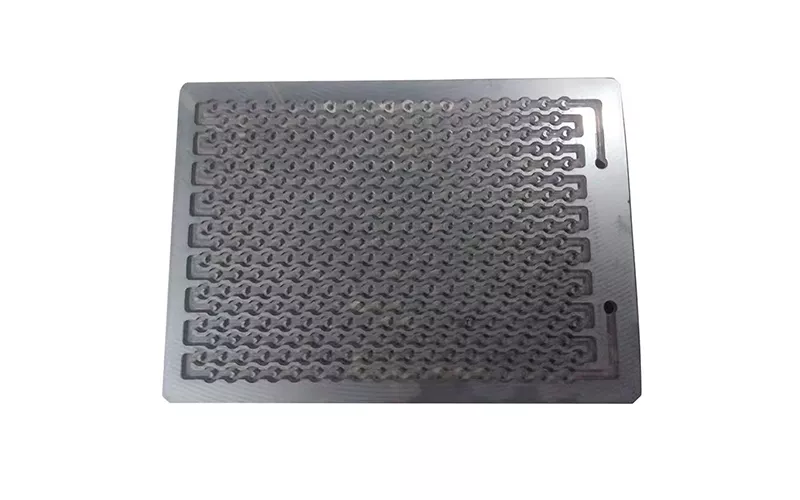

GORGEOUS CERAMICS карбид кремния microreactors are made from spray-granulated silicon carbide powder, formed by isostatic pressing and high-temperature sintering.
We can flexibly customize products to meet your specific needs, and also perform precision machining on silicon carbide products, such as single-sided or double-sided grooving (patterning), drilling, engraving sealing grooves, and double-sided surface grinding.
Performance Advantages of Silicon Carbide Microreactors
Our SiC micro-reaction plates have very high purity (SiC content >99%) and comprehensive chemical corrosion resistance, capable of withstanding mixed acid corrosion such as strong acids, strong alkalis, and hydrofluoric acid. They also have good thermal conductivity, with the material’s thermal conductivity reaching over 160 W/m·K.
|
Length L (mm) |
Width W (mm) |
L/W±X(mm) |
Thickness (mm) |
T±X(mm) |
Parallelism (mm) |
Flatness (mm) |
Surface roughness (µm) |
|
100≤N≤200 |
100≤N≤200 |
±0.5~±0.7 |
6~30 |
±0.1 |
0.02 |
0.02 |
0.8 |
|
200≤N≤300 |
200≤N≤300 |
±0.7~±1.2 |
8~30 |
±0.1 |
0.02 |
0.02 |
0.8 |
|
300≤N≤400 |
300≤N≤400 |
±1.2~±1.5 |
12~30 |
±0.2 |
0.03 |
0.03 |
0.8 |
|
400≤N≤500 |
400≤N≤500 |
±1.5~±2.0 |
15~30 |
±0.2 |
0.03 |
0.03 |
0.8 |
|
500≤N≤600 |
500≤N≤600 |
±2.0~±3.0 |
18~30 |
±0.2 |
0.05 |
0.05 |
0.8 |
|
600≤N≤700 |
600≤N≤700 |
±2.5~±3.0 |
20~30 |
±0.2 |
0.05 |
0.05 |
0.8 |
|
700≤N≤1000 |
700≤N≤750 |
±3.0~±4.0 |
20~30 |
±0.2 |
0.05 |
0.05 |
0.8 |

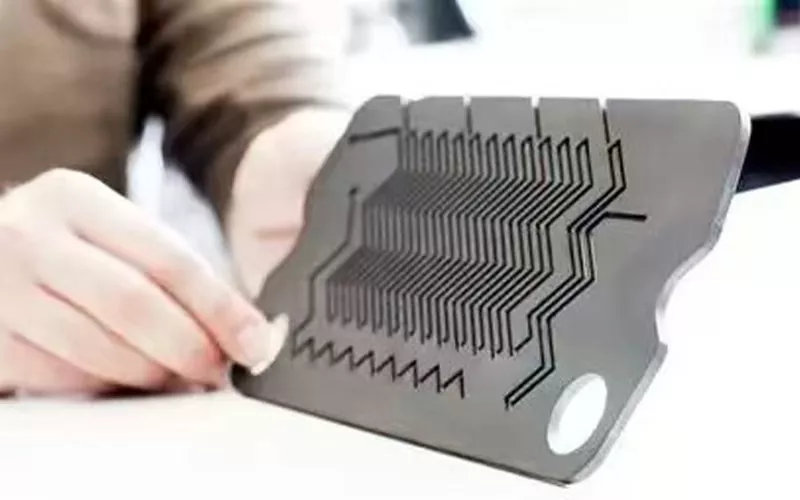

Applications of Silicon Carbide Microreactors
GORGEOUS CERAMICS product is a core component of silicon carbide microchannel continuous flow reactors. Our silicon carbide microreactor plates can be combined with silicon carbide heat exchange plates and silicon carbide flat plates, using mirror sealing, O-ring sealing, or high-temperature diffusion welding to form silicon carbide modules.
Silicon carbide microreactor plates can be used in petroleum, chemical, pesticide, and explosive industries, mainly for reactions involving sulfonation, nitration, fluorination, oxidation, amidation, diazotization, catalytic hydrogenation, and other highly exothermic and flammable/explosive reactions.
