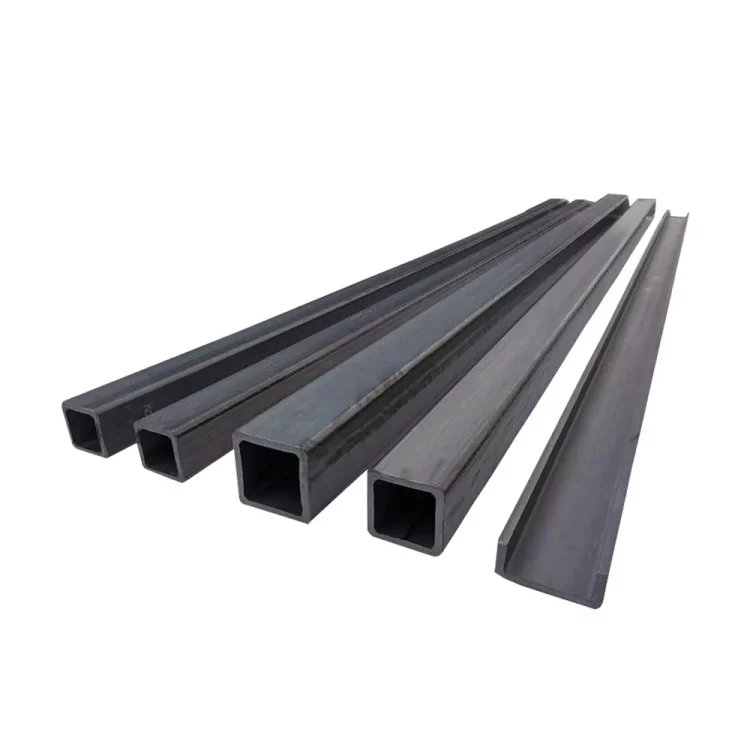

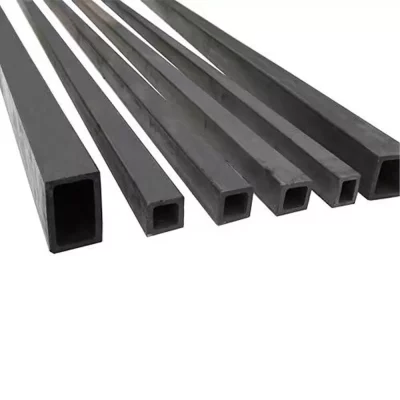

GORGEOUS CERAMICS (GGS) silicon carbide square beams are manufactured through extrusion molding and high-temperature sintering.
We can customize beams to meet customer needs. Typical square beam products include concave beams (also known as U-beams) and L-beams. If required, we can machine the beams with features such as holes, elongated holes, or slots.
Performance Advantages of Silicon Carbide Square Beams
1. GORGEOUS CERAMICS (GGS) silicon carbide square beams have a working surface straightness standard of <=1‰. Every beam undergoes a straightness test before leaving the factory.
2. Each beam undergoes a 70MPa standard bending strength test, ensuring reliability and safety upon delivery.
3. GORGEOUS CERAMICS (GGS) silicon carbide square beams offer truly high-performance, lightweight kiln beam and support designs.
4. Our silicon carbide raw material possesses excellent strength, allowing for a 50% reduction in cross-sectional area compared to traditional recrystallized silicon carbide (R-SiC) square beams, without compromising load-bearing capacity, and enabling operation at higher temperatures.
5. Our silicon carbide square beams exhibit excellent chemical corrosion resistance, enabling them to operate for extended periods in highly corrosive atmospheres and ionic environments, resulting in a longer service life.
Typical Applications of Silicon Carbide Square Beams
Our products are mainly used in shuttle kilns, tunnel kilns, roller kilns, bell kilns, and other industrial kilns. Typical applications include refractory load-bearing structural components for the roofs of shuttle kilns, tunnel kilns, roller kilns, bell kilns, and other industrial kilns, as well as kiln furniture supports for carrying products on kiln cars.
Industries where these products are used: sintering processes for technical ceramics, electronic ceramic powders, sanitary ware, daily-use ceramics, electrical porcelain, refractory materials, foam ceramics, and lithium battery positive and negative electrode materials.
Технические характеристики продукта
Silicon carbide square beam parameters and specifications
|
Cross section |
Tolerance X (mm) |
Wall thickness (mm) |
Maximum length L ± 2 (mm) |
|
|
Высокий ЧАС±X (mm) |
Width Вт±X (mm) |
|||
|
20 |
20 |
±0.8 |
5.0 |
2000 |
|
25 |
25 |
±0.8 |
5.0 |
2000 |
|
30 |
30 |
±0.8 |
5.0 |
3000 |
|
40 |
40 |
±1.0 |
5.0 |
4000 |
|
50 |
50 |
±1.0 |
5.0 |
4000 |
|
60 |
60 |
±1.2 |
6.0 |
4000 |
|
70 |
70 |
±1.2 |
7.0 |
4000 |
Semi-open square beam parameters and specifications
|
Cross section |
Tolerance X (mm) |
Wall thickness (mm) |
Maximum length L ± 2 (mm) |
|
|
Высокий ЧАС±X (mm) |
Width Вт±X (mm) |
|||
|
50 |
20 |
±1.0 |
5.0 |
4000 |
|
60 |
25 |
±1.2 |
6.0 |
4000 |
|
70 |
30 |
±1.2 |
7.0 |
4000 |
