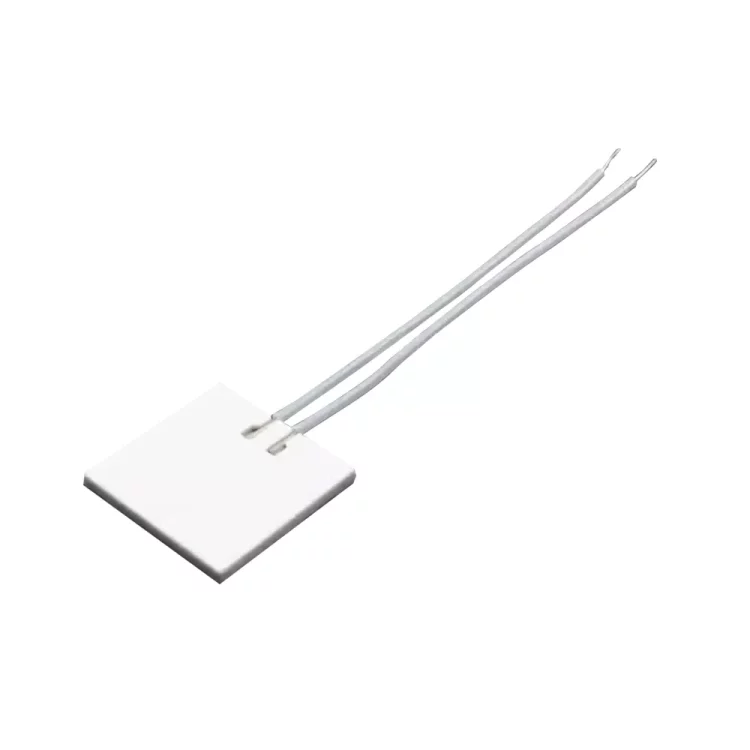

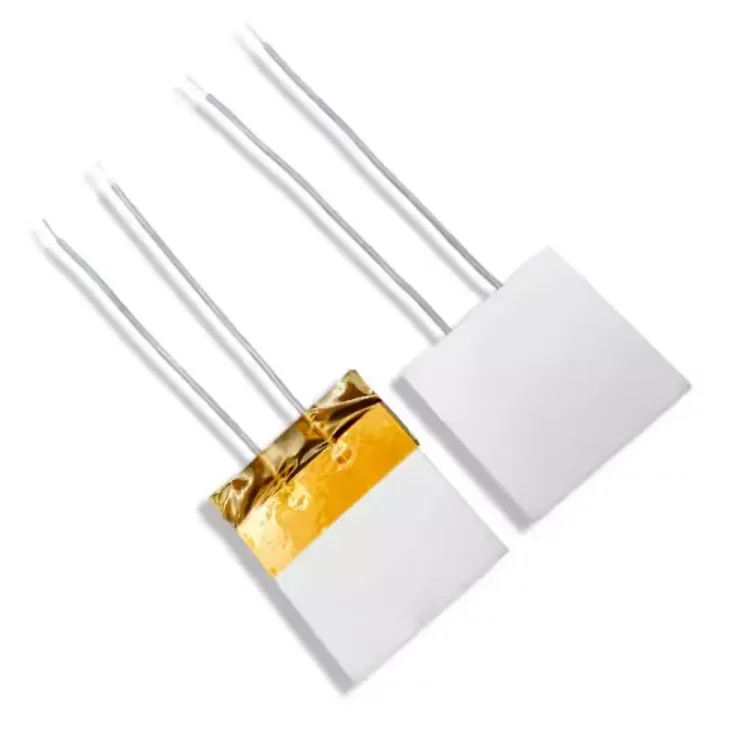

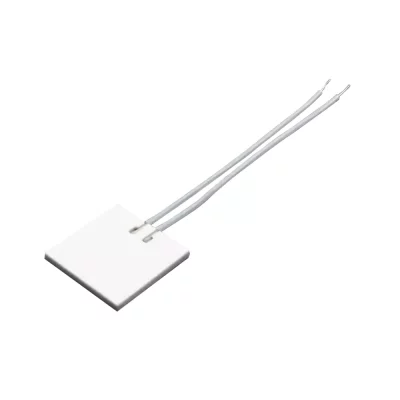

20*20 Miniature MCH Alumina Heating Element

GORGEOUS CERAMICS is an advanced high-tech enterprise integrating product development, production, and sales.

The 20mm*20mm miniature MCH alumina heating element is a new type of heating element produced by directly printing heating resistance material onto alumina green blank through multiple layers, undergoing a series of special processes, and finally firing at a high temperature of approximately 1600°C.

Especificações do produto

In addition to the standard specifications listed below, GORGEOUS CERAMICS also offers customized MCH solutions to meet your specific application needs.

Voltage, power, surface temperature, size, heating structure, and temperature can all be customized to your requirements. Our professional technical team can provide you with solutions tailored to your project needs.

20*20 Miniature MCH Alumina Heating Element Product Advantages

Rapid Heating Up

Enables your applications to heat up in seconds (reach stable operating temperature in just 10 seconds); Multiple power options are available, ensuring ample heat output even in small sizes; Fast thermal response allows for quick start-up and shutdown.

Significant Energy Savings

Compared to traditional PTC heaters, it boasts higher energy efficiency. For the same heating effect, our product can reduce energy consumption by approximately 20-30% or more, effectively minimizing heat loss.

Uniform and Precise Temperature Control

The heating circuit is embedded within the ceramic core, ensuring uniform heat distribution and effectively preventing localized overheating.

High Temperature and Chemical Corrosion Resistance

Resistant to high temperatures and corrosion, meeting RoHS requirements.

Applications of MCH Alumina Heating Elements

The 20×20mm miniature MCH alumina heating element is small in size and heats up quickly, helping you to control the temperature precisely. Specific applications are as follows:

1.Electronic cigarette heating elements

• CBD atomizer
• Herbal atomizer
• Heat-not-burn device
• Mini aromatherapy heater

2.Portable USB Heating Products

• USB Heated Coaster
• Car Thermostat Cup Stand

3.Miniature heating platform

• Laboratory sample preheating stage
• Slide heating stage

4.3D Printing Equipment

• Small Nozzle Auxiliary Heating
• Material Preheating Module

Why Choose GORGEOUS CERAMICS 20×20MCH Alumina Heating Element?

• The 20×20 heater is suitable for small cavity structures, and the heating element size can also be customized according to the actual space of your equipment.
• Suitable for low-voltage systems of 3.7V/5V/12V/24V/36/48V.
• The heater can integrate NTC temperature control. It heats up quickly, reaching operating temperature within 10 seconds.
• It is ideal for space-constrained embedded devices.
• Compared to other companies, our products offer stable performance and a 100% yield rate for standard products;
• Fast design and prototyping: saving costs and development time for customization;
• Trustworthy and reliable: long-term business and continuous cooperation;
• We can quickly correct product defects;
• Free standard samples are provided;

Product Precautions

1.The temperatures listed above are the surface temperatures of the heating element under dry-burning conditions at ambient temperature. If heating an object, consider the heat absorption and dissipation of the object being heated based on the provided dry-burning surface temperatures to select an appropriate power rating. It is recommended that the heating element not be operated for extended periods at its extreme temperature (around 500℃), as this can easily affect its lifespan. For higher power applications, it is recommended to use it in conjunction with a temperature control device!

2.The category “Temperature Control Use” indicates that this product has a high power rating and requires the user to use it with a temperature control device to ensure proper heat dissipation. Improper temperature control, poor heat dissipation, and installation issues may cause damage.

3.The power rating listed for the heating element is the static power, calculated based on the resistance at room temperature before power-on, and is also the maximum power at the rated voltage (to help users select a suitable power supply). During heating, the power changes with temperature. As temperature rises, resistance increases, and the power current decreases accordingly. This is a characteristic of the MCH series heating products, making them energy-saving and environmentally friendly products.
