Advantages of Ceramic Heating Elements for Instant Water Heating
- Fast heat-up
- 电绝缘
- Miniature/high power
- Excellent thermal performance
- Customizable temperature profile
- High insulation allows for direct contact with water, kerosene, and metal
- High reliability
- Excellent dielectric strength and electrical insulation
- Resistivity material, oxidation-resistant design, for extended service life

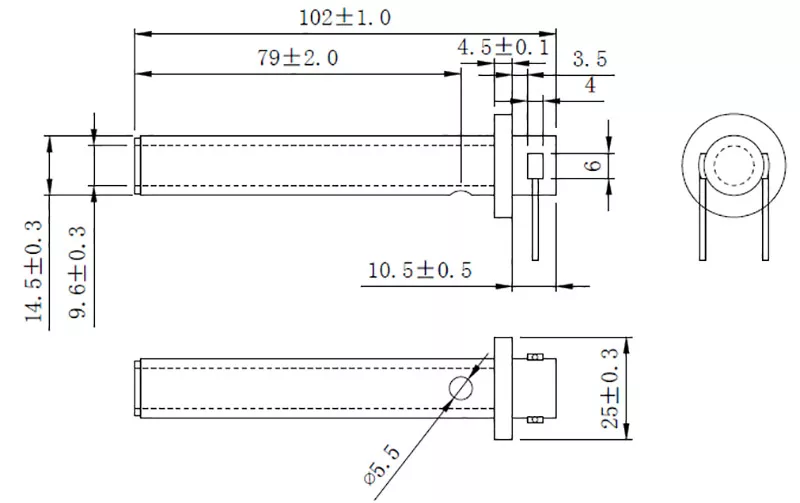

Ceramic Water Heater Element Details Structure Diagram
- 工作电压：220V
- 加热功率：3000W+/-
- 长度*外径*内径：102mm*14.5mm*9.6mm
- 陶瓷法兰：圆形
- Cable: Our open-type model or equivalent
Electrical Performance of Instant Ceramic Water Heater Elements
|
Test items |
Test environment |
标准 |
Test conditions and methods |
|
Resistance value |
Temperature 23℃±2℃ |
11-12.5Ω |
Then heat at 23℃±2℃for 0.5h. |
|
Test |
When electricity is supplied to the water, the outlet water temperature is 40±5℃ |
No damage to heater |
In water @AC220V 1 minute |
|
Power |
When electricity is supplied to the water, the outlet water temperature is 40±5℃ |
2800-3100W |
In water @AC220V |
|
介电强度 |
Temperature 23℃±3℃ |
The heater has no faults and the leakage current does not exceed 2mA. |
AC 2000V; fully immerse the heating area in water for 1 second. |
|
Leakage current |
Temperature: 23℃±3℃ Humidity: 65%±10% |
<0.5mA |
To test leakage, apply a current of 1.06 times the rated voltage. |
|
绝缘电阻 |
Temperature 23℃±3℃ Humidity 65%±10% |
>100MΩ |
DC 500V; heating area completely immersed in water. |
|
耐用性 |
Power on the water, the water temperature is 40±5°碳 |
No damage |
1. Power on continuously 5,000 times. 2. In water, power on for 10 seconds, then off for 10 seconds, and then cycle 100,000 times. |
