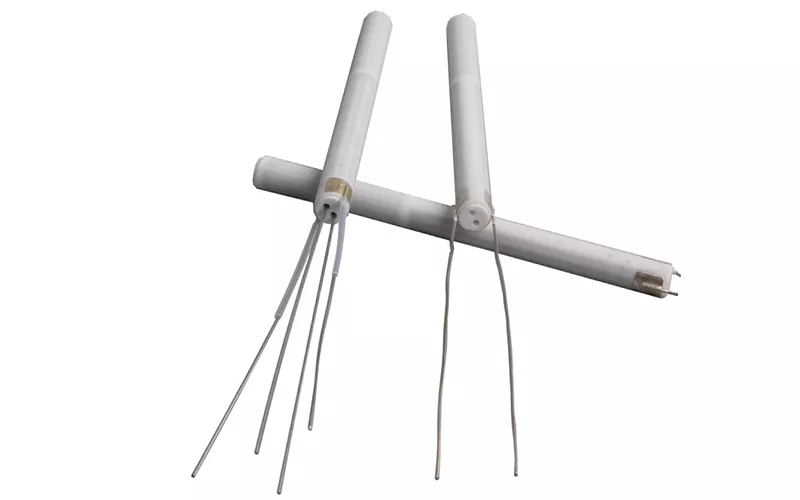

GORGEOUS CERAMIC’s 100W miniature ceramic heating rod with internal double holes is a new generation of high-efficiency heating elements. Compared to traditional PTC ceramic heaters, our products can save 20%–30% or more in energy consumption, and offer superior efficiency and stability.
Our products fully comply with the EU RoHS environmental directive and are free of harmful substances such as lead, cadmium, mercury, hexavalent chromium, and PBBS. Safety is guaranteed; the surface is free of electrical charge, allowing for safe handling while in operation.
As a high-performance heating element, our products combine reliability and safety, featuring rapid heating, small size, and light weight. Furthermore, they possess excellent insulation properties, with leakage current controlled to <0.5mA and no breakdown observed in a 4500V/1s voltage test.
Thermal Performance Table of 100W Miniature Ceramic Heating Rod
|
ltem |
단위 |
알루미나 히터 |
|
Max Working Temperature |
섭씨 |
1050 |
|
Working Temperature |
섭씨 |
1050 |
|
열전도도 |
W/(m·k) |
21 |
|
비열 |
J/(kg.k) |
0.78*103 |
|
Expansion |
/섭씨(40~800섭씨) |
0.78*10-6 |
|
Hardness (load 500g) |
평점 |
13.5 |
|
Flexural |
엠파 |
320 |
Parameters of 100W Miniature Double-Hole Ceramic Heating Element
|
Heater Name |
100W Ceramic Heating Element with Double Inner Hole |
|
Operating Voltage |
24V&120V |
|
Model |
E3035 |
|
Operating Power |
100W |
|
길이 |
30mm long * OD3.5mm or custom-made |
|
저항 |
Corresponding value |
|
Lead |
Nickel wire |
|
작동 온도 |
400~500섭씨 |
|
Insulating Sleeve |
고객 요구 사항에 따라 |
|
Heater Body |
Two small inner holes for thermocouple design |
