GGS’s 3D printer 陶瓷加热器 is a highly efficient, environmentally friendly, and energy-saving ceramic heating element that can replace alloy wire electronic components and PTC加热元件.
Compared to PTC and metal heaters, GGS’s ceramic heaters are more energy-efficient, safer, and more effective. Currently, our products are used in the automotive, medical, and semiconductor industries, as well as in 3D printers as innovative heating elements.

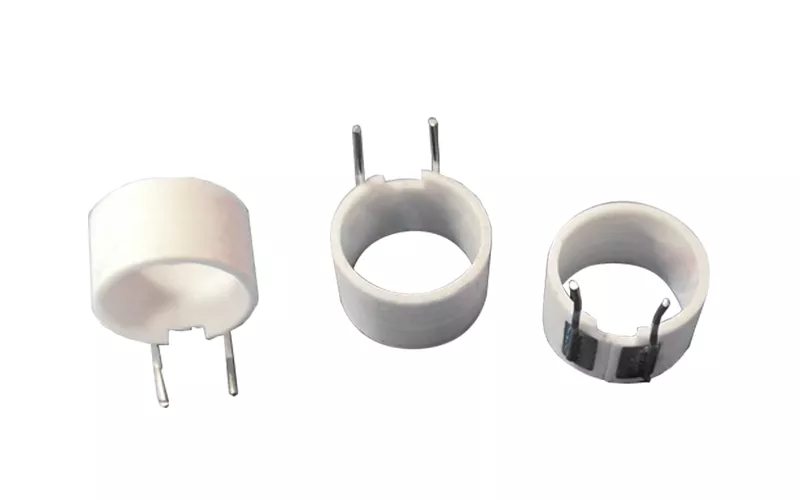

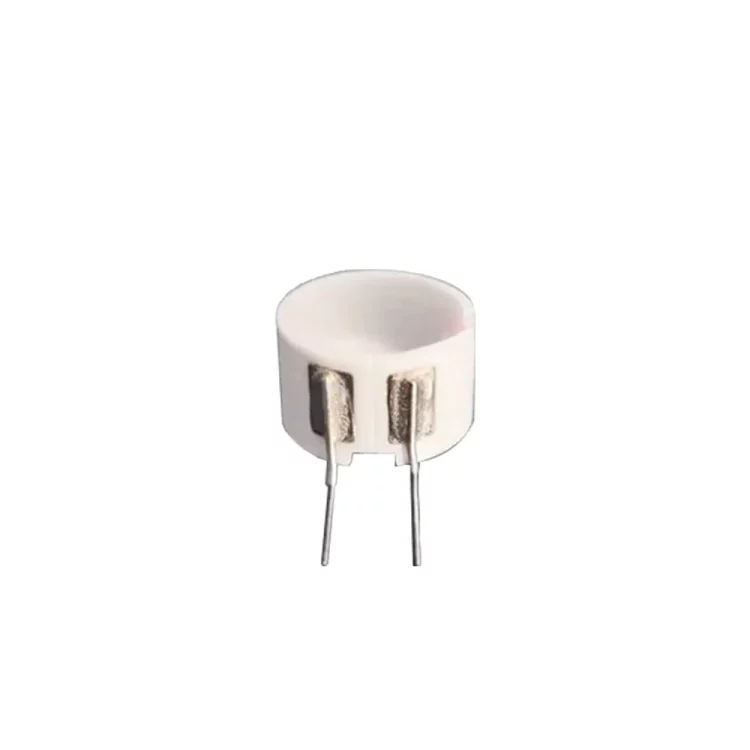

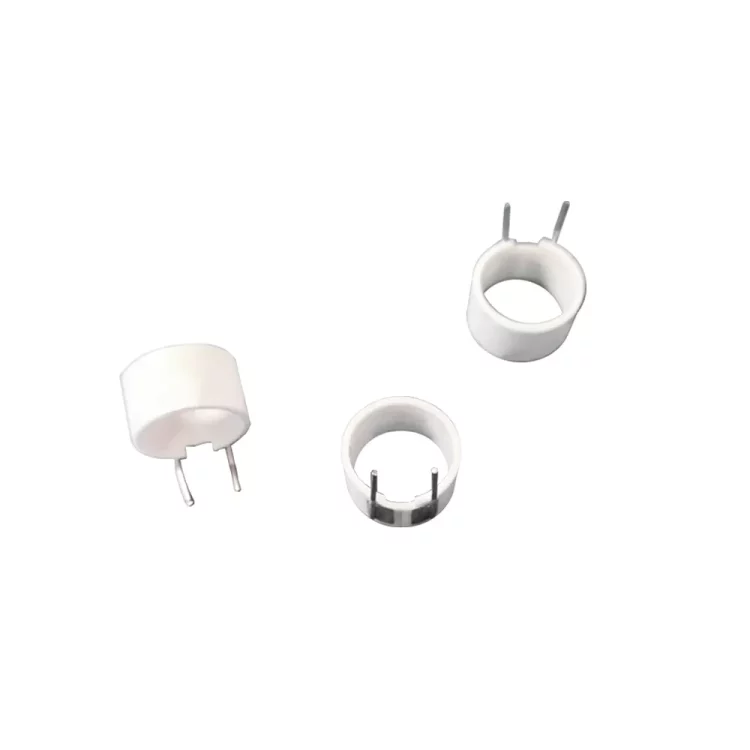

Our customizable ceramic heating rings are ideal in terms of power and size for 3D printer extruders such as the MK8, and wires can be added according to your requirements.
Resistance-temperature curve of ceramic heating element for 3D printer
GGS’s alumina ceramic heating tube gets very hot, reaching temperatures of 300°C to 600°C – we recommend using a thermistor or thermocouple during operation.
The product does not require a temperature controller, reaches 500°C in just 30 seconds, and consumes only 1A of power.
Our product is easy to clean and lead-free.
|
Resistance Temperature Curve |
|||||
|
Production Name |
Production Name |
尺寸 |
E075124TA (24V) |
反抗 |
13-15.8Ω |
|
仪器仪表 |
|
Room Temperature |
23±2℃ |
温度 range |
25℃-90℃ |
|
Date |
|
Recorder |
001 |
File No |
|
|
Temperature (℃) |
25 |
60 |
95 |
130 |
165 |
200 |
235 |
270 |
305 |
340 |
375 |
410 |
445 |
480 |
TCR |
|
反抗 |
14.00 |
14.73 |
15.41 |
16.10 |
16.78 |
17.47 |
18.16 |
18.84 |
19.53 |
20.21 |
20.90 |
21.59 |
22.27 |
22.96 |
0.001400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3D Printer Ceramic Heating Element Parameters
- Product Voltage: 12V & 24V
- Product Power: 40W
- Ceramic Material: Aluminum Oxide Ceramic
- Outer Diameter: 12.4mm (customizable)
- Inner Diameter: 11.00mm (customizable)
- Height: 7.5mm (customizable)
- Nickel Wire Length: 20mm
- Cable: Corresponding
