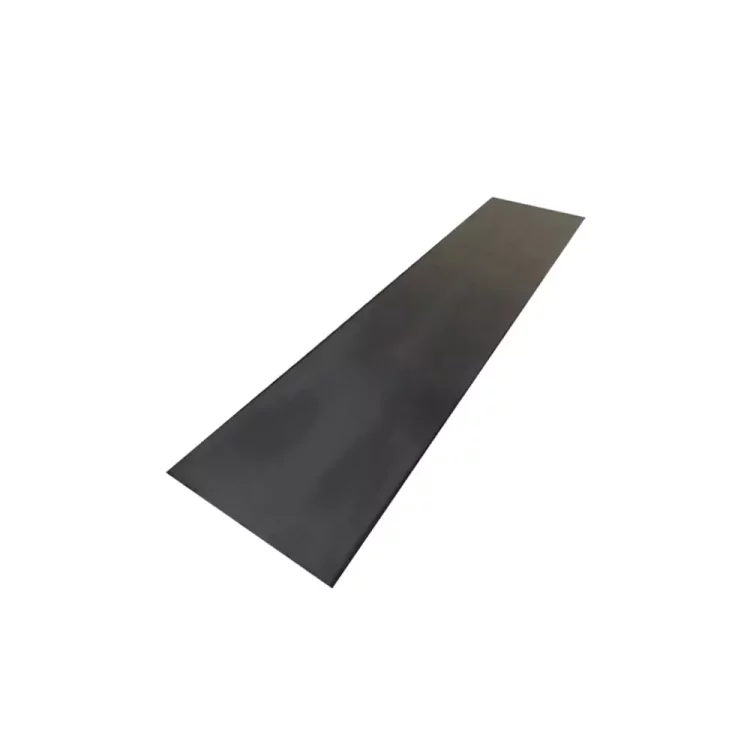

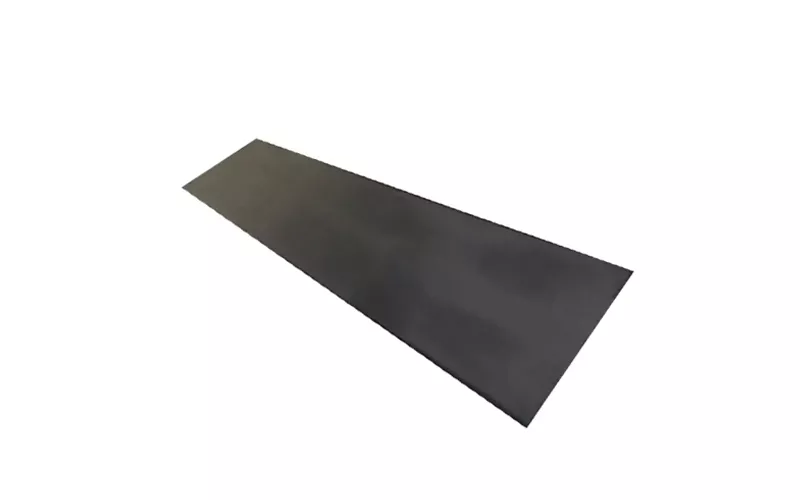

GORGEOUS CERAMICS (GGS Ceramic) silicon carbide heat radiant plates/vapor chambers are manufactured using isostatic pressing or extrusion molding and high-temperature sintering. They are used in thermal equipment and kilns for indirect heating of products, providing a uniform temperature field. Product specifications range from a thickness as thin as 2mm to a maximum size of 370*2000mm.
Delivery Time
Standard specifications and existing sizes of products can be inspected and shipped within 3-5 business days. The standard lead time for customized mass production is 3-4 weeks. For urgent replacement needs, we can activate a green channel for expedited production.
Professional Packaging and Transportation Protection
Inner Protection: After ultrasonic cleaning, our products are sealed in double-layer PE clean vacuum bags to isolate moisture and dust.
Surface Separators: EVA foam is used to completely separate products to prevent friction and scratches.
Advantages of silicon carbide heat radiation panels
High-efficiency heat dissipation
In high-temperature processes such as semiconductor LPCVD, photovoltaic cell diffusion, and cover glass hot bending, even minute temperature differences at the heat source can cause problems such as wafer warping and uneven film thickness.
GORGEOUS CERAMICS (GGS Ceramic)’s silicon carbide thermal radiant plates effectively address this issue, rapidly distributing locally concentrated heat across the entire plate with a millisecond-level response.
- Ultra-high thermal conductivity of 160W/(m·K): The product boasts a thermal conductivity of up to 160W/(m·K), eliminating localized hot spots and controlling the surface temperature difference to approximately ±1℃.
- High emissivity and efficient heat transfer: Our product’s infrared emissivity is approximately 0.90, significantly improving thermal radiation efficiency and reducing heating power consumption by 15%–20%.
Fast thermal response
In cyclical thermal equipment requiring frequent heating, holding, and cooling, such as semiconductor rapid heat processing, the inherent thermal inertia of the heat radiant plate is a major bottleneck for improving production efficiency.
GORGEOUS CERAMICS (GGS Ceramic) silicon carbide heat radiant plates possess excellent thermal conductivity and heat diffusion capabilities, enabling rapid heat transfer and diffusion across the entire plate surface, while simultaneously releasing heat quickly during cooling.
Compared to materials with low thermal conductivity, our silicon carbide heat radiant plates reduce heat retention within the plate, allowing equipment to reach target temperatures and respond to temperature changes more quickly.
Maintain stable plate surface geometric accuracy
Heat radiation plates are exposed to high temperatures for extended periods. If warping or deformation occurs, it alters the distance between the plate and the workpiece, causing changes in heat radiation distribution and affecting the stability of the entire temperature field.
GORGEOUS CERAMICS (GGS Ceramic) silicon carbide heat radiation plates are manufactured using a high-temperature sintering process with precise control over the plate structure and sintering shrinkage. Under long-term high-temperature loads of 1200℃-1350℃, the product’s creep rate is close to zero, and its high-temperature bending strength reaches 450MPa, effectively preventing plate dents and warping.
Часто задаваемые вопросы
What industries are suitable for Silicon Carbide Heat Radiation Plates?
Our silicon carbide heat radiation plates are mainly used in industries related to high-temperature heating and heat radiation, such as industrial furnaces, high-temperature sintering furnaces, and heat treatment equipment. They are especially suitable for industries that require rapid heating, uniform radiation, and long-term high-temperature operation.
What are the advantages of silicon carbide compared to metal or other ceramic radiant panels?
Compared to metals, silicon carbide has higher temperature resistance, superior oxidation and corrosion resistance, is less prone to deformation, and does not rust.
Compared to other common oxide ceramics, silicon carbide has higher thermal conductivity, better thermal radiation efficiency, and a longer service life.
What are the advantages of silicon carbide heat radiant panels compared to traditional quartz and graphite heat spreaders?
Silicon carbide has a thermal conductivity more than 100 times that of quartz, resulting in faster response times. Silicon carbide ceramics also have higher infrared emissivity, leading to overall energy savings of 15%–20%.
Will silicon carbide heat radiant panels crack under rapid heating and cooling cycles?
No. GORGEOUS CERAMICS (GGS Ceramic) silicon carbide heat radiant panels have excellent thermal conductivity and a low coefficient of thermal expansion, easily withstanding high-frequency thermal cycling shocks.
How are the temperature resistance limits and flatness control of silicon carbide heat radiant panels?
Silicon carbide heat radiant panels exhibit near-zero creep under long-term high-temperature loads of 1200℃-1350℃, with a high-temperature bending strength reaching 450 MPa.
Through double-sided precision grinding, the flatness of the panel surface can be controlled to <0.05mm, ensuring long-term stability of the radiation distance and geometry.
