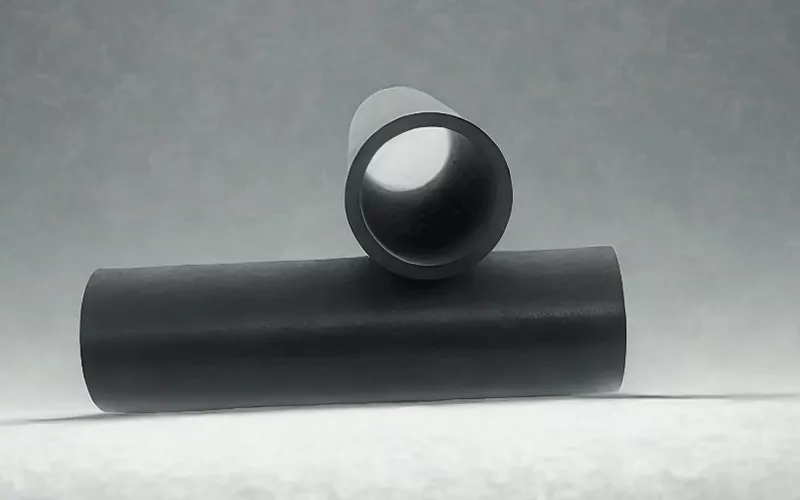

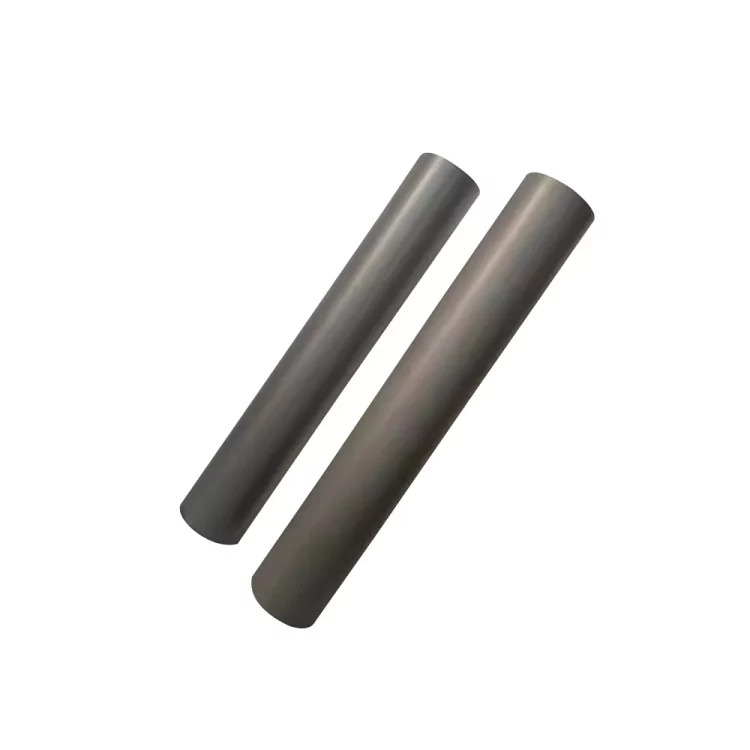

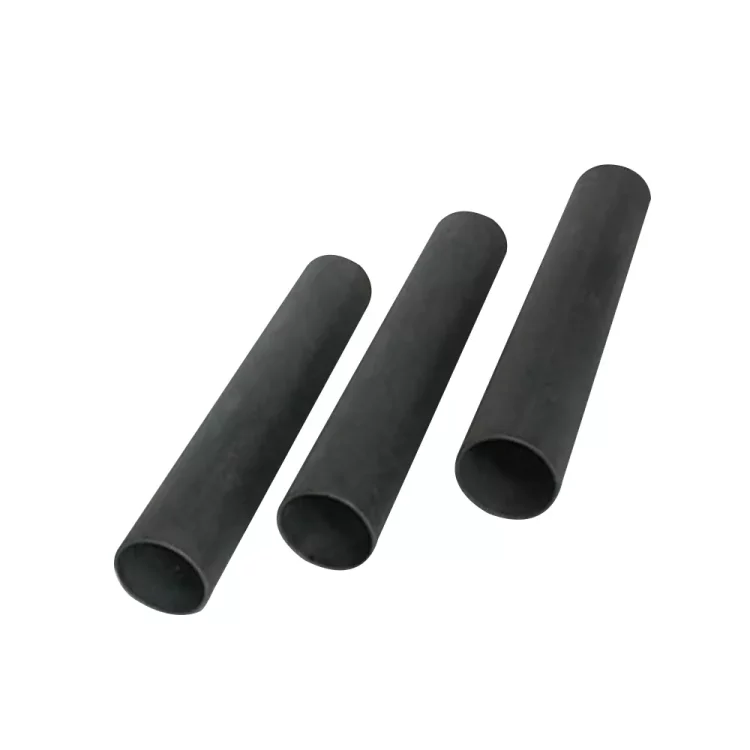

GORGEOUS CERAMICS (GGS) silicon carbide furnace tubes are primarily manufactured using isostatic pressing.
We can customize tubes according to your drawings. Through professional manufacturing techniques, we are able to produce furnace tubes with extremely tight tolerances. We can also add flanges, drill holes, cut grooves, etc., according to your requirements.
Applications of Silicon Carbide Furnace Tubes
The furnace tubes are heated externally while providing the necessary working environment internally. They can be used for furnace tubes, kiln furniture, vacuum furnace components, etc., and are particularly suitable for linings of high-temperature and ultra-high-temperature electric furnaces and kilns above 1400℃, such as tubular heating furnaces, sintering furnaces, reaction furnaces, and other heating furnace linings.
Features and Advantages of Silicon Carbide Furnace Tubes
GORGEOUS CERAMICS’ silicon carbide furnace tubes offer excellent thermal stability, usable up to 1700°C in air and up to 1950°C in nitrogen or argon protective atmospheres.
Our furnace tubes boast excellent density, achieving a gas impermeability of up to 31 MPa from room temperature to 1000°C, meeting vacuum requirements.
The silicon carbide raw materials we use are of extremely high purity, with a content greater than 99%, preventing material contamination.
GORGEOUS CERAMICS’ silicon carbide furnace tubes exhibit excellent corrosion resistance and wear resistance even at high temperatures, resulting in a long service life.
Due to their high thermal conductivity and excellent thermal shock resistance, our silicon carbide furnace tubes can adapt to rapid temperature changes.
Specifications
GORGEOUS CERAMICS (GGS) silicon carbide furnace tubes can be customized according to customer drawings. Typical products have an outer diameter up to 350mm and a length up to 2000mm. Larger furnace tubes can be manufactured using ceramic welding.
